Overview
The ReadyLift 69-1040 is a 4-inch SST lift kit for the 2009 to 2018 Ram 1500 4WD. It lifts the truck at both ends while keeping a slight rake for towing or hauling. It fits 2009 and 2010 Dodge Ram 1500 models and 2011 to 2018 Ram 1500 models in a wide range of versions, including Big Horn, Express, HFE, Laramie, Rebel, Tradesman HD and R/T.
The SST mounts sit on top of both the front and rear struts. A spring pre-load spacer limits droop and helps reach 4 inches of lift without increasing CV angles. The parts are CNC machined from billet aluminum, which is built to last the life of the vehicle. Urethane spacer kits can compress springs and deteriorate over time, which the billet design avoids.
Key features
- 4 inches of lift at the front and rear
- Smart Suspension Technology mounts on the front and rear struts
- Spring pre-load spacer to limit droop
- The lift does not increase CV angles.
- CNC machined billet aluminum construction
- Tires up to 35 inches in diameter.
Spring pre-load and droop
Droop is how far the suspension can drop when a wheel leaves the ground, and a pre-load spacer limits it so the springs stay seated. Limiting droop helps the lift hold its height over time and keeps the spring under control at full extension.
Rigid billet mounts can carry more vibration than softer spacers, so listen for new noise after the install. Check the mounts and bolts after the first few trail runs. Mounts also change how the rear block and front strut sit, so confirm the rake with a level check.
- Check bolts after the first few drives
- Watch for new vibration from the mounts
- Measure rake after the rear block is set
- Inspect the spring seat for wear at each service
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-1040 |
| Lift kit size | 4 inches |
| Front components | SST mounts and spring pre-load spacer |
| Rear lift method | Block and spacer |
| Construction | CNC machined billet aluminum |
| Tire size | 35 inches |
| Shocks | None included |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2009 and 2010 Dodge Ram 1500 models in the Laramie, SLT, ST, Sport, TRX and TRX4 versions, and 2011 to 2018 Ram 1500 models in many versions.
The kit is for 4WD trucks. The 2019 Ram 1500 is not covered. Confirm the drive type and trim before ordering.
Installation notes
The SST mounts and the spring pre-load spacer change the height at both ends, so the alignment should be checked after installation. The driveline angles should be checked once the rear block is set.

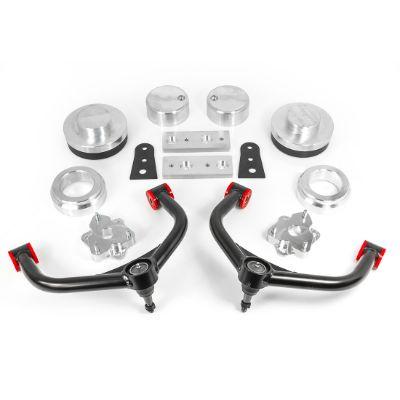

What’s included
The SST mounts and spring pre-load spacer change height at both ends, so check the alignment after installation. Check the driveline angles once the rear block is set.
