Overview
The ReadyLift 49-2767 is a 6.5-inch lift kit with SST3000 shocks for 2017 to 2019 Ford Super Duty 4WD trucks. The front rises a total of 6.5 inches. It fits 2017 to 2019 F-350 Super Duty models in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions. The kit is for trucks with a one-piece driveshaft, and tires up to 38 inches tall fit.
The kit includes custom wound coil springs, which ReadyLift says give a good ride while improving off-road driving. Radius arm drop brackets let the owner keep the factory radius arms and correct caster in the process. To lift the rear, ReadyLift includes OEM style cast iron rear lift blocks to bring the rear level with the front. A drop pitman arm, track bar bracket, sway bar end links and drive shaft spacer are included, and all hardware is supplied.
Key features
- 6.5 inches of front lift
- Custom wound front coil springs
- Radius arm drop brackets that keep the factory radius arms and correct caster
- OEM style cast iron rear lift blocks
- SST3000 shocks
- Drop pitman arm and track bar bracket
- Sway bar end links and drive shaft spacer
Coil springs and caster
Custom wound coil springs set the front height and ride, and they are matched to the radius arm drop brackets that keep the factory radius arms in use. Caster is part of that setup, since it affects steering return and straight-line stability. A front lift without caster correction can make the steering feel light or wander at speed.
The rear is raised with cast iron blocks to bring it level with the front. That changes rear suspension angles and driveline position, so a driveline check belongs after the install. Heavier tires and a larger front lift also load the drive components more, so inspect the driveshaft joints and transfer case mounts at each service.
- Check caster and alignment after installation
- Confirm driveshaft angles at finished height
- Inspect shock mounts after the first few drives
- Recheck coil spring seats and hardware after a few trail runs
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY49-2767 |
| Lift kit size | 6.5 inches |
| Front spring | Custom wound coil springs |
| Rear lift method | Block and spacer, OEM style cast iron |
| Shocks | SST3000 |
| Tire size | Up to 38 inches tall |
| Driveshaft | One-piece driveshaft |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2017 to 2019 F-350 Super Duty models in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
The kit is for F-250 trucks with a one-piece driveshaft, while the fit range names F-350 models. Confirm the model and the one-piece driveshaft before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The radius arm drop brackets keep the factory radius arms in use and correct caster, which ReadyLift says is needed with this lift. The custom coil springs and the rear blocks change ride height at both ends, so an alignment and a driveline angle check belong after installation.
What’s included

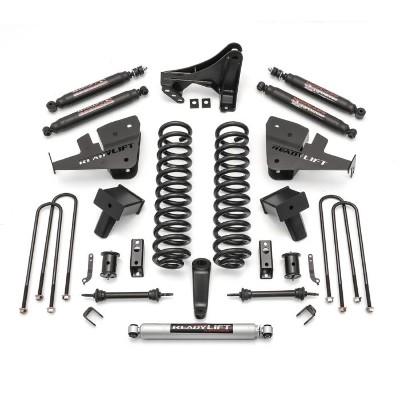

The kit includes the custom wound coil springs, radius arm drop brackets, OEM style cast iron rear lift blocks, SST3000 shocks, drop pitman arm, track bar bracket, sway bar end links and drive shaft spacer. All hardware is included.
