Overview
The ReadyLift 69-3030 is a 3-inch front and 2-inch rear SST lift kit for the 2020 and 2021 Chevrolet Silverado and GMC Sierra HD trucks. It fits Silverado 2500 HD and 3500 HD models, and Sierra 2500 HD and 3500 HD models in several versions. The kit allows a lifted stance all the way around and clears 35-inch tires.
The 2020 HD trucks use a revised torsion bar suspension, and this kit is engineered for it. The front lift is adjustable to 3 inches with forged torsion keys made for that height, which differ from the keys in the 66-3020 kit. Taller differential drop spacers, skid plate spacers, bump stops and rear shock extensions are included. The rear uses OE-style cast iron 2-inch blocks with longer U-bolts.
Key features
- 3 inches of adjustable front lift
- Forged torsion keys indexed for the 3-inch front lift
- Taller differential drop spacers and skid plate spacers
- Taller bump stops and rear shock extensions
- OE-style cast iron 2-inch rear lift blocks
- Longer U-bolts for the rear blocks
- Clearance for 35-inch tires
Heavy-duty torsion bar basics
Torsion bar suspension uses a twisted steel bar to hold the front end up, and the torsion key sets the height at which the bar works. Changing the key changes the preload, which is why the key and the height have to match. A mismatched key can leave the front sitting uneven or put extra stress on the mounts and the bar itself.
Heavy-duty trucks spend much of their life under load, so the torsion bar, mounts and bushings deserve a look at regular service intervals. Differential drop spacers change the driveline angle, and skid plate spacers keep the plate clear of the new height. Tow and payload needs should be checked against the finished setup before a long trip.
- Confirm the factory key part number before ordering
- Plan for a special tool before starting work
- Inspect torsion bar mounts at service intervals
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-3030 |
| Front lift | 3 inches, adjustable |
| Rear lift | 2 inches |
| Front components | Forged torsion keys, differential drop spacers, skid plate spacers |
| Rear components | OE-style cast iron blocks with longer U-bolts |
| Compatible factory torsion keys | OE #84461807 or #84634344 |
| Tire clearance | 35 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2020 to 2021 Chevrolet Silverado 2500 HD models in the Custom, High Country, LT, LTZ and WT versions, Silverado 3500 HD models in the High Country, LT, LTZ and WT versions, and GMC Sierra 2500 HD and 3500 HD models in the AT4, Base, Denali, SLE and SLT versions.
Model years outside 2020 and 2021 are not covered. The kit works with the two factory torsion key part numbers only, so check the truck’s keys before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installing the torsion keys requires the torsion key unloading tool, part 66-7816A, or a similar tool. The front and rear lift change suspension geometry, so an alignment and a driveline angle check belong after installation.

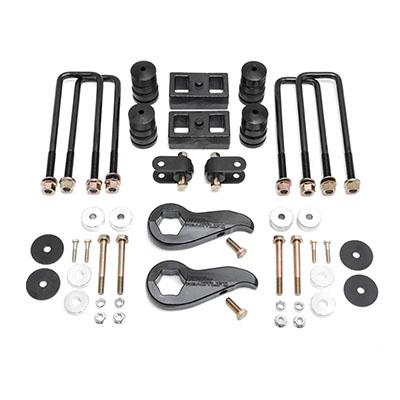

What’s included
The kit includes the forged torsion keys for the 3-inch front lift, the differential drop spacers, the skid plate spacers, the taller bump stops, the rear shock extensions, the 2-inch cast iron rear blocks and the longer U-bolts.
Not included: The ReadyLift torsion key unloading tool, which ReadyLift says is needed for installation.
