ReadyLift 4.5 Inch SST Lift Kit – 69-1242

ReadyLift

Shop Ram 2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch front and 2.5-inch rear lift for 2014–2019 Ram 2500 4WD trucks
  • Black e-coated steel front coil spring spacers that keep the factory front coil springs
  • Front radius arm drop brackets and replacement front track bar relocation bracket
  • Not for Power Wagon, snow prep or ambulance package trucks

Description

Overview

The ReadyLift 69-1242 is a 4.5-inch front and 2.5-inch rear SST lift kit for the Ram 2500 4WD. It is a bolt-on lift suited to negative offset wheels with tires up to 37 inches tall. It fits 2014 to 2019 Ram 2500 models in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT and Tradesman versions.

The front 4.5-inch spacers are made from black e-coated steel and keep the factory front coil spring in place. The rear lift is 2.5 inches. The kit keeps the factory ride and handling characteristics and needs no permanent modifications.

Key features

  • 4.5 inches of front lift from e-coated steel coil spring spacers
  • 2.5 inches of rear lift
  • Heavy-duty fabricated steel coil spring spacers
  • Front radius arm drop brackets
  • Replacement front track bar relocation bracket
  • Front and rear shock extensions and bump stop extensions
  • Longer sway bar end links and front sway bar frame side spacers

Spacers versus coil replacement

A spacer lift keeps the factory coil springs and raises the body by adding height above or below them. A replacement coil lift changes the spring rate and height together. Spacers are simpler to install and leave the original spring in service, but they do not change how the spring is loaded across the full range of travel.

Shock extensions and sway bar end links are often part of a spacer package because the suspension moves into a new range. Check the shock travel and the sway bar movement after installation, and inspect the spacers and their bolts at each service for signs of shifting or corrosion.

  • Compare spring rate and height before choosing
  • Check shock extensions for full travel
  • Inspect spacer bolts for corrosion
  • Recheck sway bar links at full travel

Specifications

Brand ReadyLift
Part number RDY69-1242
Front lift 4.5 inches
Rear lift 2.5 inches
Front spacer Black e-coated steel coil spring spacer
Rear lift method Block and spacer
Tire size Up to 37 inches tall
Drive type 4WD trucks.
Fitment type Direct fit

Vehicle fitment

It fits 2014 to 2019 Ram 2500 models in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT and Tradesman versions.

The kit is for 2014 to 2018 Ram 2500 HD trucks, so confirm the 2019 fit against your vehicle’s year, model and trim before ordering. Power Wagon, snow prep package and ambulance package trucks are excluded.

Installation notes

The radius arm drop brackets and the replacement track bar relocation bracket change front geometry, so a wheel alignment belongs after installation. The longer sway bar end links and the sway bar frame side spacers also need a check for clearance once the kit is in.

What’s included

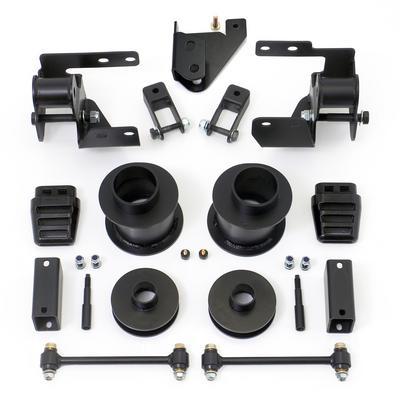

The kit includes the front and rear fabricated steel coil spring spacers, the front radius arm drop brackets, the replacement front track bar relocation bracket, the front and rear shock extensions, the bump stop extensions, the longer sway bar end links and the front sway bar frame side spacers.

SKU: RDY69-1242 Categories: ,

Fitment

VehicleYearsTrims
Ram 25002014–2019Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 69-1242 fit a 2019 Ram 2500?

The fit covers 2014 through 2019 Ram 2500 models, but the kit is made for 2014 to 2018 trucks. Confirm the 2019 fit against your vehicle's year, model and trim before ordering.

Can I use this kit on a Power Wagon?

No. Power Wagon trucks are excluded, along with snow prep package and ambulance package vehicles. Confirm the version and equipment of your truck before ordering.

What tire size does the kit allow?

The kit is suited to tires up to 37 inches tall and to negative offset wheels. Check clearance after installation.

Can spacers be used with the factory shocks?

Shock extensions are often included because shock length changes with a lift. Check that the shocks still have full travel at the new height and that the lines and wires are not stretched. Replace worn shocks at the same time to keep the ride consistent.
