Overview
The ReadyLift 69-19450 is a 4.5-inch front and 2.5-inch rear SST lift kit for the 2019 Ram 2500 HD 4WD. It supersedes the 69-1945 kit, which is being discontinued. It fits 2019 to 2021 Ram 2500 models in the Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star and Tradesman versions.
The kit is built from heavy-duty fabricated steel coil spring spacers that provide the front and rear lift. It includes front radius arm drop brackets, front and rear track bar relocation brackets, shock extensions, bump stop extensions, longer sway bar end links and front sway bar frame side spacers. It is suited to tires up to 37 inches tall on conservative negative offset wheels, with little to no trimming needed. The relocation brackets are part of the front and rear suspension geometry setup.
Key features
- 4.5 inches of front lift and 2.5 inches of rear lift
- Heavy-duty fabricated steel coil spring spacers
- Front radius arm drop brackets
- Front and rear track bar relocation brackets
- Front and rear shock extensions and bump stop extensions
- Longer sway bar end links
- Front sway bar frame side spacers
Choosing the right setup
Coil spring spacer kits change ride height without replacing the factory springs, which is a practical route for a heavy-duty diesel truck that tows or hauls. The added height affects the front radius arms, track bar and steering angles, so the brackets and relocation parts matter as much as the spacers themselves. Tire size matters too, since taller tires change gearing and add load to wheel bearings.
Choosing wheels and tires is part of the setup. Negative offset wheels push the tires outward and can rub at full steering lock, so check clearance before the first long drive. Heavier tires also add weight to the stock brakes and steering, so those components deserve a look.
- Check track bar and relocation bracket bolts after the first drive
- Confirm steering lock clearance with the new tires
- Review brake hose length at the new ride height
- Look at rear driveshaft angles after installation
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-19450 |
| Front lift | 4.5 inches |
| Rear lift | 2.5 inches |
| Tire clearance | Up to 37-inch tall tires |
| Wheel fit | Conservative negative offset wheels |
| Drive type | 4WD |
| Engine | Not for gas engine trucks. |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2019 to 2021 Ram 2500 models in the Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star and Tradesman versions.
Gas engine trucks, Power Wagon, snow prep package and ambulance package vehicles are not covered. The 2022 Ram 2500 is outside the fit range. Confirm your vehicle’s year, model, engine and trim before ordering.
Installation notes
The radius arm drop brackets and track bar relocation brackets change front geometry, so check wheel alignment after installation. Check the longer sway bar end links for clearance at full travel. The kit requires no permanent modifications.
What’s included

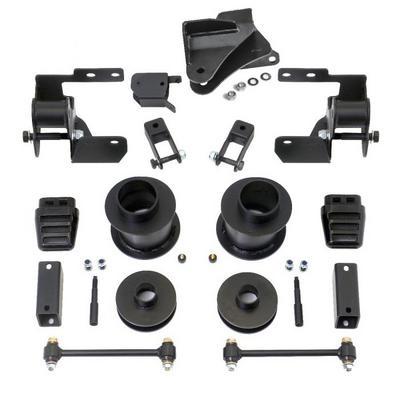

The kit includes the fabricated steel coil spring spacers, the front radius arm drop brackets, the front and rear track bar relocation brackets, the shock extensions, the bump stop extensions, the longer sway bar end links and the front sway bar frame side spacers.
