Overview

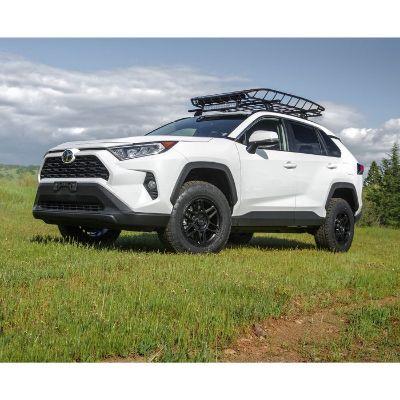

The ReadyLift 69-5920 is a 2-inch front and 1.5-inch rear SST lift kit for the 2019 Toyota RAV4, gasoline models only. It is not designed for RAV4 Hybrid models, which have not been tested with it. Fitment covers the Adventure, LE, Limited, XLE and XLE Premium versions.
The kit uses an offset spacer lift design developed for the CUV line. Fitted with a P245 tire, the front and rear lift give a taller stance and more ground clearance at the rockers. The offset spacer design keeps factory camber and caster.
Key features
- 2 inches of front lift and 1.5 inches of rear lift
- Offset spacer design developed for ReadyLift’s CUV line
- Bolt-on installation with no modifications.
- Tire fit up to 245/65-17 on 17×8 wheels with +38 mm offset
- Tested for compatibility with Toyota Safety Sense technologies
Ground clearance and tire choice
On a crossover, ground clearance is only part of the picture. A taller stance changes the center of gravity and the way the body rolls in corners, so the change is most noticeable on rough roads and at speed. Light off-road use benefits from extra clearance at the rockers, but cabin feel and braking distance can also shift slightly.
Tire choice matters because tire diameter sets the real clearance. A larger tire adds ground clearance but also changes gearing feel and adds weight to the steering. Keep the spare and jack in mind too, since a tire change may need a different jacking point after the lift. Recheck all clearances after installation.
- Check the wheel offset before buying new wheels
- Balance tires after any size change
- Watch for rubbing at the rear wheel well
- Inspect the strut mounts after the first drive
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-5920 |
| Front lift | 2 inches |
| Rear lift | 1.5 inches |
| Rear lift component | Spacer |
| Maximum tire size | 245/65-17 on 17×8 wheels, +38 mm offset |
| Engine | Gasoline only; hybrid not tested |
| Shocks | None included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2019 Toyota RAV4 in the Adventure, LE, Limited, XLE and XLE Premium versions.
RAV4 Hybrid models are not covered, and other RAV4 model years are not covered either. Compare your engine type and year against this kit before ordering.
Installation notes
The kit is bolt-on and requires no modifications. Tire and wheel fit may need minor trimming depending on tire brand and tread design. Plan a wheel alignment after installation. The kit installs faster than many other kits, and its fit has been tested on gasoline models only.

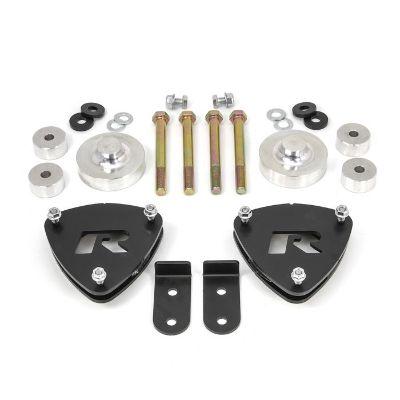

What’s included
The lift components are the front strut extensions and the rear spacers.
