Overview
The ReadyLift 44-3470 is a 7-inch lift kit for 2014 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks with factory aluminum front suspension. It works on trucks with or without front MagneRide. It fits Silverado 1500 Custom, High Country, LS, LT, LTZ, SSV and WT versions, and Sierra 1500 Base, Denali, SLE and SLT versions. The lift height range is 6 to 7 inches.
The kit keeps the factory turning radius and limits the track width increase to less than 0.5 inch per side. A clam-shell lower strut extension keeps the factory struts, standard or MagneRide, without needing strut rotation. It uses TCT lower bushings for a precise pivot point. The rear uses fabricated 3/16-inch plate steel blocks with bump stop landings, an offset pin design and angles set to keep the pinion angle correct. Extended length Bilstein rear shocks are included.
Key features
- 7-inch lift on aluminum front suspension trucks
- Clam-shell lower strut extensions that keep the factory struts
- TCT lower bushings
- Boxed steel front and rear cross members
- Full width front skid plate of 3/16-inch plate steel
- 1/4-inch boxed differential drop brackets with double gussets
- Fabricated 3/16-inch plate steel rear blocks with bump stop landings
- Extended length Bilstein rear shocks
Choosing the right setup
Aluminum front suspension trucks use a different upper structure than cast steel trucks, so the lift kit must match the factory design. A clam-shell lower strut extension keeps the original struts in place, which avoids strut rotation and keeps the factory damping setup. Lift height, track width and turning radius all depend on how the extension and the lower bushings are fitted.
Rear blocks and extended shocks work together. Check that the shock travel covers the new ride height at full droop and full compression, and inspect the mounts for rubbing after the first few drives. Tire size should also match the wheel offset to avoid rubbing on the strut or inner fender. Recheck the driveline angles after installation, since the differential drop changes them.
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY44-3470 |
| Lift kit size | 7 inches |
| Lift height range | 6 to 7 inches |
| Front suspension | Factory aluminum |
| Rear shocks | Bilstein 5100 Series, extended length |
| Rear blocks | 3/16-inch plate steel with bump stop landings |
| Tire fit | Up to 35 inches on a 9-inch wide wheel with -12 offset |
| Drive type | 2WD or 4WD, not AWD |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2014 to 2018 Chevrolet Silverado 1500 models in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, SLE and SLT versions.
It is for trucks with factory aluminum front suspension. Cast steel front suspension trucks need the separate 44-3471 kit. It is not for AWD trucks. Check that your truck’s year, model and trim match before ordering.
Installation notes
The clam-shell brackets and the differential drop change the front geometry and driveline angles, so an alignment and a driveline check belong after installation. The lift keeps the factory turning radius, which ReadyLift says is retained with this design.
What’s included

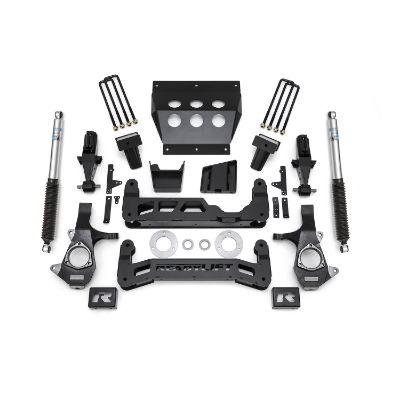

The kit includes the clam-shell lower strut extensions, the TCT lower bushings, the boxed steel cross members, the full width skid plate, the differential drop brackets, the fabricated rear blocks and the extended length Bilstein rear shocks.
