Overview

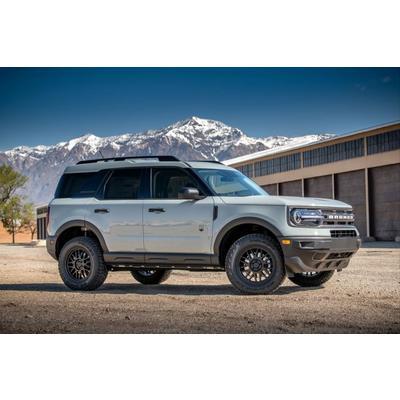

The ReadyLift 69-21150 is a 1.5-inch premium SST lift kit for the 2021 and 2022 Ford Bronco Sport, excluding Badlands and First Edition models. It provides 1.5 inches of front and rear lift and allows tires up to 245/65-17 on 17×8 wheels with +40 mm offset.
The front uses an offset-designed, fabricated heavy-duty steel plate top mount strut extension that keeps factory alignment geometry. The rear uses a strut spacer and sub-frame spacer combination that keeps factory rear suspension geometry. The installation is bolt-on with no permanent modifications.
Key features
- 1.5 inches of front and rear lift
- Offset top mount strut extensions in heavy-duty fabricated steel
- Rear strut spacer and sub-frame spacer combination
- Bolt-on installation with no permanent modifications
- Tire fit of 245/65-17 on 17×8 wheels with +40 mm offset
Checking tire clearance
Tire clearance on a lifted crossover depends on the tire’s overall diameter, its width, and how far the wheel sits under the fender. A tire that fits in a straight line can still touch the liner or the strut at full steering lock, so the check should include turning the wheels both ways. Tread and sidewall design can change clearance even at the same size.
Strut mounts and sub-frame spacers change the position of the front and rear suspension, so a clearance check should come after installation rather than before. Keep the tire and wheel combination tested for this kit in mind when comparing options. A different wheel offset moves the tire in or out and changes rubbing at the inner edge.
- Check clearance at full steering lock
- Watch for rubbing at the inner fender after the first drive
- Compare wheel offset before buying wheels
- Recheck sub-frame bolts after the first few trail runs
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-21150 |
| Front lift | 1.5 inches |
| Rear lift | 1.5 inches |
| Maximum tire size | 245/65-17 |
| Wheel | 17×8 with +40 mm offset |
| Shocks | None included |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2021 and 2022 Ford Bronco Sport models in the Base, Big Bend and Outer Banks versions.
The kit does not fit Badlands or First Edition models. The tire fit was tested with Falken Wildpeak A/T3W tires and Motegi Racing MR144 wheels, and minor trimming may be needed depending on tire brand and tread design. Confirm the year, model and trim against this kit before ordering.
Installation notes
A wheel alignment should be checked after the strut extensions are installed, even though the factory geometry is kept. Installation requires no cutting. Larger tires may need trimming, so keep to the sizes above and confirm the wheel offset before buying.
What’s included

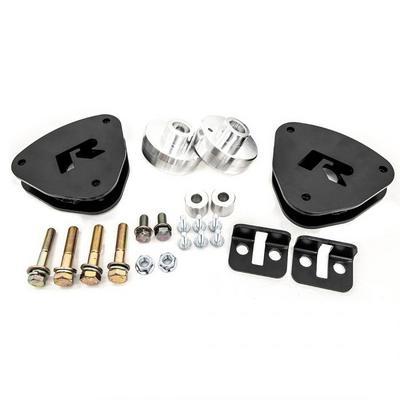

The kit includes the offset top mount strut extensions and the rear strut and sub-frame spacer combination.
