Overview

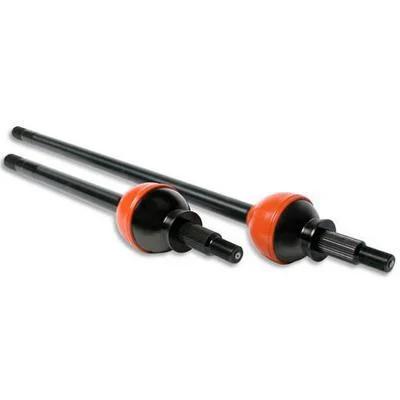

The RCV Axles Ultimate Dana 44 35-spline front CV axle set, part number RCVCVJ44-JK-35, is a constant velocity axle set for the front Dana 44. It is designed for Jeep JK Wranglers with a Dana 44 front axle, and it is aimed at the Rubicon.
The set replaces the stock Dana 44 on a Jeep JK with an aftermarket housing set up for a conventional locker. The shafts use the 35-spline ARB RD-147/157 carrier fitting, with a high-strength constant velocity design in place of U-joints.
The constant velocity design is built to hold up at straight and extreme angles, where U-joints are weakest. It is designed to remove U-joint binding.
Because the set is tied to a housing change, compare it with the axle housing, carrier and locker you run now before ordering. The set is described by axle and locker rather than by model year, so the axle is the detail to confirm.
Key features
- 35-spline front shafts for a conventional locker
- Constant velocity design in place of U-joint shafts
- Built for strength at straight and extreme angles
- Designed to remove U-joint binding
- Limited lifetime warranty from RCV
Before you swap to CV axles
CV axles use joints that allow a constant rate of turn at larger angles, which is why they are often chosen over U-joint shafts for articulation. Because the joints run in grease, a torn boot can leak grease out and let grit in, which shortens the joint’s life. Inspect the boots after each trip and address any damage before it spreads.
A shaft change on a Dana 44 is more than a swap of the shafts. The housing, carrier, locker and axle ratio all affect how the new shafts run, so review the whole front axle before buying. Make sure the carrier fitting matches the shafts, and plan to check alignment and driveline angles after installation so the joints are not pushed beyond their range.
- Inspect boots and clamps after trail use
- Confirm carrier and locker compatibility
- Check driveline angles after the swap
Specifications
| Brand | RCV Axles |
|---|---|
| Part number | RCVCVJ44-JK-35 |
| Axle type | Dana 44 JK |
| Axle location | Front |
| Shaft position | Driver and passenger side |
| Spline count | 35 splines |
| Design | Constant velocity |
| Warranty | Limited lifetime (RCV) |
Vehicle fitment
Fitment is set by axle and locker rather than by year and model. The set is tied to Jeep JK Wranglers with a Dana 44 front axle. Confirm the axle and housing before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan for the housing change as well as the shafts, since the set is built for an aftermarket housing with a conventional locker. Confirm your carrier before ordering, because these 35-spline shafts are designed for the ARB RD-147/157 carrier fitting.
