Overview

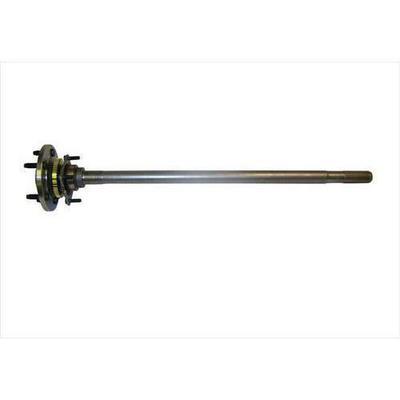

The Crown Automotive 5012873AA is a rear driver side axle shaft with Vari-Lok for the Dana 44, with 30 splines. It fits 1999–2004 Jeep Grand Cherokee (WJ) models in Laredo, Limited, Overland, Special Edition and Sport trim.
The shaft is in the rear left position with driver side location. Vari-Lok is part of the product name, so confirm the axle on your vehicle is equipped to match.
Key features
- Rear driver side shaft
- Dana 44 axle type
- 30 splines
- Vari-Lok version
Choosing between shaft types
Shaft choice on a Dana 44 depends on what is inside the differential housing. Axles built with a limited-slip or locking feature can use shaft assemblies that differ from open-carrier versions, so the axle type and spline count need to match the vehicle. Mixing shafts from different axle setups can cause a shaft to bind, fail to seat or wear the side gears.
When replacing a rear shaft, inspect the carrier bearing, the axle seal and the wheel bearings, since all are accessible during the job. Look for fluid on the inside of the rear wheel, a clunk when shifting between reverse and drive, and clicking on tight turns, which can signal joint wear. Keep the splines clean and lubricated with the lubricant your axle calls for.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5012873AA |
| Axle maker | Dana |
| Axle location | Rear |
| Axle shaft location | Driver side |
| Position | Rear left |
| Axle type | Dana 44 |
| Axle spline | 30 splines |
Vehicle fitment
It fits 1999–2004 Jeep Grand Cherokee (WJ) in Laredo, Limited, Overland, Special Edition and Sport trim.
The list covers the 1999–2004 WJ years only, so other Grand Cherokee generations are not on it.
Confirm the Vari-Lok version matches your vehicle’s rear axle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear driver side axle shaft.
