Overview

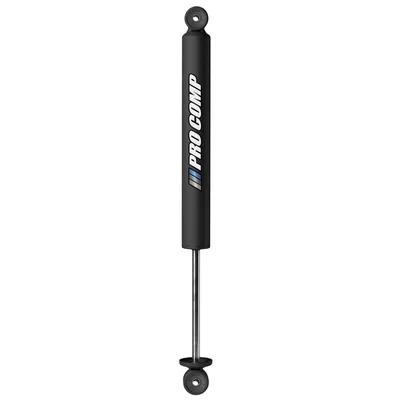

The Pro Comp PRO-X Twin Tube steering stabilizer, part number EXP219500B (model 219500B), is a single hydraulic steering stabilizer with loop mounts at both ends. It fits the 1986–1995 Toyota 4Runner and the 1986–1995 Toyota Pickup.
A steering stabilizer, also called a steering damper, slows side-to-side movement of the steering. This one reduces bump steer caused by oversized tires or rough roads, and reduces wheel vibration that can fatigue suspension parts. The twin tube design has a 5/8-inch chrome hardened piston rod and a Teflon rebound stop. It suits highway comfort and demanding off-road driving. It is sold individually, and the shock boot is sold separately. It improves handling across a range of road conditions and comes in extended lengths.
Key features
- Twin tube hydraulic design
- Intended to reduce bump steer and wheel vibration
- 5/8-inch chrome hardened shaft
- 1-3/8-inch nylon banded piston
- Teflon rebound stop
- Loop mounts at both ends, black powder coat finish
Choosing mounts and brackets
Loop-style ends depend on the brackets that hold them. Brackets are not included with this stabilizer, so plan the mounting points on both ends before ordering, and confirm that the brackets you choose match the loop at each end. A stabilizer that cannot seat fully at both mounts will bind or load the wrong parts.
The stabilizer works best when the steering linkage is in good shape. Worn tie rods, ball joints or a loose pitman arm let the stabilizer do more work than it was built for. Check the tie rod ends and steering box mounting before fitting the new unit, and replace any worn parts at the same time.
- Measure the mount spacing before ordering
- Use brackets sized to the loop ends
- Check the body for leaks after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXP219500B |
| Series | PRO-X hydraulic steering stabilizer |
| Single or dual | Single |
| Type | Stabilizer only |
| Extended length | 19.91 in |
| Collapsed length | 12.17 in |
| Travel length | 7.74 in |
| Body diameter | 2.36 in |
| Upper mount | Loop |
| Lower mount | Loop |
| Piston | 1-3/8 in nylon banded |
| Shaft | 5/8 in chrome hardened |
| Finish | Black powder coat |
| Shock boot | Not included, sold separately |
| Brackets | Not included |
Vehicle fitment
It fits the 1986–1995 Toyota 4Runner (DLX and SR5 trims) and the 1986–1995 Toyota Pickup (Base, Base Turbo, DLX, SR5 and SR5 Turbo trims).
Other Toyota generations and models are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Brackets are not included, so plan the mounting points for both loop ends before ordering.
What’s included
One steering stabilizer, sold individually.
Not included: Mounting brackets for the loop ends, and the shock boot, which is sold separately.
