Pro Comp PRO-X Twin Tube Shock Absorber – 914580B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1999–2003 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups
  • Also fits 2001–2003 Silverado and Sierra 1500 HD pickups
  • 15.6-inch extended length, 10.5-inch collapsed length
  • Stem upper mount, clevis lower mount
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

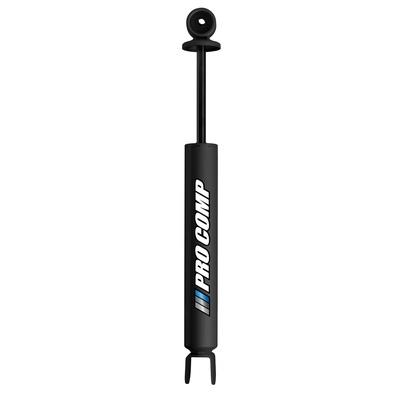

The Pro Comp 914580B is a PRO-X twin tube shock absorber for the 1999–2003 Chevrolet Silverado 1500 and GMC Sierra 1500, and for the 2001–2003 Silverado and Sierra 1500 HD. It has a 15.6-inch extended length and a 10.5-inch collapsed length.

The PRO-X is a general-purpose twin tube shock for trucks that spend most of their time on pavement with occasional off-road use. Pro Comp uses 10-stage velocity sensitive valving to handle different road surfaces, a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened shaft.

This version has a stem upper mount and a clevis lower mount, which is a different lower end from the loop-style mounts on several other PRO-X shocks. The body is black powder coated and nitrogen stabilized, and the optional boot is not included.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Clevis lower mount
  • Black powder-coated finish

Before you buy

Clevis lower mounts pin the shock through a fixed bracket, so the joint moves in one plane and the shock body stays aligned with the arm. That makes the bracket condition more important than on loop-style shocks, where a bushing can absorb small misalignments. Measure the bracket hole spacing and pin size before buying, and check the axle bracket for bends or enlarged holes.

A shock change is a good time to inspect the stem upper mount, the bump stops and the springs. Worn bump stops can let the axle contact the frame, and a sagging spring changes the working length of the shock. Replace shocks in matched pairs on the same axle so damping stays even across the truck.

  • Inspect the clevis pin and retaining hardware
  • Look for cracked or bent brackets
  • Check bump stops during the same job

Specifications

Brand Pro Comp Suspension
Part number 914580B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 15.6 in
Collapsed length 10.5 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened

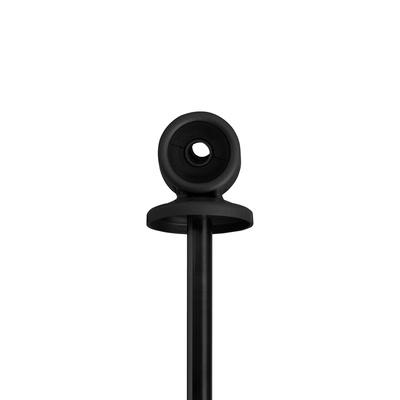

Upper mount Stem

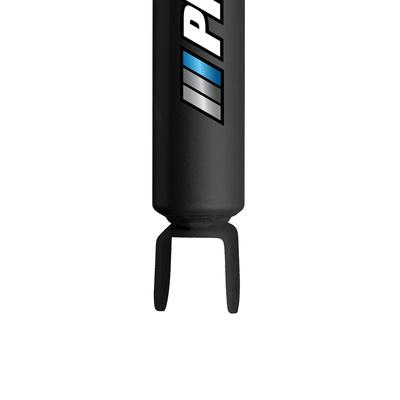

Lower mount Clevis
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 1999–2003 Chevrolet Silverado 1500 in the Base, LS, LT, SS and WT trims, the 2001–2003 Silverado 1500 HD in the LS and LT trims, the 1999–2003 GMC Sierra 1500 in several trims including the SLE, SLT and Denali, and the 2001–2003 Sierra 1500 HD in the SLE and SLT trims.

Silverado and Sierra models from 2004 and later are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This shock has a clevis lower mount and a stem upper mount, so it does not swap directly with loop-style shocks. Check the 15.6-inch extended length against your installed ride height and confirm the clevis lines up with the axle bracket.

What’s included

One twin tube shock with its clevis lower mount. The optional boot is not included.

Not included: the optional boot, plus any hardware needed for the mounts.

Fitment

VehicleYearsTrims
Chevrolet Silverado 15001999–2003Base, LS, LT, SS, WT
Chevrolet Silverado 1500 HD2001–2003LS, LT
GMC Sierra 15001999–2003Base, C3, Denali, HT, SL, SLE, SLT, WT
GMC Sierra 1500 HD2001–2003SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 914580B fit a 2002 Silverado 1500?

Yes. The 1999–2003 Silverado 1500 is covered in several trims, and 2002 falls inside that range. The 2001–2003 HD trucks are covered as well. Match the year, model and trim to your truck before ordering.

Does the 914580B have a clevis lower mount?

Yes. The lower mount is a clevis and the upper mount is a stem, so check the bracket on your axle before ordering a replacement.

What is the extended length of the 914580B?

The extended length is 15.6 inches and the collapsed length is 10.5 inches, measured as the shock's own dimensions. Compare both figures with your ride height before ordering.

Can a clevis lower mount shock be used on a loop-mount bracket?

Not without changing the lower bracket. A clevis end and a loop eye use different hardware, so the shock will not bolt directly to a loop bracket. Compare the mount on your truck before buying.
