Pro Comp Pro Runner 2.5 to 3.5 inch Lift Remote Reservoir Shock – ZXR2123

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Pro Runner 2.0 reservoir front shock, part ZXR2123, sold individually
  • Designed for 2.5 to 3.5 inch lift
  • Monotube with external reservoir and floating piston
  • Fits the 2007 to 2018 Jeep Wrangler JK and one 2018 Wrangler JL Unlimited Moab

Description

Overview

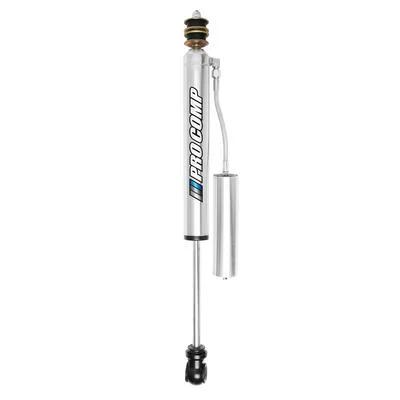

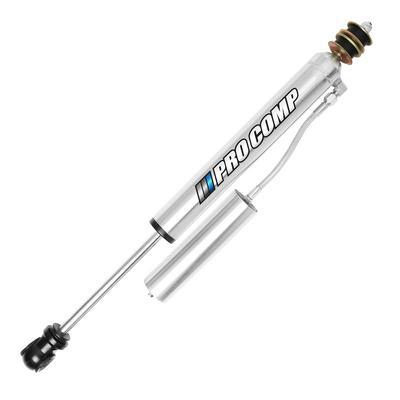

The Pro Comp Suspension ZXR2123 is a front Pro Runner 2.0 reservoir shock for a Jeep Wrangler with a 2.5 to 3.5 inch lift. It fits the 2007 to 2018 Wrangler JK and the 2018 Wrangler JL Unlimited Moab.

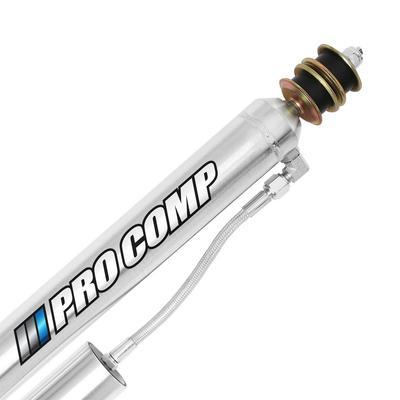

The monotube body has an external reservoir for extra fluid capacity. A floating piston separates the oil and gas, which Pro Comp says prevents cavitation and improves damping control. The valving is multi-stage and tuned for lifted JK models.

Key features

  • Monotube reservoir design for 2.5 to 3.5 inch lift
  • External reservoir with increased fluid capacity
  • Floating piston separates gas and fluid
  • Multi-stage valving tuned for lifted JK ride and handling
  • CNC billet aluminum clamp and lower mount

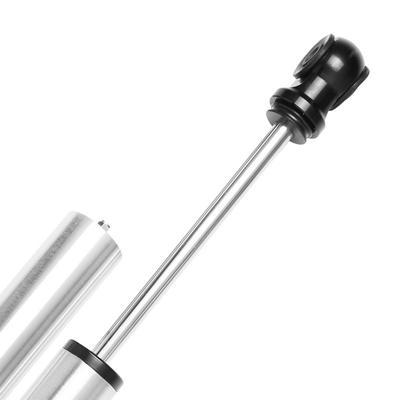

  • 18 mm nickel chromium plated shaft
  • Rubber bump stop on the shaft bottom

Choosing a reservoir shock

Remote reservoir shocks separate the fluid storage from the damper body, which gives the oil more room to cool under repeated hard use. On a lifted Jeep this matters most on long descents and in rocky terrain where the shock works continuously. The reservoir should be mounted with enough clearance from the steering, tie rod and frame so it does not contact anything as the axle articulates.

Because the reservoir sits in a separate line, check the hose or line fittings for seepage and keep them routed away from heat sources and moving parts. Pairing a reservoir shock with the correct bump stop and checking the upper and lower mounts after installation helps the suspension behave predictably over time.

  • Inspect the reservoir line for rub marks
  • Check clamp bolts after the first trail run
  • Look for an oil film on the shaft or reservoir body

Specifications

Brand Pro Comp Suspension
Part number EXPZXR2123
Shock series Pro Runner 2.0 Reservoir
Position Front
Shock type Monotube reservoir
Lift 2.5 to 3.5 in
Shaft 18 mm nickel chromium plated
Clamp and lower mount CNC billet aluminum
Finish Clear coated zinc brushed
Sold as Individually

Vehicle fitment

It fits the 2007 to 2018 Jeep Wrangler JK, including two-door and four-door models, and the 2018 Jeep Wrangler JL Unlimited Moab.

Confirm fit for your vehicle’s year, model and trim before ordering, especially for TJ, LJ and other JL models.

The shock is a front monotube with a 2.5 to 3.5 inch lift rating. Because its body uses a CNC billet aluminum clamp and lower mount, check that the clamp bolts are seated flat and that the reservoir line is routed away from the steering components. Confirm the rubber bump stop on the shaft does not contact the body at full compression.

Keep the external reservoir and its line free of rub points so the damper keeps a steady feel over long trails.

What’s included

One front Pro Runner reservoir shock under part number ZXR2123.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)
Jeep Wrangler (JL)2018Unlimited Moab (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the ZXR2123 a front shock?

Yes. It is a front shock for a 2.5 to 3.5 inch lift, sold individually, with an external reservoir and a monotube body.

Does it fit a 2012 Jeep Wrangler JK?

Yes. It fits the 2007 to 2018 Wrangler JK, which includes 2012 models in two-door and four-door bodies, including the Unlimited.

Why does a floating piston matter on this shock?

The floating piston separates the oil from the gas charge. This prevents cavitation and helps keep damping steady in rock gardens and rolling whoops.

Can a reservoir shock be used with other lift parts?

Yes, but confirm the reservoir line clears steering and frame parts once the lift is installed. Upgrades that change suspension angles may require checking the shock mounting position and bump stop clearance.
