Overview

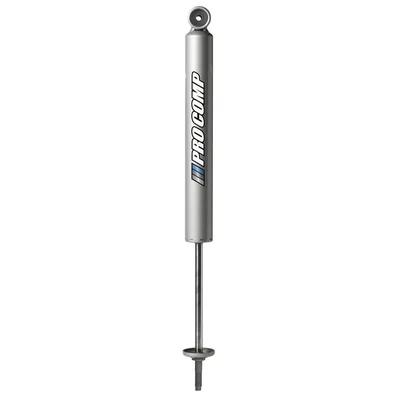

The Pro Comp Suspension PR2058 is a PRO-M rear monotube shock for the 2007 to 2021 Toyota Tundra. It has an extended length of 29.3 inches and a collapsed length of 18.2 inches, and it is sold individually.
The shock is nitrogen gas charged. A floating piston separates the oil from the gas, the multi-stage valving is set for each application, and a wiper seal helps prevent leaks.
Key features
- Rear monotube design
- Extended length 29.3 inches, collapsed length 18.2 inches
- Nitrogen gas charged with floating piston
- Multi-stage disc pack valving
- 14 mm chrome hardened shaft
- Wiper seal design
- Polyurethane shock boot included
Choosing the right setup
Rear shock length sets how the axle sits at rest and how much travel is left in each direction. On a Tundra, a shock that is too long or too short can change the ride height and cause the suspension to bottom out or run out of extension early. Matching the shock to the height of your truck keeps the stroke centered and the damping working across its range.
Before swapping, check the old shock for leaks, a bent shaft, or a boot that has torn. Replace the rear shocks as a pair so both sides respond the same way on rough ground. Re-check the mounting bolts after the first few drives, since new bushings can settle. Keep the lift height of the truck in mind when you order.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2058 |
| Shock series | PRO-M |
| Position | Rear |
| Extended length | 29.3 in |
| Collapsed length | 18.2 in |
| Lift | 4 in or 6 in. Measure your current truck height before ordering. |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2007 to 2021 Toyota Tundra in trims including 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail.
Measure the truck’s current height before ordering to choose between the 4 inch and 6 inch lift options. It is for the Tundra only, not the Tacoma or 4Runner. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 29.3 inch extended and 18.2 inch collapsed lengths with the rear shock being removed, since length sets the rear ride height on a Tundra. Measure the truck’s current height before choosing this shock. Check the mount fit against the factory brackets, and confirm the boot seats fully on the shaft.
Check the rear travel clearance once the shock is in place, especially if the truck has been lifted. The mounts should seat square, and the shock body should clear the frame and spare tire carrier at full compression.
Confirm the rear shock clears the frame and the spring perch at full droop, and check that the mounts are tight in the factory brackets.
What’s included
One PRO-M rear monotube shock with polyurethane boot under part number EXPPR2058.
