Overview

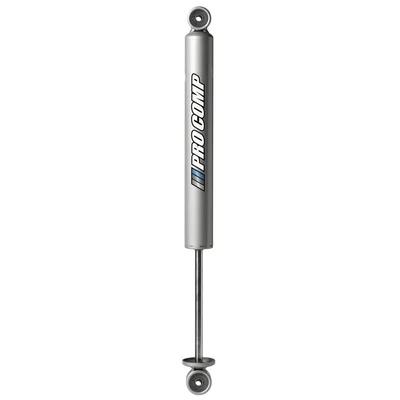

The Pro Comp Suspension PR2022 is a PRO-M front monotube shock for Ford F-250 and F-350 Super Duty trucks from 2005 to 2016, with 0 to 2.5 inches of lift. It is sold individually.
The shock is nitrogen gas charged with a floating piston that separates oil from the gas. Its shock body is larger for more oil capacity, and the multi-stage valving is vehicle specific.
Key features
- Front monotube design for 0 to 2.5 inches of lift
- Extended length 21.1 inches, collapsed length 14.2 inches
- Nitrogen gas charged with floating piston
- Multi-stage disc pack valving
- 14 mm chrome hardened shaft
- Polyurethane shock boot included
Super Duty load and handling
A Super Duty carries more weight over the front axle than a half ton, so the front shocks control more mass during braking, towing and rough-road driving. Under heavier loads the damper works harder through its valving, which makes steady, consistent damping important for steering stability. Choosing a unit built for a larger truck class helps the suspension stay controlled when the bed is loaded.
Front-end components on these trucks, including the tie rod ends, ball joints and control arm bushings, are often inspected together with the shock. Worn parts can make a new damper feel harsh or vague, so checking them during the same job saves a second round of work. Keep the boot clean and inspect the shaft for pitting after towing trips or off-road use.
- Inspect tie rod ends during the same job
- Check bump stops for cracking
- Confirm the spring is not sagging
- Re-check lug nut torque after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2022 |
| Shock series | PRO-M |
| Position | Front |
| Extended length | 21.1 in |
| Collapsed length | 14.2 in |
| Upper mount | Stem |
| Lower mount | Loop |
| Lift | 0 to 2.5 in |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2005 to 2016 Ford F-250 Super Duty and F-350 Super Duty, in XL, XLT, Lariat, King Ranch, FX4 and Platinum trims.
Confirm fit for your vehicle’s year, model and trim before ordering, including F-450 and F-550 applications and 2017 and later Super Duty trucks.
Installation notes
A front shock on a Super Duty supports a heavier load than a half ton, so the 21.1 inch extended and 14.2 inch collapsed lengths should be compared with the original unit before installation. The stem top must match the factory upper mount, and the lower loop should line up with the axle bracket. Check for clearance at full compression, and confirm the truck’s lift stays within the 2.5 inch range.
A Super Duty front suspension carries more weight than a half ton, so check the stem top and loop mounts for tight, square fit after the first drive. Confirm the shock body clears the frame and the front spring through the full range of travel, and that the boot is seated on the shaft.
On a Super Duty, confirm the front shock is clear of the steering components and the front bumper brackets at full lock.
What’s included
One PRO-M front monotube shock with polyurethane boot under part number EXPPR2022.
