Overview

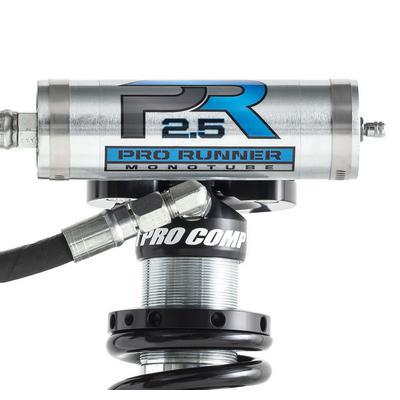

The Pro Comp Suspension ZXRR255003 is a passenger side front coilover shock with a remote reservoir, made for the 2005 to 2019 Ford F-250 and F-350 Super Duty. It raises the front suspension by 3 to 4 inches.

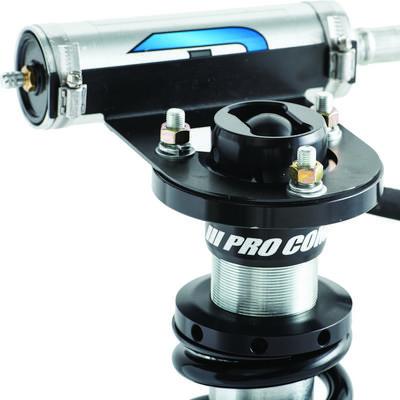

The shock is a hand assembled, adjustable monotube coilover with an oversized 2.5-inch zinc plated body. The larger body holds more oil, which helps it run cooler. The upper and lower mounts are heavy duty spherical bearings made from Teflon steel alloy.
Key features
- Adjustable monotube coilover design
- Raises the front suspension 3 to 4 inches
- Oversized 2.5-inch zinc plated body
- Heavy duty spherical bearing upper and lower mounts
- Nitrogen gas charged to limit cavitation
- External reservoir for additional fluid capacity
- Multi-stage valving tuned for the vehicle
Alignment after a front lift
Raising the front by this much changes caster, camber and toe, so an alignment should be done after the coilover is installed and the height is set. Steering geometry is the reason to measure first. Record the adjuster setting before the truck is driven so the ride height can be returned to if needed.
The remote reservoir has to stay clear of the front tire and the steering linkage at full lock. Route the hose so it cannot chafe on the frame or the fender edge, and secure the reservoir with its own bracket. Check the spherical bearings for smooth movement during the first few service checks, since binding bearings cause uneven damping and tire wear.
- Check caster and camber after installation
- Inspect hose routing at full lock
- Re-torque mounts after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZXRR255003 |
| Shock series | Black Series 2.5 coilover |
| Body diameter | 2.5 in |
| Position | Front, passenger side |
| Shock type | Adjustable monotube coilover with reservoir |
| Lift | 3 to 4 in front |
| Charge | Gas charged |
Vehicle fitment
It fits the 2005 to 2019 Ford F-250 Super Duty and the 2005 to 2019 Ford F-350 Super Duty, in several trims.
Fit is limited to the 2005 to 2019 models named above. Match your truck’s year, model and trim to this fit before ordering.
Installation notes
Because this coilover raises the front by 3 to 4 inches, the alignment, the steering geometry and the driveline angles should be checked after installation. The remote reservoir needs its own mounting spot and a clear hose route. The adjustable design means the ride height can be set, so record the setting before the truck is driven. Confirm the passenger side position before the shock is mounted.
The reservoir is external and needs a clear mounting spot and hose route. It must not rub against the front tire at full lock. The spherical bearings should move freely, so check them before the coilover is torqued into place.
What’s included
One passenger side front coilover shock with remote reservoir under part number ZXRR255003.
