Overview

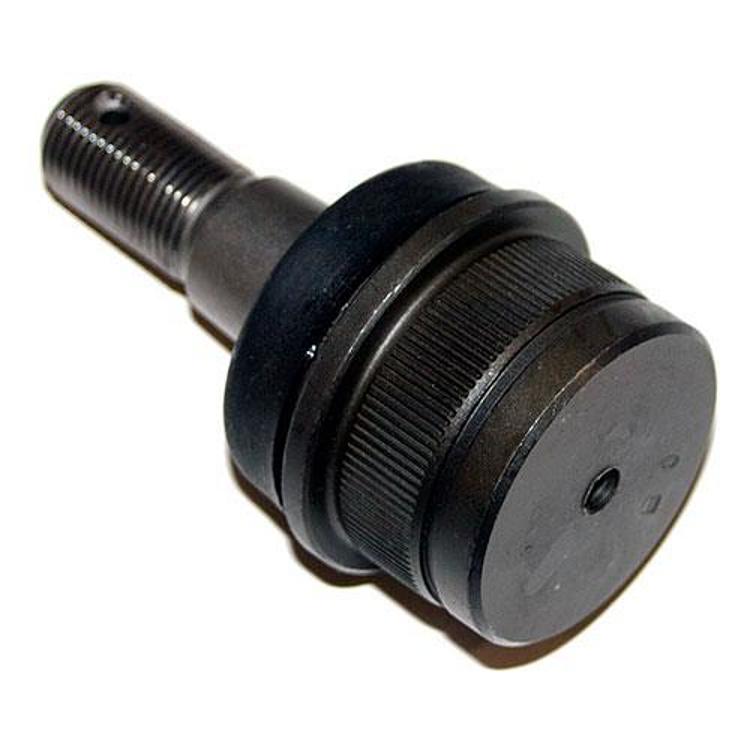

The Omix-ADA 18036.02 is a front ball joint kit for the Dana 30 axle, with upper and lower ball joints and hardware. It is made for Dana 30 Reverse and Dana 30 TJ axle types.
Omix-ADA offers its ball joints as original equipment replacements with a limited five year warranty. The kit is lubeable.
Key features
- Upper and lower ball joints included
- Hardware included with the kit
- Lubeable joints
- Front axle position
Choosing between ball joint kits
A front ball joint kit is one of the more common steering parts replaced on Dana 30 axles, often alongside tie rod ends and the drag link. Upper and lower joints work together to carry load and allow the knuckle to pivot, so replacing both at once keeps the wear level even. Compare the joint type and included hardware before buying, since these change how the kit installs.
Lubeable joints can be greased on the vehicle, which makes periodic service easier than with sealed joints. Check the boots and grease fittings during each service, and replace the boots if they tear. Because the kit is for front steering, an alignment check after installation helps protect the tires and steering feel.
- Replace tie rod ends if they show play at the same time
- Grease the joints after install and at regular intervals
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 18036.02 |
| UPC | 804314060060 |
| Position | Front |
| Axle types | Dana 30 Reverse, Dana 30 TJ |
| Joint type | Ball joint kit, upper and lower |
| Lubeable | Yes |
| Warranty | Limited five year warranty |
Vehicle fitment
Fit is set by the axle type, and vehicle years and models are unknown from this kit.
The Dana 30 TJ axle type is named here as an axle, not a vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Ball joints are steering components that change front end geometry, so have the alignment checked after replacing them. Use the hardware included with the kit as supplied.
What’s included

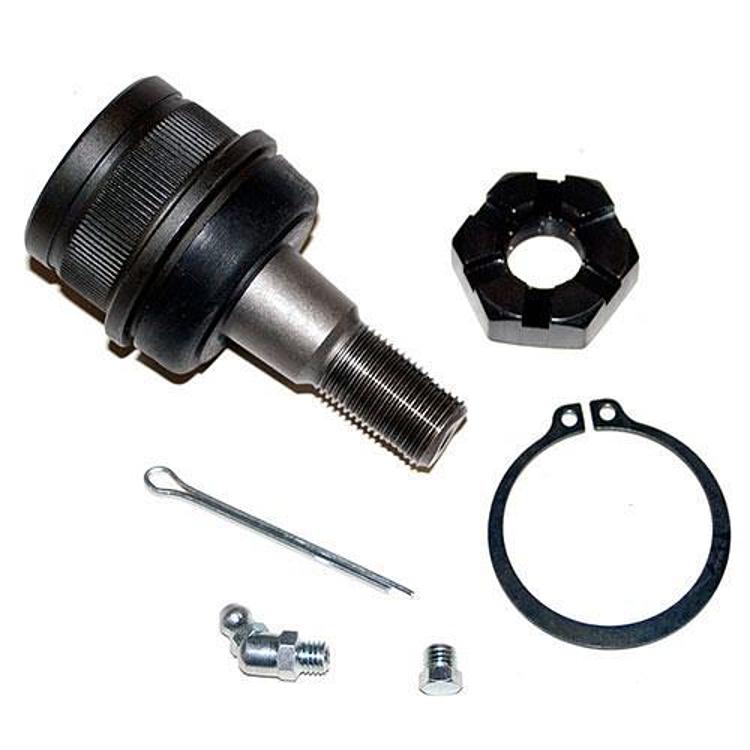

The upper and lower ball joints come with their hardware.
