Overview
The G2 Axle and Gear 26-2041 is a Toyota king pin rebuild kit for the front 8 inch Toyota axle. It collects the seals, retainer rings, bearings, races, gaskets and shims that a king pin rebuild calls for, and it services both the driver and passenger sides.
Fit is described by axle, not by year or model. The kit is for Toyota 8 inch front axles, so confirm that your axle matches before choosing it.
Key features
- Felt seals and steel retainer rings
- Upper and lower bearing and race sets
- Locking hub gaskets and a knuckle shim kit
- Services both driver and passenger side
Rebuild planning
Shim selection sets the preload and clearance between the knuckle and the axle housing, so measurements should be taken before the old shims come out. Keep the original shim stack for reference, and note where each piece came from so reassembly is straightforward. Worn king pin bores or pitted knuckle faces can make a fresh kit feel loose even when the parts are correct, so inspect those surfaces before assembly.
Felt seals and retainer rings are often replaced together, since a leak at one seal usually means the others are aging too. Bearings and races should be replaced as matched sets, and locking hub gaskets should seat on clean, flat faces. Lubricate bearings as they are installed and fill the knuckle with the lubricant the axle calls for.
- Keep original shims in order
- Replace seals and retainer rings together
- Clean knuckle faces before assembly
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 26-2041 |
| UPC | 631410095289 |
| Axle location | Front |
| Axle type | Toyota 8 inches |
| Sides serviced | Driver and passenger |
Vehicle fitment
It is made for Toyota 8 inch front axles. Confirm fit for your vehicle’s year, model and trim before ordering.
Rear axles and other axle types are not covered by the Toyota 8 inch front designation. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A king pin rebuild means pulling the knuckle and replacing bearings, seals and shims, and shim choice affects the knuckle fit. Have an axle shop experienced with Toyota 8 inch front ends handle the setup.
What’s included

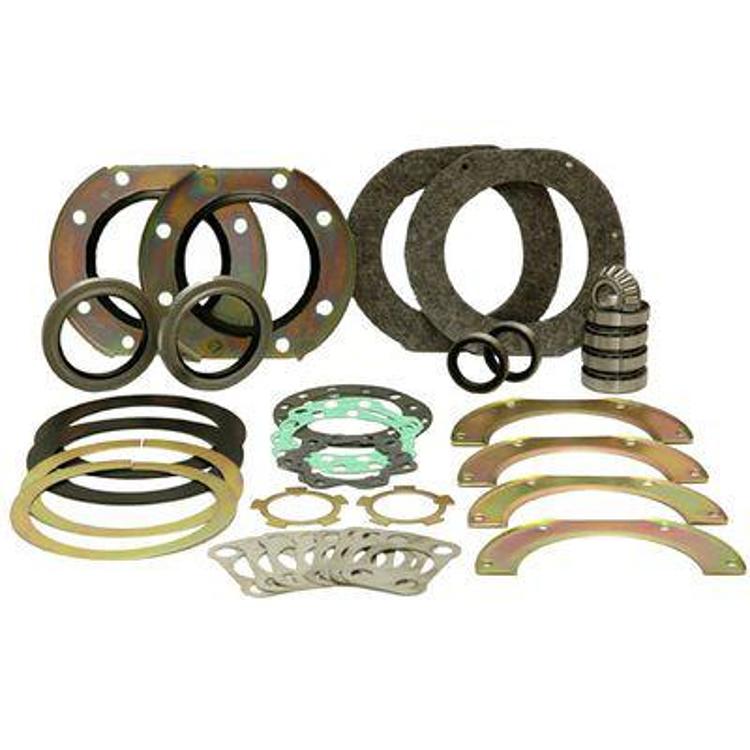

Felt seals, steel retainer rings, an upper bearing and race, a lower bearing and race, locking hub gaskets and a knuckle shim kit.
Not included: The knuckle and axle housing are not part of this kit.
