Overview

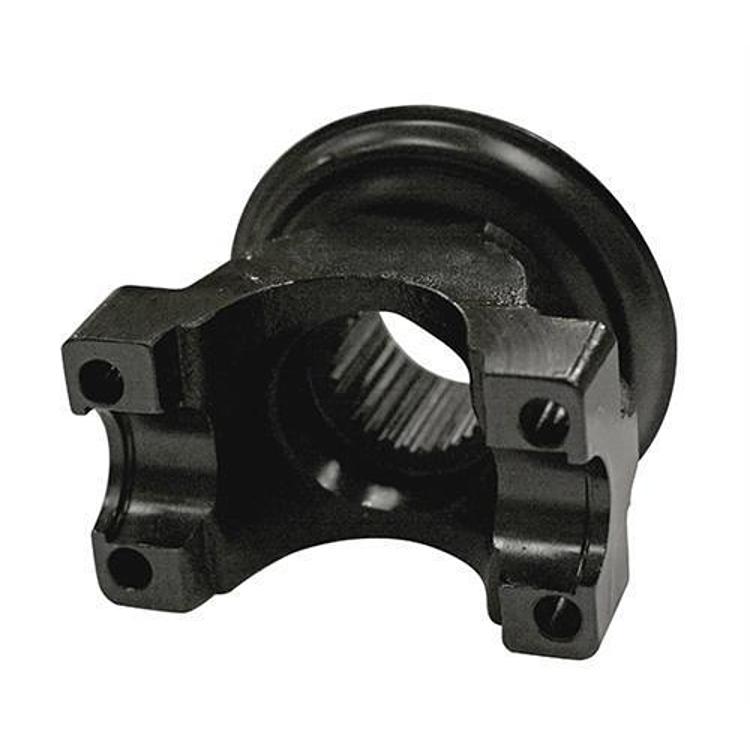

The G2 Axle and Gear 1330 Series pinion yoke, part 90-2013-33U, is a forged steel yoke for Ford 8.8 inch rear axles that use a 1330 Series U-joint. It is built for U-bolt style mounting, which G2 says is preferred by racers and off-road drivers.
G2 Axle and Gear makes pinion flanges and yokes for a range of applications. This model is made for the 1330 Series U-joint and is designed to work with the D/S3-94-58X U-bolt kit. Hardware is not included.
Key features
- Precision forged steel construction for strength
- Designed for 1330 Series U-joints
- Built for U-bolt style mounting hardware
- Compatible with the D/S3-94-58X U-bolt kit
- Hardware not included
Ford 8.8 pinion setup
The Ford 8.8 inch rear axle is common in many vehicles, and its pinion yoke is the link between the driveshaft and the gear set. Yoke wear shows up as clunking, vibration or play at the U-joint, and it can also damage the pinion seal surface if the yoke runs out of true. When replacing the yoke, check the pinion shaft threads and splines for wear first, because they determine how well the nut holds torque.
Before tightening the pinion nut, confirm the yoke is seated on the shaft and that the pinion preload is set correctly. A preload that is too light allows the pinion to move, and one that is too heavy accelerates bearing wear. Because this yoke uses U-bolt mounting, verify the U-bolt kit and joint series match before assembly, and recheck the nut after the first few drives.
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Model number (per title) | 90-2013-33U |
| UPC | 631410122909 |
| Material | Precision forged steel |
| Axle type | Ford 8.8 inch rear |
| U-joint series | 1330 Series |
| Mounting | U-bolt style |
| Included hardware | None |
Vehicle fitment
This yoke is for the Ford 8.8 inch rear axle. Confirm the axle and U-joint series match before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hardware is not included, so the U-bolt kit must be sourced separately before installation. Support the vehicle securely and disconnect the driveshaft before working on the yoke.
What’s included
The pinion yoke only. Not included: U-bolt mounting hardware and the D/S3-94-58X U-bolt kit.
