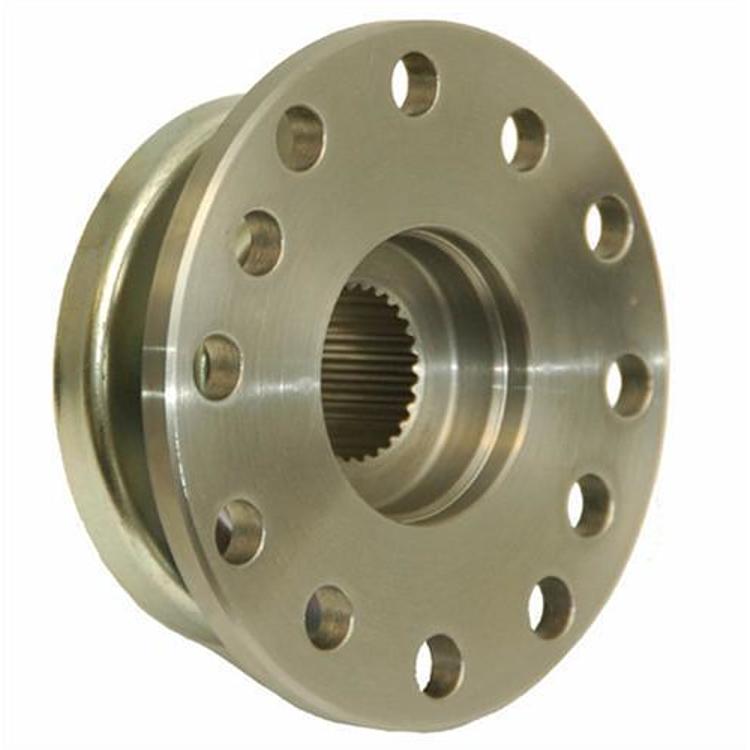

G2 Toyota FJ 27 Spline Pinion Flange Yoke – 90-2058M

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 27 spline flange pinion yoke, model 90-2058M
  • Allows Tacoma gears in a Toyota FJ differential
  • CNC machined with multiple bolt patterns

Description

Overview

The G2 Axle and Gear 90-2058M is a 27 spline flange pinion yoke. It allows Tacoma gears to be used in a Toyota FJ differential, and it is CNC machined with a flange bolt mount.

G2 lists universal fit for the rear Toyota FJ and Toyota Tacoma axle types. Its CNC machined yokes offer several bolt patterns so the right yoke can be matched on the first try.

Key features

  • 27 spline connection
  • CNC machined pinion yoke
  • Multiple bolt patterns for matching early and late models
  • Flange style U-joint connection

Conversion yokes and gear matching

A conversion yoke changes the connection between the driveshaft and the pinion, so the spline count, flange bolt pattern and U-joint style must all work with the gears in the differential. Yokes with several bolt patterns help match the part to different early and late builds, but the pattern should be checked against the actual carrier rather than assumed from the model name.

CNC machined yokes are dimensionally precise, which helps flange fit and runout, but precision does not replace checking the installed pinion. Verify flange runout and seat the yoke fully before tightening the pinion nut, then check preload. Inspect the flange bolts for stretching or thread damage, and use new bolts when the assembly is rebuilt. Gear changes often bring new pinion preload and backlash checks.

Specifications

Brand G2 Axle and Gear
Model number 90-2058M
UPC 631410096637
Spline count 27
Axle types Rear Toyota FJ, Toyota Tacoma
Joint Flange
Mount Flange bolt
Manufacturing CNC machined
Fitment Universal fit

Vehicle fitment

The yoke is universal fit for rear Toyota FJ and Toyota Tacoma axles. Match the bolt pattern and spline count to your gears and differential before ordering.

No vehicle years are listed. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this yoke changes which gear set works in the FJ differential, a qualified technician should confirm spline and bolt pattern before the driveline is assembled.

What’s included

The yoke only. No flange bolts or U-joint are named as included.

SKU: G/290-2058M Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 7.00 × 7.00 × 7.00 in
brands

Questions & Answers

What does the G2 90-2058M do?

It is a 27 spline flange-style pinion yoke that allows Tacoma gears to be used in a Toyota FJ differential, which makes it a conversion yoke.

Is this yoke for Toyota FJ only?

No. It is made for rear Toyota FJ and Toyota Tacoma axle types. Model years are not identified, so confirm fit for your vehicle's year, model and trim before installing.

Does the kit include flange bolts or a U-joint?

Flange bolts and a U-joint are not part of the yoke. The yoke uses a flange bolt mount and a flange U-joint series, so plan for both separately and check the package contents before starting.

Are flange bolts reusable after the yoke is removed?

Replacing them is the safer choice. Flange bolts stretch when torqued and can loosen or fail under load. New bolts help the flange clamp evenly against the yoke and keep the pinion assembly secure.
