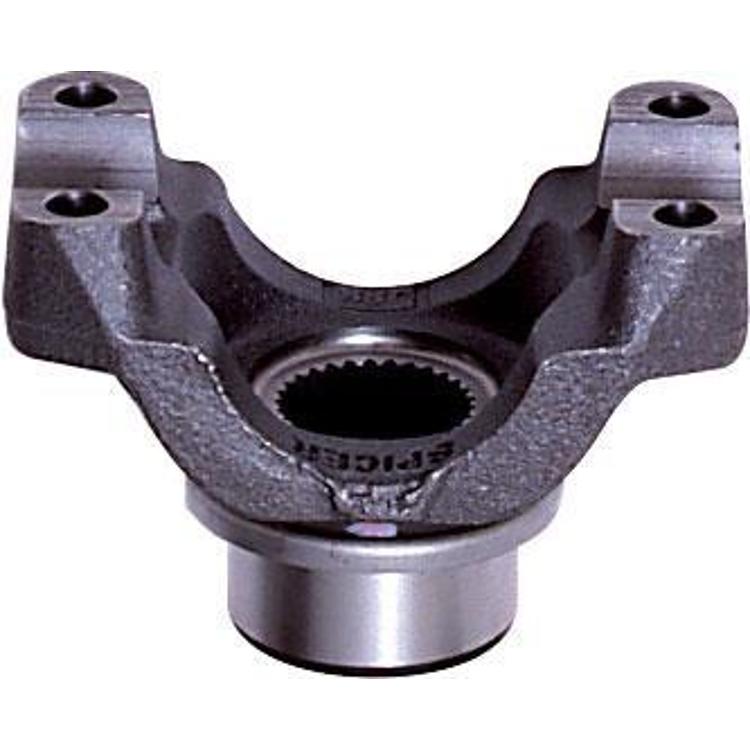

Dana Spicer Dana 60/70 1330 Series Pinion Yoke – 2-4-8051-1X

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer 1330 Series pinion yoke, part 2-4-8051-1X
  • Built with strap mounting for Dana 60, 61 and 70 axles
  • Front and rear axle locations listed
  • No vehicle fitment is listed

Description

Overview

Dana Spicer’s 1330 Series pinion yoke, number 2-4-8051-1X, uses strap mounting and fits Dana 60, Dana 61 and Dana 70 axles. It replaces a worn yoke on those axles at the front or rear and matches the 1330 Series U-joint.

It is a universal fit part, so the axle type decides compatibility. Confirm fit for your vehicle’s year, model and trim before ordering.

Key features

  • Strap style pinion yoke with a 1330 Series U-joint
  • Made for Dana 60, Dana 61 and Dana 70 axle types
  • Fits front and rear axle locations.
  • Suited to replacing a worn pinion yoke

Choosing and replacing a pinion yoke

A pinion yoke connects the driveshaft to the pinion gear and carries torque from the transfer case into the axle. Because it sits in that load path, a yoke that is pitted, grooved or loose on the pinion splines should be replaced rather than reused. Wear at the U-joint bearing caps often shows up first as vibration under load, so inspect the yoke ears for ovaling at the same time.

When choosing a replacement, start with the axle type and the joint series, then confirm the mounting style. Strap and U-bolt yokes are not interchangeable without changing the retention hardware. Pinion seals and pinion bearings are commonly replaced in the same job, since the yoke has to come off to reach them.

  • Check the pinion spline wear before ordering
  • Inspect strap hardware and flange faces
  • Replace the pinion nut after removal

Specifications

Brand Dana Spicer
Part number 2-4-8051-1X
Yoke style Strap style
U-joint series 1330 Series
Axle types Dana 60, Dana 61, Dana 70
Axle location Front and rear
Listed fitment category Universal Fit

Vehicle fitment

No vehicle is named here. The axle types Dana 60, Dana 61 and Dana 70 are the compatibility details to check against your own axle.

Other Dana axle designs and U-joint series fall outside these details. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Strap style yokes attach with a strap rather than U-bolts, so inspect the strap hardware and the flange before you start disassembly. Pinion bearing preload needs to be set at reassembly, which is work for a shop with a preload gauge.

What’s included

Check the package contents against your installation before starting, and plan for a pinion nut, seal and bearing if your job needs them.

SKU: D/S2-4-8051-1X Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

Is 2-4-8051-1X a strap or U-bolt yoke?

It is a strap style yoke, so it mounts with straps rather than U-bolts. It uses a 1330 Series U-joint, which should be matched before installation.

Will this yoke fit a Dana 70 axle?

Yes, for axle type. The yoke is made for Dana 70 axles along with Dana 60 and Dana 61 axles. Confirm the axle on your vehicle before fitting.

What does the package contain?

This is the yoke only. Check your parts list for pinion nut, seal or bearing needs before starting the installation.

Should the pinion seal be replaced with a new yoke?

Often yes. Because the yoke has to be removed to reach the pinion seal, replacing the seal at the same time avoids a second teardown. Check the seal surface on the yoke for grooves before reinstalling.
