Currie 1310 Nodular Yoke for Ford 9″, Long style – CE-4042L

Currie

Shop Currie Differential Pinion Yokes on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-4042L 1310 series long yoke for Ford 9 Inch rear axles
  • Cast from 65,000 p.s.i. nodular iron, strap style yoke
  • Designed for stock configuration pinion supports
  • Part number CURCE-4042L; needs the CE-4059 (1330) U-joint U-bolt kit

Description

Overview

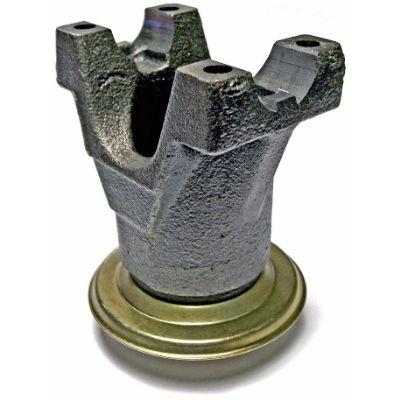

It is a 1310 series long yoke for Ford 9 Inch rear axles, part number CURCE-4042L. It is cast from 65,000 p.s.i. nodular iron, designed for stock configuration pinion supports, and made as a strap style yoke.

Key features

  • 1310 series long style yoke for Ford 9 Inch rear axles
  • Cast from 65,000 p.s.i. nodular iron
  • Designed for use with stock configuration pinion supports
  • Strap style yoke design

Strap yokes and pinion setup

A long yoke adds length at the pinion, so it can change driveshaft length and the working angle of the U-joint. Measure the driveshaft before cutting or replacing it, and keep the slip joint fully engaged after installation.

Strap style yokes rely on the strap and U-bolt hardware to hold the joint, so inspect the strap for cracks and the bolts for stretch each time the yoke is off. Pinion support bearings and seals are often replaced at the same time to avoid repeat work. Nodular iron is tough but still benefits from a clean mating surface, so wipe the pinion splines before installing and apply the recommended lubricant.

  • Check the pinion seal for seepage
  • Replace worn U-joints with the yoke
  • Inspect the driveshaft slip yoke for scoring
  • Re-check driveline angles at ride height

Specifications

Brand Currie
Part number CURCE-4042L
Axle location Rear
Axle type Ford 9 Inches
U-joint series 1310 Series
Yoke style Long, strap style
Material Nodular iron, cast from 65,000 p.s.i.
Pinion supports Stock configuration

Vehicle fitment

It is made for Ford 9 Inch rear axles with stock configuration pinion supports. Match your year, model and trim to the axle before ordering.

Use it on Ford 9 Inch rear axles only. For other axle types or locations, check the axle housing against this yoke before ordering.

Installation notes

The 1310 long yoke requires only the CE-4059 (1330) U-joint U-bolt kit. Plan to obtain that kit along with the yoke.

What’s included

The yoke only.

Not included: the CE-4059 (1330) U-joint U-bolt kit and a U-joint.

SKU: CURCE-4042L Category:

Questions & Answers

What is the Currie CE-4042L?

The Currie CE-4042L is a 1310 series long yoke for Ford 9 Inch rear axles, part number CURCE-4042L. It is cast from 65,000 p.s.i. nodular iron and is designed for strap style U-bolt use with stock configuration pinion supports.

Does the CE-4042L need a special U-joint kit?

Yes. The 1310 long yoke needs the CE-4059 (1330) U-joint U-bolt kit to install. That kit is not included with the yoke, so buy it separately along with a U-joint.

What axle does the CE-4042L fit?

It fits the rear location on Ford 9 Inch axles. Vehicle year, model and trim are not attached to it, so confirm your axle type and location before ordering.

Can I reuse the old U-joint with the new yoke?

It is usually better to replace it. Check the old joint for play, rust or dry bearings, and if any are present, fit a new U-joint with the yoke and new U-bolt hardware.
