  • G2 1350 Series pinion yoke, part 90-2018-35U
  • U-bolt mounting for GM 12 Bolt 8.875 Inch rear axles
  • UPC 631410122961
  • Vehicle fitment not listed

Description

Overview

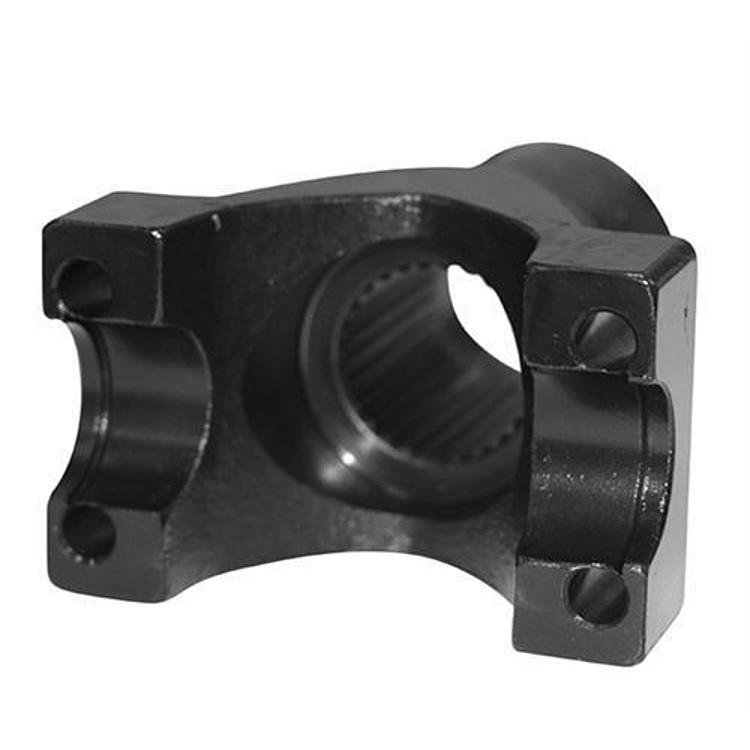

The G2 Axle and Gear 1350 Series pinion yoke, part number 90-2018-35U, is built for the rear of a GM 12 Bolt 8.875 Inch axle and uses U-bolt mounting.

The U-bolt design is what G2 presents as the stronger, preferred style. With no vehicle named, the axle type and the 1350 Series joint are what to check.

Key features

  • 1350 Series U-joint yoke with U-bolt mounting
  • Rear location for GM 12 Bolt 8.875 Inch axle types
  • Chosen by racers and off-road drivers.
  • Listed within G2’s pinion flange and yoke range

Rear pinion yoke upkeep

The pinion yoke takes driveshaft torque into the rear gear set, and its flange face is where most wear shows first. A flange with grooves or a loose clamp can leak lubricant past the seal and create driveline vibration. Looking at the yoke every oil change keeps small problems from becoming larger ones.

For GM 12 Bolt axles that see off road use, the driveshaft is more likely to take impact. Inspect the U-joint caps and bearings at the same time as the yoke. Replacing a worn joint with the yoke avoids a second teardown, and it keeps the driveline balanced after the work.

  • Look for lubricant around the pinion seal
  • Check the flange face for grooves
  • Inspect the U-joint caps while the yoke is off

Specifications

Brand G2 Axle and Gear
Part number 90-2018-35U
UPC 631410122961
Yoke style U-bolt style
U-joint series 1350 Series
Axle location Rear
Axle type GM 12 Bolt 8.875 Inches
Listed fitment category Universal Fit

Vehicle fitment

No vehicle is named for this yoke. The match points are the GM 12 Bolt 8.875 Inch axle type and the rear location.

Front axles, other GM axle sizes and other joint series are outside these details. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The clamp hardware for U-bolt mounting has to line up with the pinion flange, so check it while the old yoke is off. Bearing preload is restored at reassembly, and a driveline shop with a preload gauge is the usual route.

What’s included

The yoke is the only item this part covers. Check the clamp hardware and pinion nut needs before starting the installation.

SKU: G/290-2018-35U Category:

Specification

Shipping weight 1.50 lbs
Package dimensions 6.00 × 5.00 × 5.00 in
brands

Questions & Answers

What does the 1350 Series mean for this yoke?

The 1350 Series is the U-joint series named for this yoke. Check your existing joint before fitting, since a yoke for another series will not match it.

Is this yoke for the front or rear axle?

Rear. It is made for the rear of a GM 12 Bolt 8.875 Inch axle. Confirm the location on your vehicle before fitting.

Does this yoke come with a UPC?

Yes, UPC 631410122961 is the code for this yoke. Pair it with part number 90-2018-35U when you compare this yoke with the one you are replacing.

How do I tell if the yoke is worn or the joint is?

Check the joint first. Grab the driveshaft and feel for movement at the caps, then check the yoke's flange face for grooves. Play at the joint points to the joint, and play at the flange points to the yoke.
