Overview

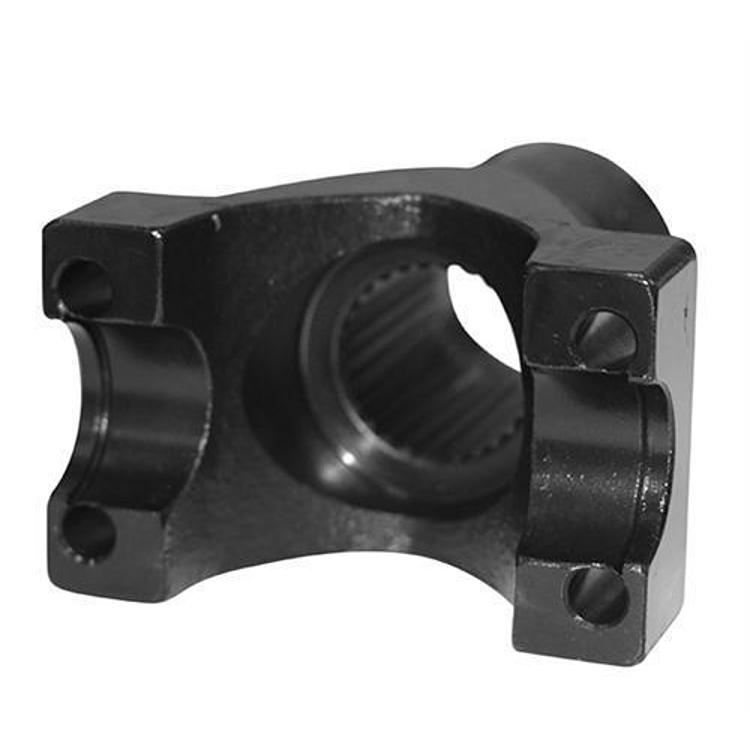

The G2 Axle and Gear 90-2011-33U is a 1330 series pinion yoke for the rear Ford 9 Inch axle. It is forged from precision steel and mounts with U-bolts.
The yoke fits the rear Ford 9 Inch axle and uses U-bolt mounting, a design often chosen for racing and off-road builds. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Precision forged steel for strength
- Built for 1330 series U-joints
- U-bolt style mounting hardware
- Made for use with the D/S2-94-58X U-bolt kit
Driveline setup considerations
A pinion yoke connects the driveshaft to the pinion gear, so it carries torque and holds the joint angle as the suspension moves. On a rear Ford 9 Inch axle, the yoke works alongside the U-joint, driveshaft and pinion seal, so each part affects the others. When the yoke comes off, the seal and pinion nut are disturbed as well, which makes this a good time to review the whole assembly.
Before buying, check the U-joint series and the way the yoke is retained. A U-bolt style yoke depends on the strap hardware and correct torque on each fastener, so have the kit and fasteners on hand before assembly. Inspect the sealing surface for grooves or rust before reusing the yoke, and check the U-joint caps for play once the driveline is back together.
- Match the U-joint series before ordering
- Replace the pinion seal whenever the yoke is removed
- Recheck U-bolt torque after the first drive
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Model number | 90-2011-33U |
| UPC | 631410122923 |
| Axle | Rear Ford 9 Inch |
| U-joint series | 1330 |
| Mounting | U-bolt style |
| Material | Precision forged steel |
| Hardware | Not included |
| Fitment | Universal fit |
Vehicle fitment
It is a universal fit for the rear Ford 9 Inch axle. Confirm the axle and U-joint match before installing.
No vehicle years, models or trims are named. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Expect to supply the U-bolt hardware yourself, then verify the driveline angle after the yoke is fitted.
What’s included
Only the yoke is described. The D/S2-94-58X U-bolt kit and fasteners are not included.
