G2 Axle and Gear CORE 44 Rear Axle Assembly, 4.56 Ratio and Detroit True Trac Locker and Disc Brake Kit – C4TSR456TC0D

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 CORE 44 rear axle assembly with a 4.56 ratio and Detroit True Trac
  • Includes a disc brake kit for the rear
  • Built for 1997–2006 Jeep TJ and LJ Wranglers
  • Accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers
  • Part number G/2C4TSR456TC0D

Description

Overview

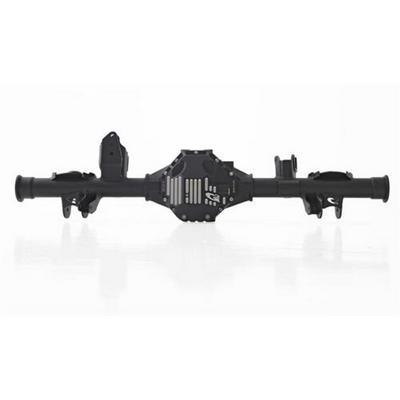

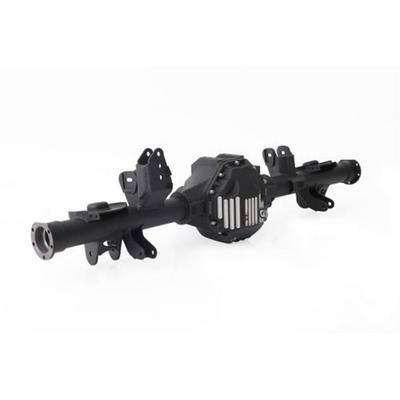

The G2 Axle and Gear CORE 44 rear axle assembly, part number G/2C4TSR456TC0D, has a 4.56 gear ratio, a Detroit True Trac locker and a disc brake kit. G2 introduces its CORE 44 axle housing for 1997-2006 Jeep TJ/LJ Wranglers, so this rear is built for those Wrangler years.

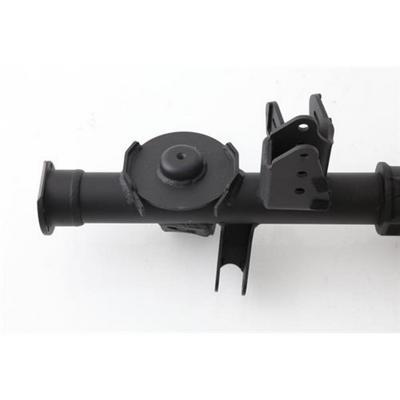

The CORE 44 uses a high pinion Dana 44 gear design in a housing built to handle heavy loads. The housing accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers, which leaves room for gearing and locker choices later.

The Detroit True Trac is the traction device fitted to this rear, and the kit includes disc brakes. The axle uses 30 spline axle shafts, and the wheel bolt pattern is 5 on 4.5 inches.

Key features

  • CORE 44 rear housing with a high pinion Dana 44 gear design
  • Detroit True Trac locker
  • Disc brake kit
  • 4.56 gear ratio
  • 30 spline axle shafts
  • 5 on 4.5 inch wheel bolt pattern

Setting up a gear swap

Changing a rear gear ratio affects how the vehicle pulls at low speed and how it cruises, so the choice should match the tires and the way the Wrangler is used. A numerically higher ratio helps with crawling and heavier tires, while a lower numerical ratio trades low-speed pull for quieter highway running.

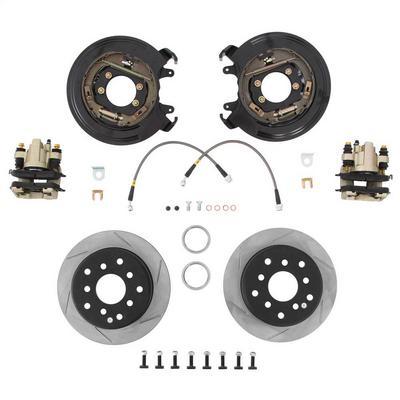

A locker changes how power is split between wheels, so the traction device and the ring and pinion should be chosen together. Disc brakes on the rear also change the brake fit and the hub setup, so check that the brake parts and the axle shafts match before the assembly goes under the vehicle. After assembly, the gear mesh and pinion depth should be set by a shop with the proper tools, and the axle should be broken in gently while the new gears seat. Keep a record of the setup so later service on the locker or gearing is straightforward.

  • Match the ring and pinion ratio to tire size
  • Confirm axle shaft spline count before ordering
  • Keep a gear setup record for later service

Specifications

Brand G2 Axle and Gear
Part number G/2C4TSR456TC0D
Axle type CORE 44 rear, high pinion Dana 44 design
Housing type 97-06 Jeep TJ Dana 44
Position Rear
Gear ratio 4.56
Axle spline 30 splines
Traction device Detroit True Trac
Brakes Disc brake upgrade
Wheel bolt pattern 5 on 4.5 inches

Vehicle fitment

This rear is built for the 1997–2006 Jeep TJ and the 2004–2006 LJ Wrangler. The housing type is 97-06 Jeep TJ Dana 44.

Check your vehicle’s year and trim against these years before buying, especially if your Wrangler falls outside the TJ and LJ years.

Installation notes

A 4.56 ratio with a Detroit True Trac in a rear axle is a gear set that should be installed and set up by a shop with gear and pinion setup tools. The disc brake kit is listed with the rear, so it should be fitted along with the axle.

What’s included

The CORE 44 rear axle assembly with the Detroit True Trac and the disc brake kit.

Not included: Check the package contents against your installation before starting, including whether axle shafts and ring and pinions are needed.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G/2C4TSR456TC0D fit a 2005 Jeep Wrangler LJ?

Yes. The rear is built for 1997–2006 Jeep TJ and LJ Wranglers, and 2005 falls within the LJ years of 2004 to 2006, so a 2005 LJ is covered. Confirm fit for your vehicle's year, model and trim before ordering.

Does the CORE 44 rear take stock Dana 44 shafts and gears?

Yes. The housing accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers. Stock Dana 44 parts can be used in the housing, provided the gear setup is done correctly.

What locker and disc brakes come with this rear?

It has a Detroit True Trac locker, and the kit includes a disc brake upgrade. The gear ratio is 4.56 with 30 spline axle shafts.

Can the locker be serviced separately from the gears?

Locker service usually means removing the carrier, so it is often done at the same time as a gear change. Check the locker and bearings whenever the carrier is open, and replace the gasket or fluid as the vehicle's service procedure calls for.
