G2 Axle and Gear CORE 44 Front Axle Assembly, 5.13 Ratio and Eaton E-Locker – C4TSFS513EC0

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 CORE 44 front axle assembly with a 5.13 ratio and an Eaton E-Locker
  • Built for 1997–2006 Jeep TJ/LJ Wranglers and 1984–2001 Jeep XJ Cherokee
  • High pinion Dana 44 gear design in a new CORE 44 housing
  • Accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers
  • Part number G/2C4TSFS513EC0

Description

Overview

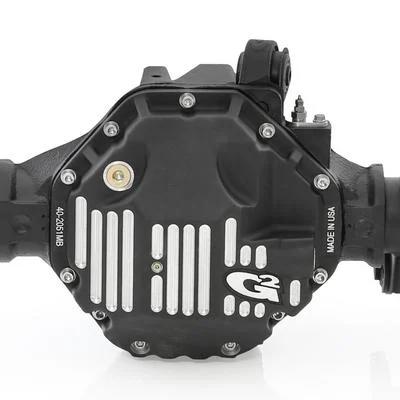

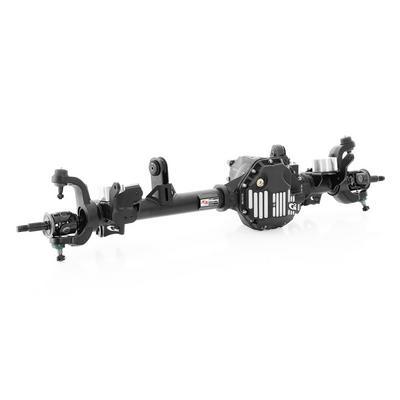

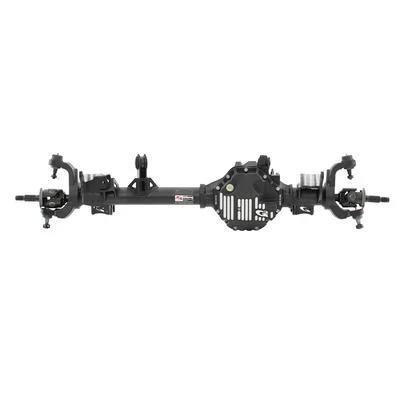

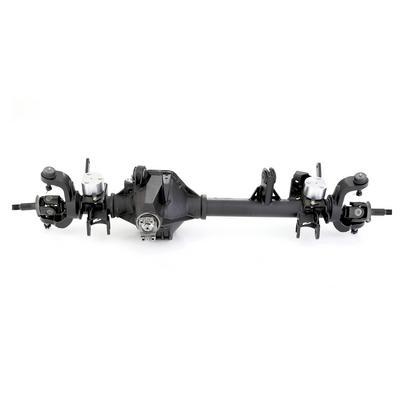

The G2 Axle and Gear CORE 44 front axle assembly, part number G/2C4TSFS513EC0, is the 5.13 gear ratio version of G2’s CORE 44 front with an Eaton E-Locker. G2 introduces the CORE 44 axle housing for 1997-2006 Jeep TJ/LJ Wranglers and 1984-2001 Jeep XJ Cherokee, so this front axle is built for those vehicles.

A high pinion Dana 44 gear layout forms the core of this housing, a newer generation of that design. The housing can take stock Dana 44 ring and pinions and axle shafts, plus any aftermarket locker.

The 5.13 gearing is paired with an Eaton E-Locker and 30 spline axle shafts. The wheel bolt pattern is 5 on 4.5 inches, and the brakes are the factory units reused on the vehicle.

Key features

  • CORE 44 high pinion Dana 44 housing
  • Accepts stock Dana 44 ring and pinions and axle shafts
  • Accepts all aftermarket lockers
  • Eaton E-Locker traction device
  • 5.13 gear ratio
  • 30 spline axle shafts
  • 5 on 4.5 inch wheel bolt pattern

Choosing a gear ratio

Gear ratio sets how much the engine turns for each wheel turn, which shapes low-speed pulling power and highway cruising. A numerically higher ratio, like this one, works the axle harder at speed but helps with slow crawling and larger tires. Pair the ratio with tire diameter and transmission gearing to keep engine speed comfortable.

Gear changes bring related parts into the job. Pinion bearings, carrier bearings and the axle fluid are often replaced together, since the gears must be set again. Check the axle breather and fluid level after setup, and watch for a whine that changes with load, which can point to setup issues.

  • Match the ratio to tire diameter
  • Replace carrier bearings with new gears
  • Check the breather after setup

Specifications

Brand G2 Axle and Gear
Part number G/2C4TSFS513EC0
Axle type CORE 44 front, high pinion Dana 44 design
Housing type 97-06 TJ and 84-01 XJ Dana 44
Position Front
Gear ratio 5.13
Axle spline 30 splines
Traction device Eaton E-Locker
Wheel bolt pattern 5 on 4.5 inches
Brakes Reuse factory

Vehicle fitment

It is built for the 1997–2006 Jeep TJ/LJ Wranglers and the 1984–2001 Jeep XJ Cherokee, covering the 1997–2006 TJ, 2004–2006 LJ and 1984–2001 Cherokee XJ. Verify fit against your vehicle’s year, model and trim before buying.

Check your vehicle’s year, model and trim against the TJ, LJ and XJ years above before ordering.

Installation notes

With a 5.13 ratio and a high pinion gear design, ring and pinion setup and bearing preload belong with a shop that has gear setup tools and experience with Dana 44 front axles. Stock Dana 44 axle shafts can be reused if they are in good condition.

What’s included

The CORE 44 front axle assembly with the Eaton E-Locker and 5.13 gears.

Not included: Axle shafts and ring and pinions: confirm whether they are included before starting.

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ) likely fits1984–2001All
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G/2C4TSFS513EC0 fit a 1999 Jeep Wrangler TJ?

Yes. G2 introduces the CORE 44 for 1997-2006 Jeep TJ/LJ Wranglers, so a 1999 TJ is covered. Confirm your vehicle's year, model and trim before ordering.

Does this CORE 44 use my stock Dana 44 shafts?

Yes. The housing takes stock Dana 44 ring and pinions and axle shafts, along with aftermarket lockers. Existing stock parts can be reused once the gear setup is done correctly.

What gear ratio does this front axle use?

It uses a 5.13 gear ratio with an Eaton E-Locker. The axle shafts are 30 splines, and the wheel bolt pattern is 5 on 4.5 inches.

Does a 5.13 ratio affect highway driving?

Yes. A higher numerical ratio raises engine speed at a given road speed, so highway cruising can feel busier and fuel use can rise. The tradeoff is stronger low-speed pulling on trails.

What is a sign the gear setup is off?

A whine that changes with load or speed, heat near the carrier, or uneven wear on the gear teeth can all point to setup problems. Have the setup checked promptly to avoid damage to the gears.
