G2 Axle and Gear CORE 44 Rear Axle Assembly, 5.13 Ratio and ARB Air Locker – C4TSR513AC0

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 CORE 44 rear axle assembly with a 5.13 ratio and ARB Air Locker
  • Built for 1997–2006 Jeep TJ and LJ Wranglers
  • Accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers
  • Brakes reused from the vehicle; no brake kit
  • Part number G/2C4TSR513AC0

Description

Overview

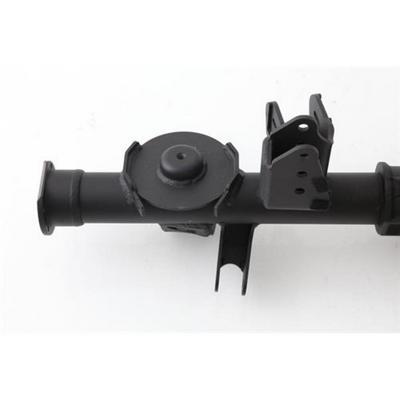

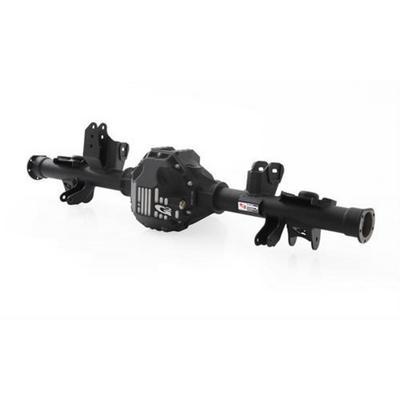

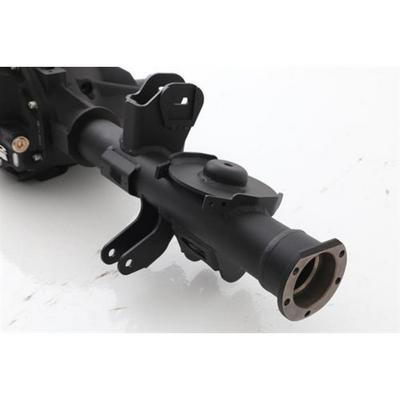

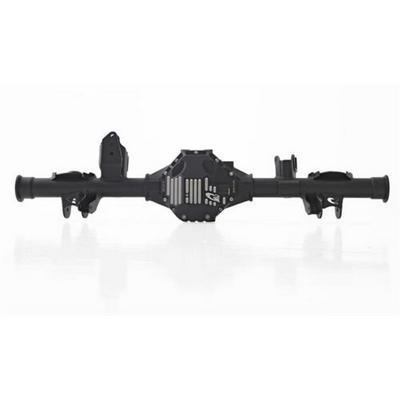

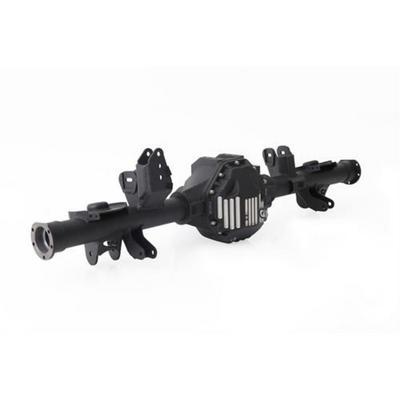

The G2 Axle and Gear CORE 44 rear axle assembly, part number G/2C4TSR513AC0, has a 5.13 gear ratio and an ARB Air Locker. G2 introduces the CORE 44 housing for 1997-2006 Jeep TJ/LJ Wranglers, so this rear is built for those vehicles.

The CORE 44 uses a high pinion Dana 44 design, built to take loads that would bend a stock Dana 30 or a Rubicon Dana 44. The housing accepts stock Dana 44 ring and pinions, axle shafts and all aftermarket lockers, so existing hardware can carry over.

This version pairs the 5.13 ratio with an ARB Air Locker for locking traction. The axle shafts are 30 splines, and the wheel bolt pattern is 5 on 4.5 inches. The brakes are reused from the vehicle rather than supplied with a kit.

Key features

  • CORE 44 rear housing with high pinion Dana 44 design
  • ARB Air Locker for locking traction
  • 5.13 gear ratio
  • Accepts stock Dana 44 ring and pinions and axle shafts
  • Accepts all aftermarket lockers
  • 30 spline axle shafts
  • 5 on 4.5 inch wheel bolt pattern

Air lockers on the trail

An air locker engages on command, so the driver can lock the axle for climbs and rocky sections and release it for normal driving. Because the air supply and solenoid add parts to maintain, the system needs periodic checks for leaks and moisture. Air lockers hold up well when the air lines are routed away from heat and sharp edges.

A 5.13 ratio works best where low-speed control matters more than highway efficiency. Pairing it with factory brakes keeps the braking system as the vehicle built it, so pad and rotor condition should be inspected before any trail season. Hubs and wheel bearings also deserve a look when the axle is opened for gear work.

  • Check air lines for chafing after each trail trip
  • Inspect the air compressor filter on a regular schedule
  • Look for fluid leaks at the carrier seals

Specifications

Brand G2 Axle and Gear
Part number G/2C4TSR513AC0
Axle type CORE 44 rear, high pinion Dana 44 design
Housing type 97-06 Jeep TJ Dana 44
Position Rear
Gear ratio 5.13
Axle spline 30 splines
Traction device ARB Air Locker
Brakes Reuse factory
Wheel bolt pattern 5 on 4.5 inches

Vehicle fitment

This rear is for the 1997–2006 Jeep TJ and the 2004–2006 LJ Wrangler, with a 97-06 Jeep TJ Dana 44 housing.

Confirm fit for your vehicle’s year, model and trim before ordering, particularly for the 1987–1995 Wrangler YJ, 1984–2001 Cherokee XJ and 2007–2018 Wrangler JK.

Installation notes

A 5.13 gear set with an air locker needs a shop with gear setup equipment for ring and pinion mesh and bearing preload. Check the factory brakes and hubs against the 5 on 4.5 inch wheel bolt pattern before installation.

What’s included

The CORE 44 rear axle assembly with the ARB Air Locker and 5.13 gears.

Not included: Check the package contents against your installation before starting, including axle shafts, ring and pinions and the brakes.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G/2C4TSR513AC0 fit a 2001 Jeep Wrangler TJ?

Yes. The CORE 44 rear is built for 1997-2006 Jeep TJ/LJ Wranglers, so a 2001 TJ falls within that range. Confirm fit for your vehicle's year, model and trim before ordering.

Does this rear come with an ARB Air Locker?

Yes. The ARB Air Locker is the traction device for this rear, paired with a 5.13 gear ratio. The housing accepts all aftermarket lockers as well.

Are the brakes included with this CORE 44 rear?

No brake kit comes with this rear, so the factory brakes stay in use. Inspect them before installation to confirm they are ready for the axle work.

How often should an air locker be checked?

Check it before each trail season and after any hard off-road trip. Listen for compressor run times that seem longer than usual, look for air leaks at fittings, and confirm the locker engages and releases cleanly on level ground before driving.
