G2 Axle and Gear CORE 44 Rear Axle Assembly, 4.88 Ratio and Detroit Locker and Disc Brake Kit – C4TSR488LC0D

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 CORE 44 rear axle assembly with a 4.88 ratio and Detroit Locker
  • Includes a disc brake kit for the rear
  • Built for 1997–2006 Jeep TJ and LJ Wranglers
  • Accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers
  • Part number G/2C4TSR488LC0D

Description

Overview

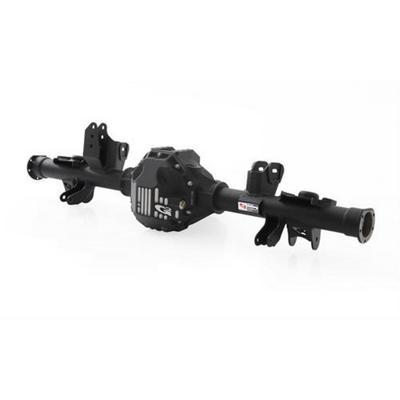

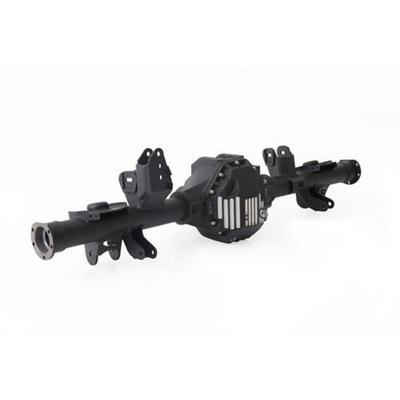

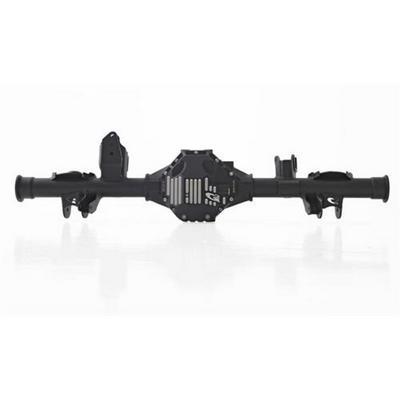

The G2 Axle and Gear CORE 44 rear axle assembly, part number G/2C4TSR488LC0D, has a 4.88 gear ratio and a Detroit Locker, with a disc brake kit. G2 introduces the CORE 44 for 1997-2006 Jeep TJ/LJ Wranglers, and this rear is the 4.88 ratio, locker-equipped version for those years.

The CORE 44 uses a high pinion Dana 44 gear design, built to handle loads that would bend a stock Dana 30 or a Rubicon Dana 44. The housing accepts stock Dana 44 ring and pinions, axle shafts and all aftermarket lockers.

The Detroit Locker gives the rear a locking differential, and the disc brake kit is part of the rear package. Axle shafts are 30 splines, and the wheel bolt pattern is 5 on 4.5 inches.

Key features

  • CORE 44 rear housing, high pinion Dana 44 gear design
  • Detroit Locker locking differential
  • Disc brake kit
  • 4.88 gear ratio
  • 30 spline axle shafts
  • 5 on 4.5 inch wheel bolt pattern

Choosing a locker setup

A locking rear changes how the axle behaves on loose or uneven ground. With a locker engaged, both wheels turn together, which helps when one tire lifts off the surface. The trade-off is tighter turns on pavement, where a locker can cause hopping or chatter. Many owners keep the locker engaged only on trails and release it for road driving.

Because the gears are set for a 4.88 ratio, the axle works harder at low speed and the engine turns faster at a given road speed. Larger tires shift that balance further, so matching gearing to tire height matters. Ring and pinion replacement and locker installation are often done together, since the carrier has to come out either way.

  • Check tire diameter before choosing final drive
  • Inspect locker engagement after the first trail runs
  • Replace pinion seals when the carrier is opened

Specifications

Brand G2 Axle and Gear
Part number G/2C4TSR488LC0D
Axle type CORE 44 rear, high pinion Dana 44 design
Housing type 97-06 Jeep TJ Dana 44
Position Rear
Gear ratio 4.88
Axle spline 30 splines
Traction device Detroit Locker
Brakes Disc brake upgrade
Wheel bolt pattern 5 on 4.5 inches

Vehicle fitment

The rear fits the 1997–2006 Jeep TJ and the 2004–2006 LJ Wrangler. The housing is a 97-06 Jeep TJ Dana 44.

This rear is for the 1997–2006 TJ and 2004–2006 LJ Wranglers. Confirm fit for your vehicle’s year, model and trim before ordering, especially for the 1987–1995 YJ, 1984–2001 Cherokee XJ or 2007–2018 JK.

Installation notes

A Detroit Locker with a 4.88 ratio needs ring and pinion setup and bearing preload set by a shop with gear setup equipment. The disc brake kit is part of the rear package and should be fitted with the axle, not added afterward.

What’s included

The CORE 44 rear axle assembly with the Detroit Locker and the disc brake kit.

Not included: Check the package contents against your installation before starting, including whether axle shafts and ring and pinions are present.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G/2C4TSR488LC0D fit a 2000 Jeep Wrangler TJ?

Yes. The CORE 44 rear is built for 1997-2006 Jeep TJ/LJ Wranglers, so a 2000 TJ falls within that range. Confirm fit for your vehicle's year, model and trim before ordering.

Is a Detroit Locker included with this rear?

Yes. The rear uses a Detroit Locker as its traction device and comes with a disc brake kit. It pairs a 4.88 gear ratio with 30 spline axle shafts.

Does this rear accept my stock Dana 44 axle shafts?

The CORE 44 accepts stock Dana 44 axle shafts and ring and pinions, along with all aftermarket lockers. Stock shafts can be reused when the gear setup and bearings are done correctly.

How should I care for a locking rear after installation?

Check the fluid level and inspect the axle seals after the first few trail runs. Let the locker engage and release fully on pavement to confirm it works smoothly. Re-check the axle bolts periodically, since off-road use loosens hardware over time.
