Overview
The Edelbrock Ford E-Force Street Legal Supercharger Kit with Tuner, part number 1557, is a bolt-on supercharger system for the 2015-2016 Ford F-150 with the 5.0L V8. It is made for the F-150 only.
The system uses a 2650 TVS rotor assembly and 14 inch long intake runners, designed to build low-end torque for towing and off-road use. Ratings are up to 478 flywheel horsepower and 504 ft-lbs of torque, with 533 RW horsepower and 482 RW torque.
Key features
- 2650 TVS rotor assembly
- Stage 1 calibration with emissions legal tuning
- Self-contained oil system with a 100,000 mile service interval
- Dual pass intercooler and air to water heat exchanger
- Integrated bypass valve for minimal decrease in fuel economy
- Electronic PCM programming module with application-specific tuning
- Preformed hoses that need no trimming
- All brackets, hardware and fuel rails included
Tune and emissions setup
A supercharger on a V8 truck changes airflow, fuel demand and spark timing, so the engine needs a calibration that matches the hardware. The electronic PCM programming module handles this. Emissions legal operation depends on loading the matching tune, so load it before the truck returns to public roads. Keep a record of the tune version in case the truck is serviced later.
Towing and off-road use put extra heat into the drivetrain, so cooling and drivetrain health matter more with added torque. The intercooler and oil system should be checked on a regular schedule, and the drive belt and tensioner are worth inspecting after installation. Long grades and heavy loads reveal problems sooner than daily driving does.
- Verify the tune loaded correctly before the first drive
- Watch coolant and transmission temperatures under load
- Inspect the belt and tensioner periodically
- Keep the preformed hoses clamped and free of rubbing
Specifications
| Brand | Edelbrock |
|---|---|
| Part number | 1557 |
| UPC | 85347015573 |
| Engine | 5.0L V8 |
| Rotor | 2650 TVS |
| Intake runners | 14 inch long |
| Power ratings | 533 RW horsepower and 482 RW torque; up to 478 flywheel horsepower and 504 ft-lbs of torque |
| Intercooler | Dual pass, with air to water heat exchanger |
| Oil system | Self-contained, 100,000 mile service interval |
| Warranty | 3 year, 36,000 mile limited powertrain warranty |
| Manufacturing | Designed, cast and manufactured in the U.S.A. by Edelbrock |
Vehicle fitment
The kit fits the 2015-2016 Ford F-150 in King Ranch, Lariat, Limited, Platinum, SSV, XL and XLT trims.
The list does not cover 2011-2014 or 2017 and later F-150 models, and the Expedition and Navigator are not on it. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is bolt-on, and the preformed hoses need no trimming. Emissions legal operation depends on the matching Edelbrock tune, which can be downloaded from the supercharger tech support page. Load that tune before driving the truck on public roads.

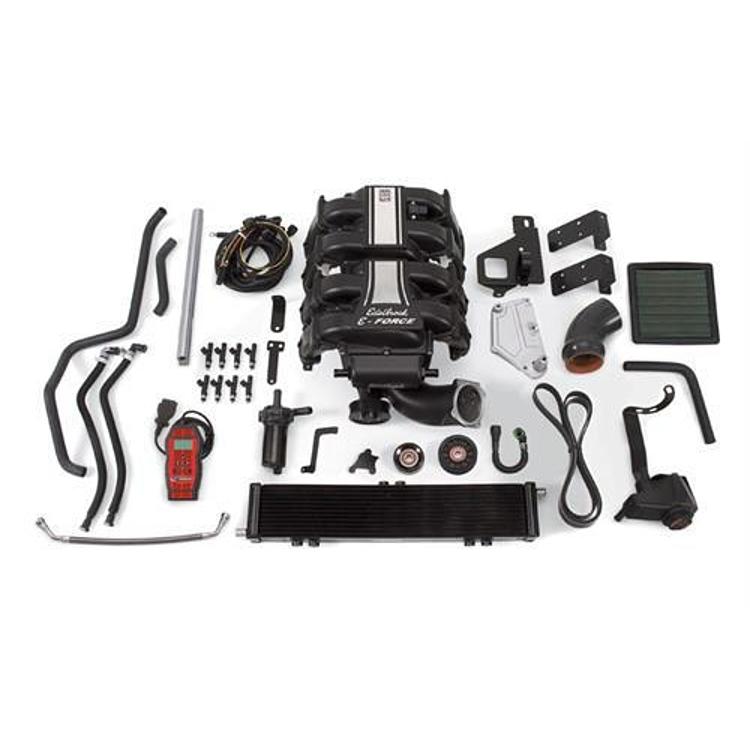

What’s included
The kit includes all brackets and hardware, the fuel rails and the preformed hoses, together with the electronic PCM programming module.
