Overview

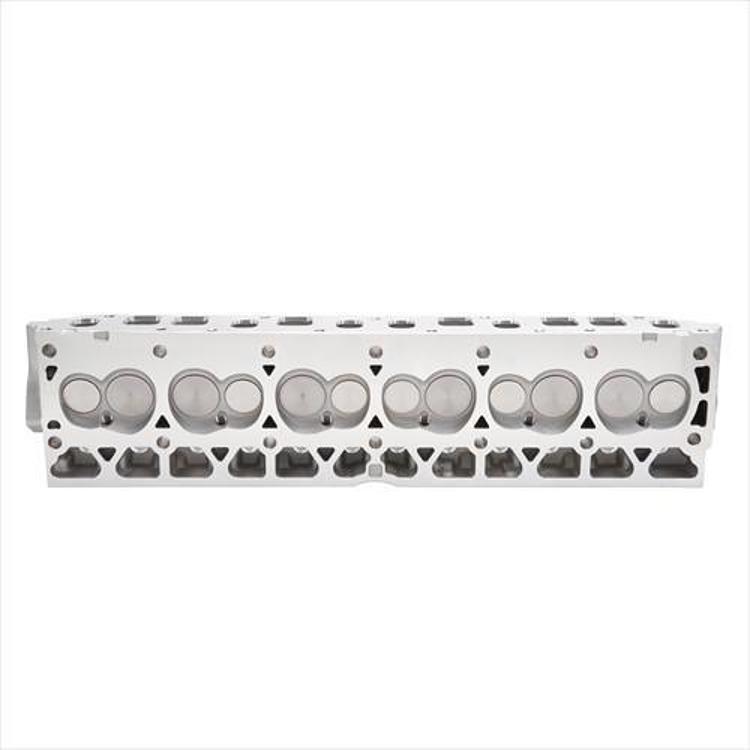

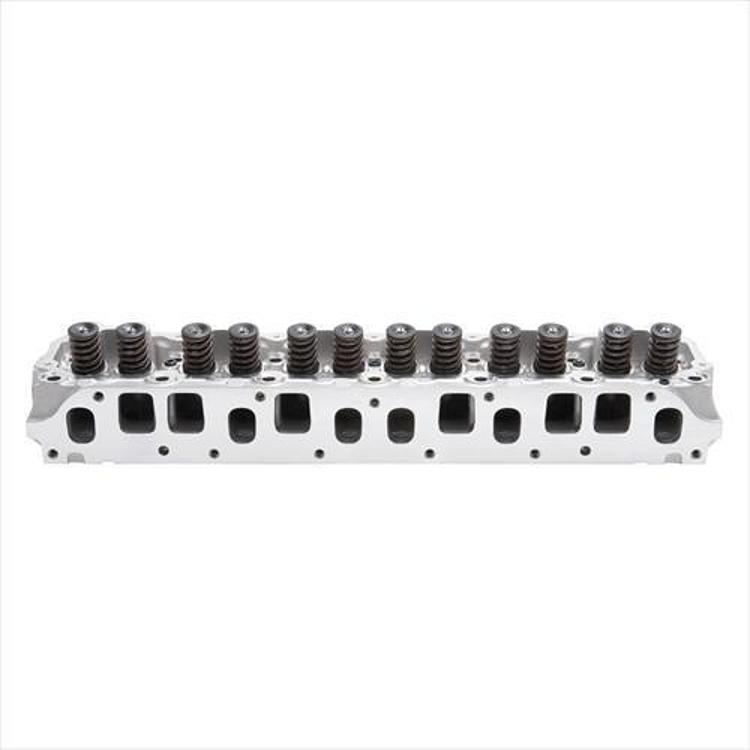

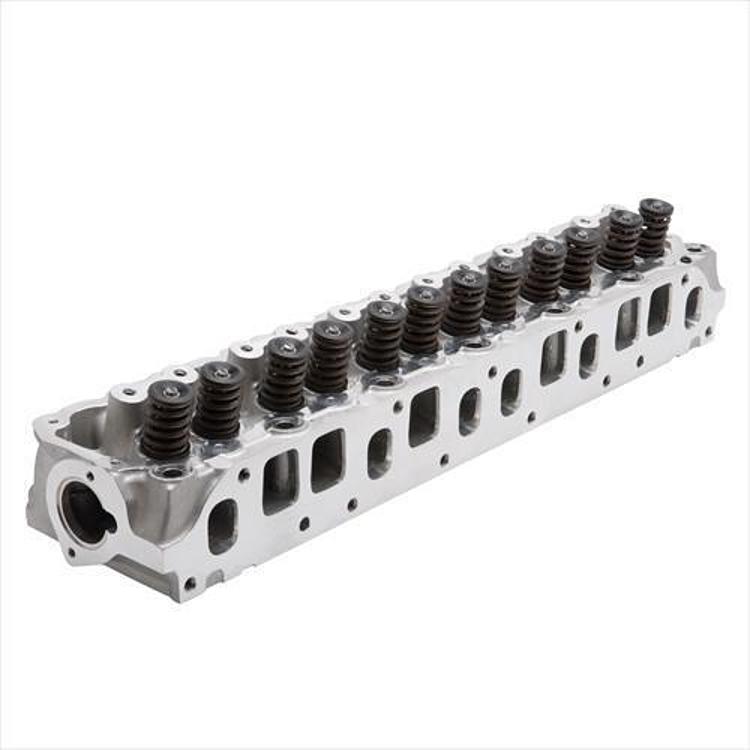

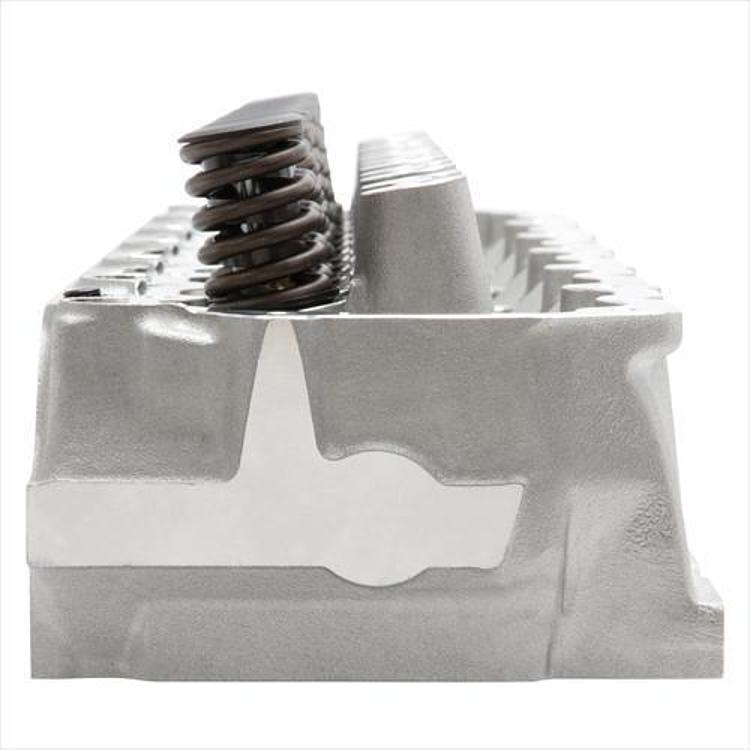

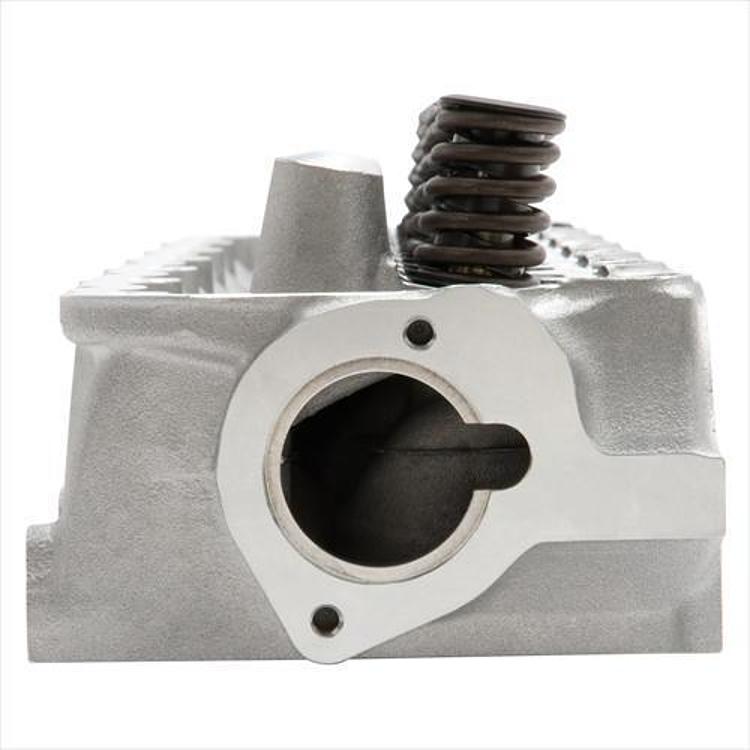

The Edelbrock 50169 is a complete Jeep 40L Performer cylinder head for gasoline engines. It is designed for power and durability compared with rebuilt heads, and it weighs half as much as the OEM cast iron cylinder head.
It is 49 state legal and is not for use in California. Fit depends on your vehicle’s year, model and engine, so confirm it before ordering.
Key features
- Complete head with springs for a flat tappet cam
- Stainless steel back-cut and swirl polished valves
- Modern combustion chamber design and better flowing intake and exhaust ports
- Larger reinforced rocker bosses and Heli-Coil inserts in the intake manifold bolt holes
- Stock valve angle, push rod length and valve cover bolt pattern
- Accepts distributor or coil pack ignition
Matching the valvetrain
A flat tappet cam relies on a steady film of oil and a proper break-in so the lifters and cam lobes seat correctly. Springs must suit the cam profile and the valve train, because weak or mismatched springs can cause valve float at higher engine speeds. Before assembly, check the installed spring height, retainers and locks, and confirm the push rods are the correct length for the rocker geometry.
Stock valve angle and push rod length help with a straightforward swap, but rocker arms, valve covers and intake manifolds should still be checked for clearance. The Heli-Coil inserts in the intake bolt holes respond well to steady, even torque, so re-check them after the first heat cycles. Keep a record of the torque values used so the work can be repeated.
- Use assembly lube on cam lobes and lifters at installation
- Check spring installed height before final assembly
- Inspect lifters and push rods for wear while the head is off
- Re-check intake bolt torque after the first warm-up
Specifications
| Brand | Edelbrock |
|---|---|
| Part number | 50169 |
| UPC | 85347501694 |
| Deck | 3/4 inch deck throughout the head |
| Valves | Stainless steel, back-cut and swirl polished |
| Intake bolt holes | Heli-Coil threaded inserts |
| Ignition | Distributor or coil pack |
| Weight | Half the weight of the OEM cast iron cylinder head |
| Legal status | 49 state legal; not for use in California |
Vehicle fitment
Fit depends on your engine’s valve train and bolt pattern matching this head. Confirm fit for your vehicle’s year, model and trim before ordering.
Compare your engine’s valve train and bolt pattern with the stated specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
1999-2006 applications require modifications to the engine configuration, so plan for that work before fitting this head. The valve angle, push rod length and valve cover bolt pattern match stock, for use with factory components and off-the-shelf accessories.
What’s included
The head is complete, with springs for a flat tappet cam and stainless steel valves. Gaskets, bolts and a valve cover are not included.
