Dana Spicer Dana 60/70 Power lok 35 Spline Spider Gear kit – 2021289

Dana Spicer

Shop Ford F-350 Differential Gear Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Power Lok internal kit for Dana 60 and Dana 70 rear differentials
  • For 35-spline axle shafts

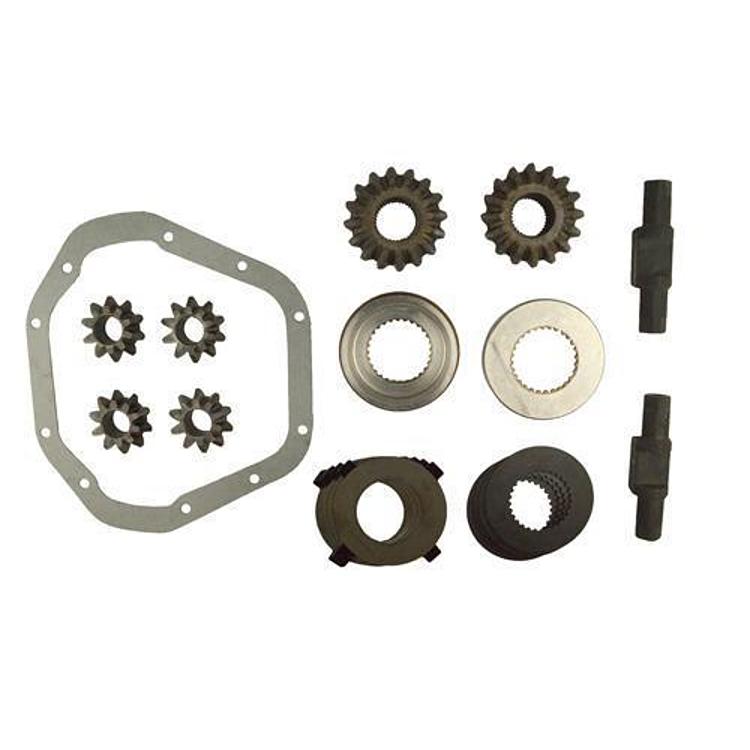

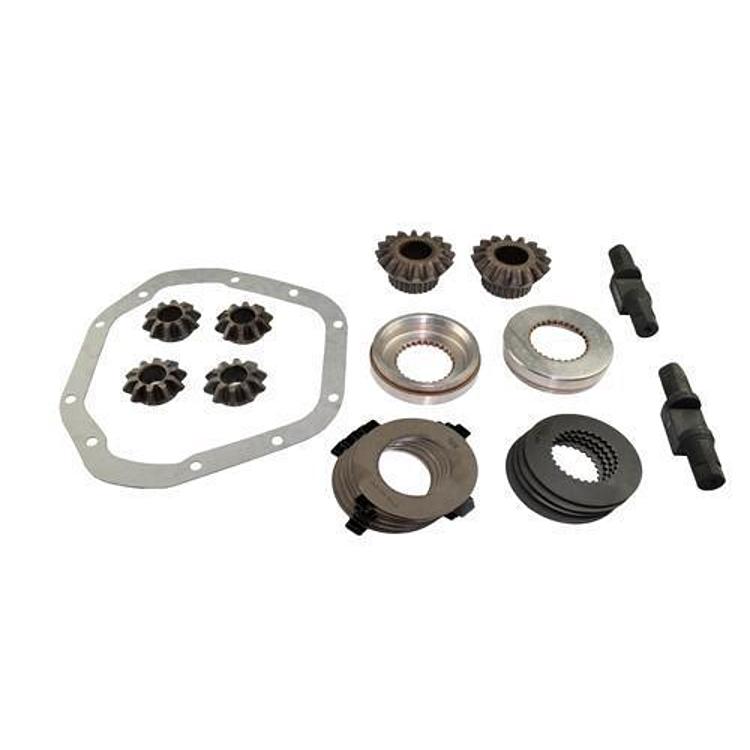

  • Includes 4 spider gears, 2 cross pins, 2 side gears, 2 side gear cups and 1 clutch pack
  • Dana Spicer part number 2021289

Description

Overview

The Dana Spicer 2021289 is a Power Lok internal kit for the rear Dana 60 and Dana 70 differentials. It is made for 35-spline axle shafts and can convert an existing Power Lok unit to 35 spline.

The kit suits the Dana 60 and Dana 70 axle and is a re-release. It fits the 1988–1991 Dodge D250, D350, W250 and W350 (Base) and the 1978–1989 Ford F-350 in several trims.

Key features

  • Power Lok internal kit
  • Converts an existing Power Lok unit to 35-spline shafts
  • Clutch pack included
  • Dana 60 and Dana 70 compatibility

Power Lok rebuild considerations

A Power Lok carrier uses a clutch pack to lock the spider gears, so its behavior depends on the clutch condition as much as the gears. When the internal kit is replaced, the clutches, side gears and spider gears all change together, which means the carrier should be opened and cleaned before the new parts go in.

Axles used with 35-spline shafts often need matching hubs and axle shafts, so check the spline count at both ends before committing to the job. Check the carrier bearings and pinion seal while the housing is open, and use the gear lubricant the axle requires for limited-slip operation. Limited-slip clutch packs also benefit from a fresh fill.

  • Inspect the existing clutch plates for glazing.
  • Check the side gear cups for wear or scoring.
  • Measure end play before closing the carrier.

Specifications

Brand Dana Spicer
Part number 2021289
Axle type Dana 60 or Dana 70
Axle spline 35 splines
Position Rear axle
Axle location Rear differential
Kit contents 4 spider gears, 2 cross pins, 2 side gears, 2 side gear cups, 1 clutch pack

Vehicle fitment

It is fitted to the 1988–1991 Dodge D250, D350, W250 and W350 (Base), and the 1978–1989 Ford F-350 in Base, Custom, Northland, Ranger Lariat, Ranger XLT, XL, XLS, XLT and XLT Lariat trims.

Other Dana 60 and Dana 70 applications are outside this fitment. Confirm fit for your axle’s year, model and trim before ordering.

Installation notes

This kit replaces the internal parts of a Power Lok differential, so the carrier must be opened. Clutch-pack setup is precision work, and a professional should set it up.

What’s included

The kit includes 4 spider gears, 2 cross pins, 2 side gears, 2 side gear cups and 1 clutch pack.

SKU: D/S2021289 Category:

Specification

Shipping weight 9.30 lbs
Package dimensions 12.80 × 12.80 × 2.50 in
brands

Fitment

VehicleYearsTrims
Dodge D2501988–1991Base
Dodge D3501988–1991Base
Dodge W2501988–1991Base
Dodge W3501988–1991Base
Ford F-3501978–1989Base, Custom, Northland, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this kit fit 35-spline axles?

Yes. It is made for 35-spline axle shafts and can convert an existing Power Lok unit to 35 spline, which is the job it is designed for.

Which vehicles are listed?

The kit is fitted to 1988–1991 Dodge D250, D350, W250 and W350 (Base) and to 1978–1989 Ford F-350 in several trims. Other vehicles are not covered, so confirm your year, model and trim before ordering.

What is in the kit?

The kit includes 4 spider gears, 2 cross pins, 2 side gears, 2 side gear cups and 1 clutch pack. Check the contents against your installation before starting.

Does a Power Lok kit need a break-in period?

Yes, a brief break-in is common after a clutch-pack rebuild. Drive gently for the first stretch, watch for chatter during turns, and check the lubricant level once the axle has run. Avoid hard lock-up until the clutches settle.
