Dana Spicer Dana 44 Open Differential Internal Kit – 706027X

Dana Spicer

$247.99Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

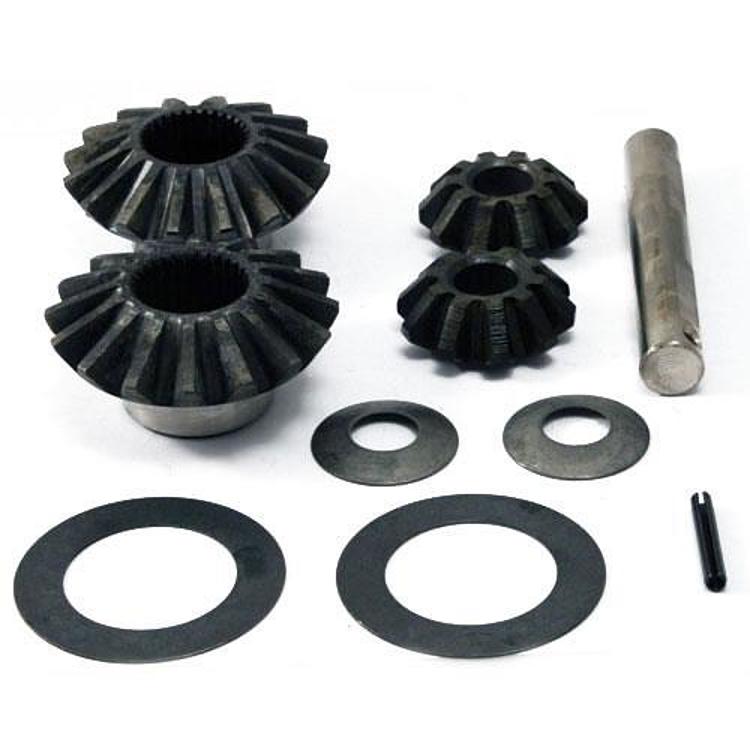

  • Dana Spicer Dana 44 open differential internal kit, part 706027X
  • Two spider gears with shims, two 30 spline side gears with shims
  • Cross shaft and retainer pin included
  • For open differentials only

Description

Overview

The Dana Spicer Dana 44 Open Differential Internal Kit, part 706027X, replaces the internal components of a standard open differential. It is a spider gear kit for 30 spline axles.

The kit is listed to fit all ratio carrier cases and is for open differentials only, not limited slips.

Key features

  • Replaces the internal components of an open differential
  • Two spider gears with shims
  • Two 30 spline side gears with shims
  • Cross shaft and retainer pin
  • Fits all ratio carrier cases

Rebuilding an open carrier

Rebuilding an open carrier starts with clean parts and a clear plan. Lay out the spider gears, side gears and shims in order so nothing is mixed up during reassembly. Inspect the carrier case for cracks and worn bores before the new internals go in, since a damaged case will not hold the gears correctly.

Gear backlash and contact pattern decide how quiet and durable the carrier will be. Set backlash with the shims, then check the tooth contact with marking compound before final assembly. Lubricate the gears with fresh gear oil and use the correct fill level for the axle. Torque the fasteners in a cross pattern and recheck backlash after the first short drive.

  • Clean all parts before assembly
  • Mark the shim stack as it comes apart
  • Recheck backlash after the first drive

Specifications

Brand Dana Spicer
Part number 706027X
UPC 23913133122
Axle location Front or rear
Axle types Dana 44, Dana 44 JK
Differential type Open only
Spline 30

Vehicle fitment

Universal fit is listed, but no vehicle is named. The internal kit is for open Dana 44 carriers with 30 spline axles, so match the carrier and spline count before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Internal work means opening the carrier. Set the side gear and spider gear backlash when you assemble the unit, and check the gear contact before closing it up.

What’s included

Two spider gears with shims, two 30 spline side gears with shims, one cross shaft and one cross shaft retainer pin.

Specification

Shipping weight 5.30 lbs
Package dimensions 13.30 × 12.80 × 2.50 in
brands

Questions & Answers

Does the Dana Spicer 706027X kit work on a limited slip?

No. It is for open differentials only, and the kit replaces the internal components of a standard open differential, not a limited slip unit.

How many spline side gears are included?

Two 30 spline side gears, each with shims, along with two spider gears and a cross shaft, are included in the kit. The retainer pin is also supplied.

Does it fit all carrier cases?

The product is listed to fit all ratio carrier cases, for Dana 44 axles with 30 spline shafts, so check the axle type first.

Do the spider gears need to be replaced together?

Usually, yes. Spider gears and side gears wear together, so replacing a worn set of internals as a kit helps keep the mesh even. Mixing old and new gears can cause uneven contact and early noise in the carrier.
