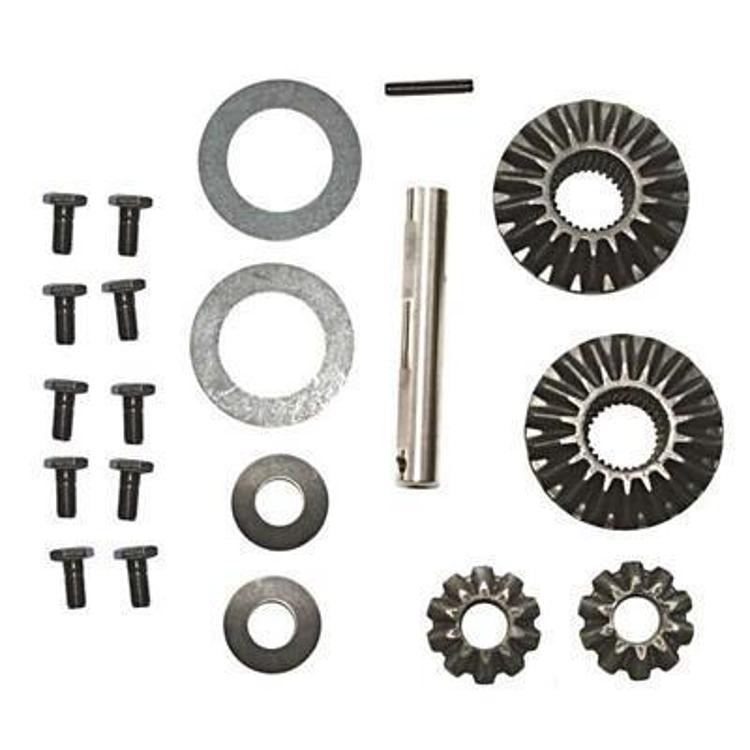

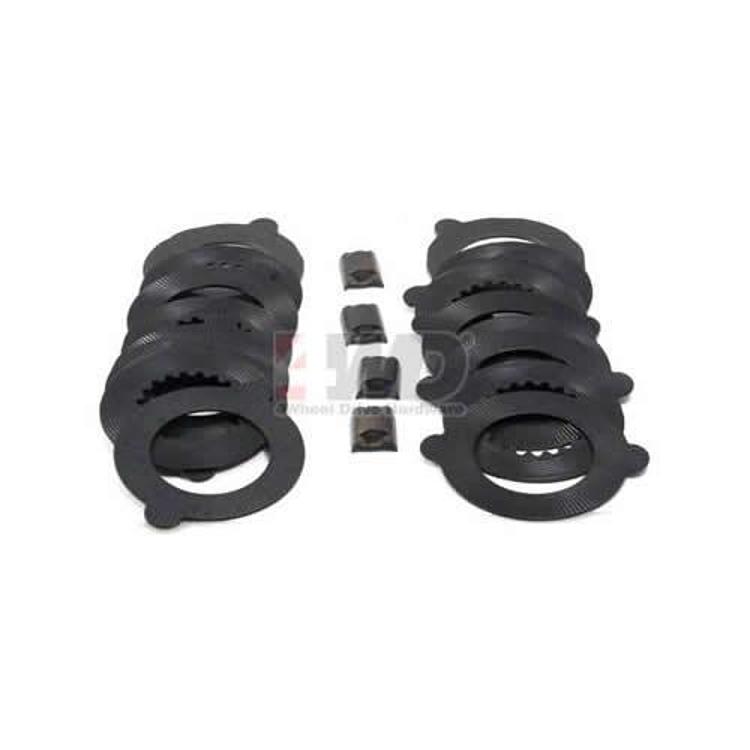

Dana Spicer Trac-Lok Differential Gear and Disc Set – 708184

Dana Spicer

Shop Dana Spicer Differential Gear Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Trac-Lok gear and disc set, part number 708184
  • Limited-slip set for a rear Dana 35 axle with 27 splines
  • Direct Fit; no vehicle listed

Description

Overview

The Dana Spicer Trac-Lok Differential Gear and Disc Set, part number 708184, is a limited-slip gear and disc set for the rear Dana 35 axle. A Trac-Lok is a clutch-type limited-slip differential, which uses a set of discs to share torque between the wheels so both can keep pulling when one loses traction.

It is a gear and disc set for a limited-slip Dana 35 rear axle.

Key features

  • Trac-Lok clutch-type limited-slip design
  • Built for a rear Dana 35 axle
  • Axle spline count of 27 splines
  • Direct Fit fitment type, matched to the rear Dana 35 axle.

Before you buy

A Trac-Lok unit works through clutch discs that keep both rear wheels driving when one wheel loses grip. On a Dana 35 rear, the gears and discs wear together, so a worn set often shows up as chatter during tight turns or a shudder when pulling away. Before replacing anything, look for metal debris in the carrier, because debris points to wear that a new set alone will not correct.

Axle type and spline count must match the axle you are rebuilding. Because the carrier is already open, many owners also replace the pinion bearings and carrier seals at the same time. Use a gear oil intended for clutch-type limited-slip units, and expect the discs to need a break-in period before the unit feels fully consistent.

  • Match axle type and spline count before ordering
  • Inspect the carrier for metal debris and worn bearings
  • Plan for break-in after the set is installed

Specifications

Brand Dana Spicer
Part number 708184
UPC 23913133092
Axle location Rear
Axle type Dana 35
Case type Limited slip
Axle spline 27 splines
Fitment type Direct Fit

Vehicle fitment

Dana 35 is an axle name, not a vehicle, so the set matches by axle type, spline count and limited-slip design rather than by model year. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Limited-slip gear and disc sets need professional setup, including gear mesh, backlash and disc preload, followed by a break-in period as the discs seat. Have a qualified differential specialist handle the work.

What’s included

The kit is sold as a gear and disc set. Check the package contents against your installation before starting. Not included: the differential carrier and axle parts, which are separate items.

SKU: D/S708184 Category:

Specification

Shipping weight 5.60 lbs
Package dimensions 13.40 × 13.00 × 3.00 in
brands

Questions & Answers

What is the part number of the Dana Spicer Trac-Lok gear and disc set?

The part number is 708184, and the brand is Dana Spicer. The UPC is 23913133092. It is a limited-slip gear and disc set for a rear Dana 35 axle with 27 splines.

Will this set fit my vehicle?

Confirm fit for your vehicle's year, model and trim before ordering. Dana 35 is an axle name rather than a vehicle, so match your axle type and spline count to this set before choosing it.

Does a limited-slip gear set need professional setup?

Yes, in most cases. Limited-slip gear and disc sets involve gear mesh and disc preload adjustments that affect how the unit works and wears. A qualified differential specialist should install and set it up.

How often should a limited-slip gear and disc set be checked?

Inspect it whenever the axle is opened for other work, or when you notice chatter in turns or a shudder when pulling away. Look for metal debris in the fluid and uneven disc wear, and have a specialist confirm preload before the vehicle returns to service.
