Dana Spicer Jeep JK Ultimate Dana 60 Front Axle Assembly 4.10 Ratio – 10034268

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front axle with 10-inch Dana 60, 4.10 ratio and factory electric locker
  • Fits 2007–2017 Jeep Wrangler (JK) models
  • Part number 10034268, UPC 23913485412

Description

Overview

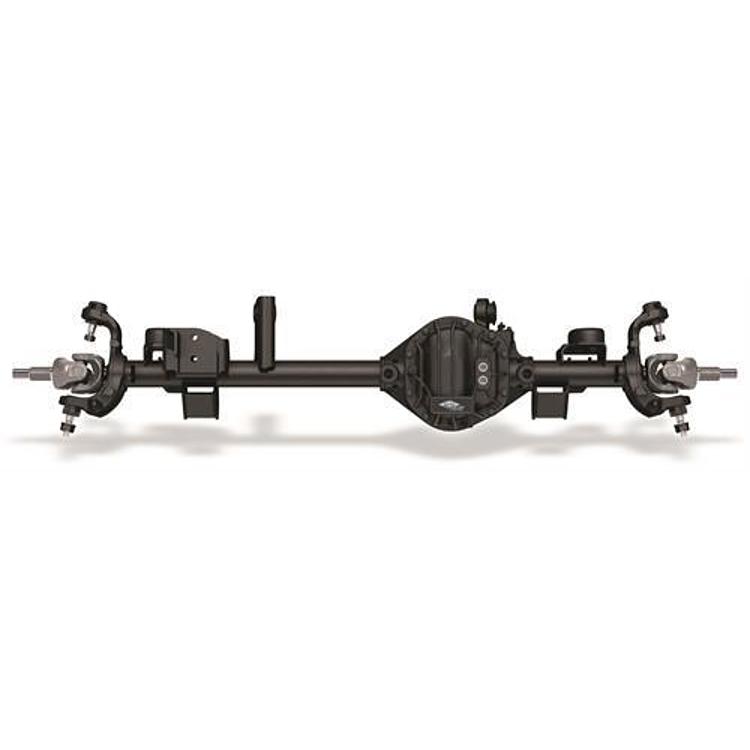

The Dana Spicer Ultimate Dana 60 front axle assembly, part 10034268, is a 4.10 ratio front axle with a factory electric locker. It fits 2007–2017 Jeep Wrangler (JK) models.

It is the Ultimate Dana 60 unit with upgrades aimed at off-road use. It is a direct-fit, bolt-in front axle with a U.S.-made 10-inch ring and pinion.

The axle uses 4340 chromoly 35-spline axle shafts, SPL-70 U-joints, serviceable wheel bearings and a nodular iron differential cover. Its 14-inch dual piston disc brakes come with a plug and play ABS system.

The housing is a Dana 60 for 07-Up Jeep JK models, mounted in the front position with 35-spline axles. The traction device is a factory electric locker, and the differential cover is nodular iron.

Key features

  • U.S.-made 10-inch Dana 60 front axle
  • 4.10 ring and pinion ratio
  • Factory electric selectable locker
  • 4340 chromoly 35-spline axle shafts
  • SPL-70 U-joints and 1350 pinion yoke
  • Serviceable wheel bearings and 35-spline Warn locking hubs
  • 14-inch dual piston disc brakes with plug and play ABS

Before you install

Swapping a front axle touches several systems at once, so plan the job before the axle leaves the box. Steering, brakes, driveline angles and the wheel setup all change together. A front axle swap is usually easier with the vehicle on stands and the old unit fully drained and labeled, so you can match bolt locations and hardware carefully.

A locker changes how the vehicle behaves on loose or uneven ground. An electric selectable unit is engaged on demand, so check the wiring harness and switch function once the axle is installed. Test engagement in a safe, low-speed area before heading out on the trail.

  • Check driveshaft length and U-joint angles after the swap.
  • Re-torque wheel fasteners after the first few drives.
  • Inspect the breather and axle seals for leaks.

Specifications

Brand Dana Spicer
Part number 10034268
UPC 23913485412
Axle position Front
Ring and pinion 10-inch, 4.10 ratio
Housing Dana 60, 3 1/2-inch tube with .370 wall, nodular iron cover
Axle shafts 4340 chromoly, 35 spline
Locker Factory electric selectable
Brakes 14-inch dual piston disc
Wheel bolt pattern 8 on 6.5 inch

Vehicle fitment

It fits 2007–2017 Jeep Wrangler (JK) in standard and Unlimited body styles.

It covers 2007 to 2017 Wrangler JK models only, so 2018 and later JK years and other Wrangler generations are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This axle needs aftermarket wheels to suit its 8 on 6.5-inch bolt pattern, and drive shaft modifications are required. Confirm the 4.10 ratio suits your tire size before fitting.

What’s included

The package is a complete front axle assembly. Check the package contents against your installation before starting.

SKU: D/S10034268 Category:

Specification

Shipping weight 701.00 lbs
Package dimensions 94.00 × 25.50 × 22.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the Dana Spicer 10034268 a 4.10 ratio axle?

Yes. It is a 4.10 ratio axle with a 10-inch ring and pinion and a factory electric selectable locker, which is the setup this unit is built around.

Does this front axle need aftermarket wheels?

Yes. The 8 on 6.5-inch bolt pattern on this axle requires aftermarket wheels, so plan on sourcing wheels that match that pattern before installation.

Which Wrangler years does this axle fit?

It fits the 2007 to 2017 Jeep Wrangler (JK), and years after 2017 are not covered. Confirm your year and model before ordering.

How often should a front axle with a locker be checked?

Check the fluid level and seals at regular intervals and after any water crossing. Listen for clicks or grinding when the locker engages, since that can signal a wiring or actuator issue that needs attention.
