Dynatrac HardCore ProRock 60/60 Axle Set – JKHC-3X3002-I

Dynatrac

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front and rear 60 axle set for 2007–2017 Jeep Wrangler (JK) models
  • Eaton E-Lockers and 5.38 ratio
  • Both axles 68.5 inches wide with 8 on 6.5-inch bolt pattern
  • Part number JKHC-3X3002-I

Description

Overview

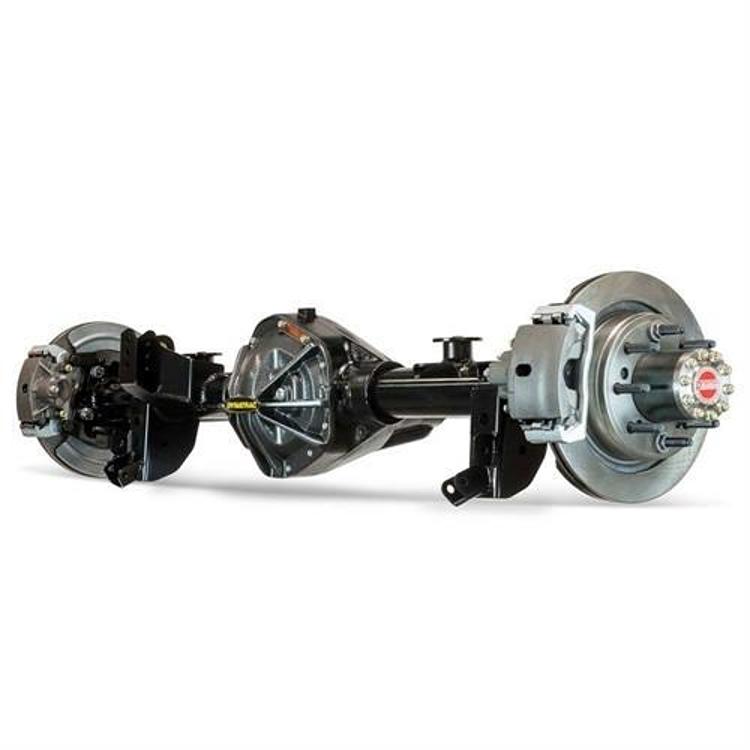

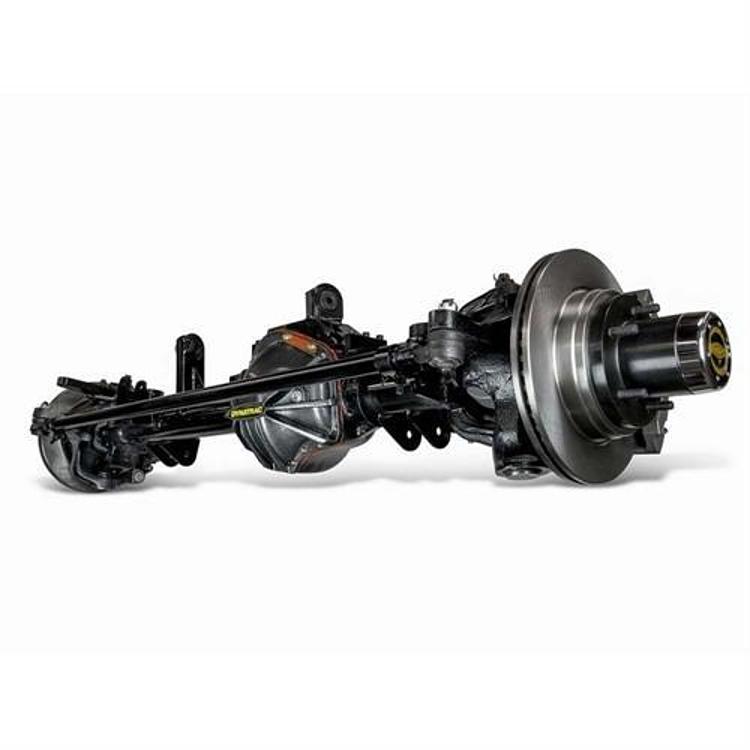

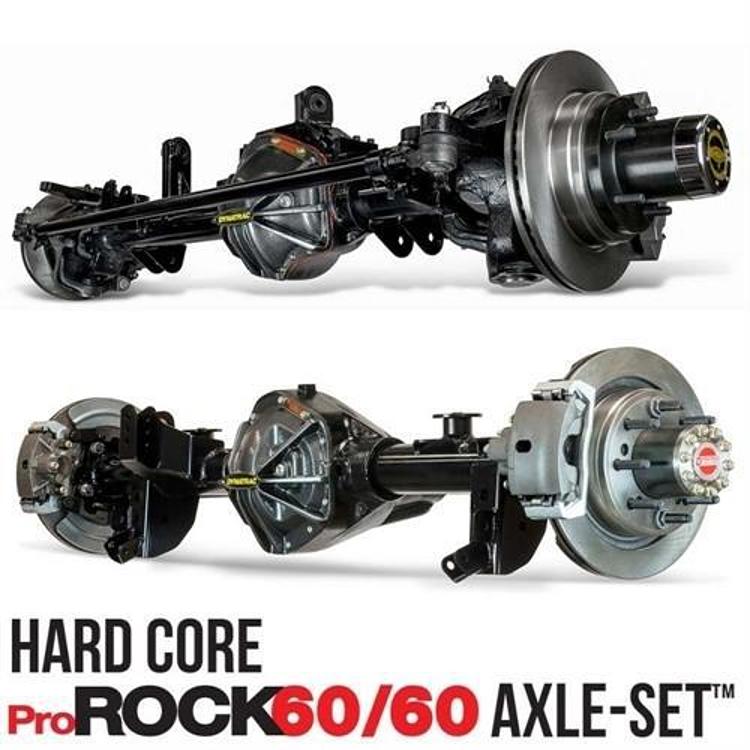

The Dynatrac HardCore ProRock 60/60 axle set, part JKHC-3X3002-I, is a front and rear pair with Eaton E-Lockers and a 5.38 ratio. It fits the 2007–2017 Jeep Wrangler (JK).

The set is designed for JK owners running tires up to 40 inches in diameter, with drivetrain parts sized to match. It is an alternative to a pair of Ultimate Dana 60 (UD60) axles.

The ProRock 60 center section is a nodular-iron, high-pinion design with more ground clearance than a factory Dana 44. It uses a dual-sump high volume oiling system to keep the outer pinion bearing lubricated.

Key features

  • Eaton E-Lockers in both axles
  • 5.38 ratio
  • ProRock nodular-iron high-pinion 60 center section
  • Dual-sump high volume oiling system
  • U.S.-made, forged and double heat-treated 1480 35-spline axle shafts
  • Dynatrac HD ball joints and tie rod, with a 4140 heat-treated steering arm
  • Rear axle with 14-inch brake upgrade and dual-piston calipers
  • Mechanical parking brake with adapters for the stock JK cable

Gearing and tire size

Tire diameter changes the effective gearing of any axle set. Larger tires turn the axles more slowly for each mile traveled, which lowers the effective ratio and makes low-speed crawling harder on the drivetrain. Matching the ratio to the tire size is one of the first things to plan when running big tires on a Wrangler.

Lockers change how the load is shared, so their engagement should be checked after any gear change. Eaton E-Lockers respond to the rear and front axles differently when the vehicle is in low range. Check the differential fluid after the first few trail runs and look for changes in noise.

  • Match the ratio to the planned tire diameter
  • Check locker engagement after any gear change
  • Inspect differential fluid after the first trail runs
  • Re-check wheel bolts and torque after the first drives

Specifications

Brand Dynatrac
Part number JKHC-3X3002-I
UPC 700008313461
Product type Front and rear axle set
Ratio 5.38
Locker Eaton E-Locker, both axles
Axle shafts 1480, 35 spline, forged and double heat-treated, made in the U.S.
Axle width 68.5 inches, front and rear
Wheel bolt pattern 8 on 6.5 inch
Maximum tire diameter 40 inches

Vehicle fitment

It is a direct fit for the 2007–2017 Jeep Wrangler (JK) in both standard and Unlimited body styles.

2018 and later Wrangler JK years and other Wrangler generations are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The rear axle includes a mechanical parking brake with adapters for the stock JK parking brake cable. Both axles are 68.5 inches wide and use the 8 on 6.5-inch pattern, so the wheels need an 8 on 6.5-inch bolt pattern.

What’s included

The set includes the front and rear axles, with a 14-inch rear brake upgrade and mechanical parking brake adapters for the stock JK cable.

SKU: DPCJKHC-3X3002-I Category:

Specification

Shipping weight 1100.00 lbs
Package dimensions 84.00 × 34.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What tire size is the Dynatrac HardCore 60/60 set built for?

It is built for JK owners running tires up to 40 inches in diameter. Confirm your tire size against that before ordering.

Which locker does the Dynatrac set use?

Eaton E-Lockers are fitted in both axles, along with a 5.38 ratio. Confirm the locker and ratio match your build before ordering.

Is this set a replacement for Ultimate Dana 60 axles?

Yes. It is positioned as an alternative to a pair of Ultimate Dana 60 (UD60) axles for the JK. Confirm that your vehicle matches the fitment before ordering.

Do larger tires need a regear with an axle set like this?

Usually, yes. Bigger tires lower the effective gearing, which strains the drivetrain and makes low-speed work harder. Check the ratio against your tire size and confirm the gear change before you drive.
