Overview

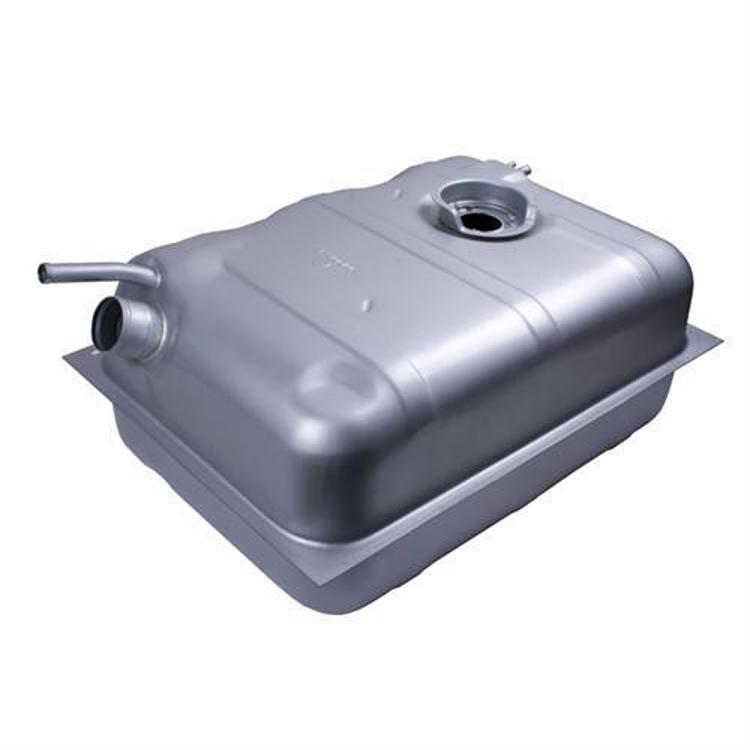

The Crown Automotive J8127698 is a steel 15 gallon rear fuel tank for the 1977 Jeep CJ5 and CJ7. It is marked as a direct fit and has a 2.25 inch inlet and a 1.25 inch filler neck.
The tank fits the Base, Golden Eagle and Renegade trims for both the CJ5 and CJ7 in 1977.
Key features
- Steel tank construction
- 15 gallon capacity
- Rear position
- 2.25 inch inlet diameter
- 1.25 inch filler neck
- Direct fit listing for 1977 CJ5 and CJ7
Fuel system fit-up
A steel 15 gallon tank is a durable choice for a CJ5 or CJ7, but the fit around it matters as much as the tank itself. The inlet and filler neck sizes determine which hoses and clamps are needed, so these should be confirmed before the old tank is removed. Steel also needs the seams and mounting points checked for rust before installation.
Before fitting, clean the inside of the new tank of any shipping debris and check the straps and skid area on the vehicle. Replacing the filler hose and vent lines while the tank is out is a sensible step, since these parts are reached during the same work.
- Confirm hose and clamp sizes before removal
- Clean the tank interior before fitting
- Inspect the straps and skid area for rust
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8127698 |
| UPC | 848399069457 |
| Material | Steel |
| Capacity | 15 gallons |
| Position | Rear |
| Inlet diameter | 2.25 inch |
| Filler neck diameter | 1.25 inch |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers the 1977 Jeep CJ5 and the 1977 Jeep CJ7, each with Base, Golden Eagle and Renegade trims.
The list does not include other model years of the CJ5 or CJ7. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 2.25 inch inlet and 1.25 inch filler neck against the lines and filler hose on your vehicle before starting work, since these are the sizes Crown gives for this tank.
What’s included
Check the hardware, fuel lines and sending unit you need against your installation before starting.
