Overview

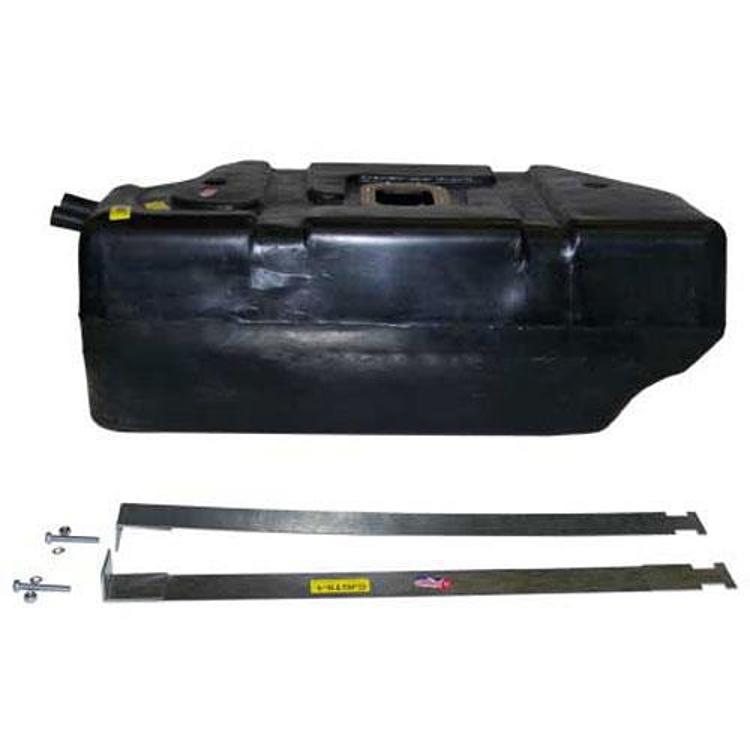

The Crown Automotive 52002633PL is a 20 gallon replacement gas tank in black plastic (polyethylene) construction. It is a direct-fit design, and the Jeep model years it suits are not confirmed here.
Crown Automotive supplies replacement parts for Jeep vehicles, and this tank comes with two upper straps and a sending unit gasket for mounting. Compare the sender location and overall tank shape against your original tank before ordering.
Key features
- 20 gallon capacity
- Black plastic (polyethylene) construction
- Direct-fit design
- Two upper straps included
- Sending unit gasket included
Before replacing a fuel tank
A replacement fuel tank changes more than storage volume. Mounting straps, the filler neck, vent lines and the sending unit all need to line up with the vehicle, and a tank that sits slightly off can rub or crack under load. Dry-fit the tank and check clearance to the frame, driveshaft and exhaust before final tightening.
Tank work also involves the existing hardware. Check the condition of the old straps and the filler hose, and replace any part that is cracked, stiff or leaking. Fuel system jobs carry fire and fume risk, so keep ignition sources well away and work in a ventilated area.
- Dry-fit before final strap tightening
- Check filler hose and vent lines
- Replace cracked or stiff straps
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52002633PL |
| UPC | 848399038071 |
| Capacity | 20 gallon |
| Material | Polyethylene (black plastic) |
| Fit type | Direct fit |
Vehicle fitment
Model years and chassis codes are not confirmed for this tank. Check your Jeep’s year, model and trim against the tank’s dimensions before ordering.
Tanks for other Jeep generations are not confirmed here, so the Jeep brand alone is not a reliable guide to fit.
Installation notes
Fuel tank work should be done with the old tank drained and the fuel system depressurized, and away from sparks or open flame.
What’s included
Two upper straps and a sending unit gasket are included.
Not included: the sending unit, fuel pump and tank filler hardware, which are not part of this kit.
