Overview

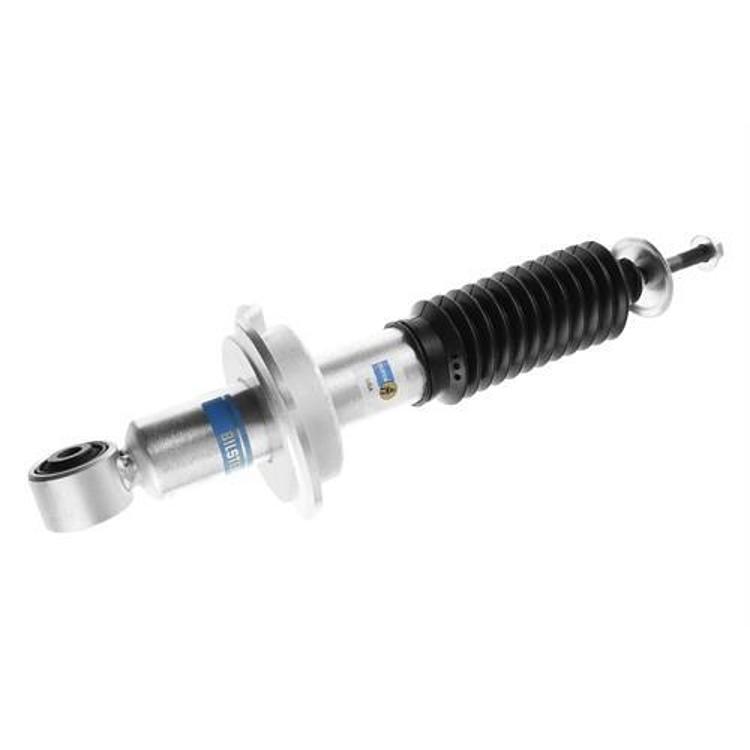

The Bilstein 24-197649 is a front ride height adjustable 5100 Series shock absorber for coilover-style pickup suspensions. It is a gas-charged monotube design with a 46mm digressive piston and a lift range of 0 to 2 in.
The body has several snap-ring grooves, so the spring seat can sit at different positions to set ride height. The shock is designed to increase wheel travel and improve handling. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Ride height adjustable through snap-ring grooves in the body
- 46mm digressive piston with self-adjusting deflective disc valving
- Monotube design
- Lift range of 0 to 2 in.
- Zinc-plated steel body with Triple-C-Technology coating
Choosing a lift height
Ride height on a coilover-style shock is set by the groove you choose on the body, so the decision starts with the height you want at the front end. Choose the groove that matches the lift you are after, then recheck the spring seat position and the front alignment once the work is done. Shorter or longer springs change how the shock is loaded, so the two parts should be matched as a set.
A taller setup usually calls for a check of the steering and brake lines, along with an inspection of the upper mounts and bump stops for wear. Driveshaft and CV joint angles can also change as the front end rises, so look for vibration or clicking during turns after the lift is made. Keep track of the groove you select so the setting can be repeated later.
- Check bump stop height after changing the groove
- Inspect the upper mounts for cracking or looseness
- Recheck front alignment after the first drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-197649 |
| UPC | 651860681214 |
| Shock series | 5100 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | 0 to 2 in. lift |
| Collapsed length | 11.37 in. |
| Extended length | 15.61 in. |
| Travel length | 4.24 in. |
| Shaft diameter | 14 mm |
| Body design | 46mm ID snap-ring grooved body (coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | No |
| Charge type | Gas charged |
Vehicle fitment
Confirm fit for your truck’s front suspension before ordering. Compare the collapsed and extended lengths, 11.37 in. and 15.61 in., with your original shock before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this is a coilover-style shock, ride height is set by the snap-ring groove used for the spring seat. Pick the groove that matches the lift you want, then check spring compatibility and alignment after installation. Use a shop or a qualified installer for suspension work.
What’s included
Check the package contents against your installation before starting.
Not included: The boot is not included.
