Bilstein 4600 Series Shock Absorber – 24-184601

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

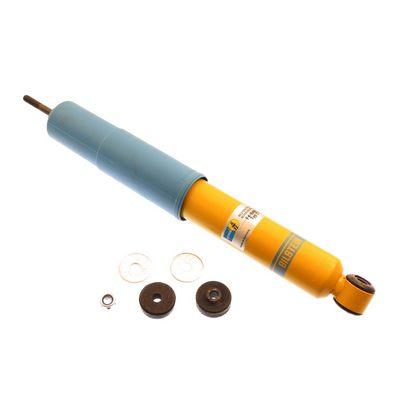

  • Bilstein 4600 Series monotube shock, front, part number BIL24-184601
  • Gas charged monotube with 2 inch body diameter, boots included and yellow finish
  • Fits 1984–1985 Toyota 4Runner and 1979–1985 Toyota Pickup models

Description

Overview

The Bilstein 4600 Series front shock, part number BIL24-184601, is a gas charged monotube shock with a 2 inch body diameter, boots included and a yellow finish. It is a direct fit for the 1984 to 1985 Toyota 4Runner in DLX and SR5 trim, and for the 1979 to 1985 Toyota Pickup in Base, DLX, DLX Turbo and SR5 trim.

The monotube gas pressure design has no external reservoir. Heat from the oil is carried out through the outer surface of the body, so the shock sheds heat more efficiently and keeps working as it warms.

A dividing piston inside the tube lets the oil expand as it heats, which stops foaming and loss of viscosity. This keeps the full damping force available at high temperatures, and the piston head is built so compression and rebound can be tuned separately.

The tube is formed by a special extrusion method that gives a tight peak-to-valley tolerance and consistent wall thickness. The seamless monotube provides both tube strength and heat dissipation, which supports a longer service life.

Key features

  • Front position
  • Gas charged monotube design
  • 2 inch body diameter
  • Boots included
  • No external reservoir
  • Yellow finish
  • Dividing piston and separate compression and rebound tuning

Older truck front suspension

On older trucks the front shocks often work hard because the steering linkage and springs have aged along with the body. A front shock that has lost damping lets the front end bounce over washboard and can make the steering feel vague at highway speed. Keeping the shocks in good shape supports tire contact and steering control.

Installation is easier when the mounting points are clean and the shock’s eyelets and bushings are in good condition. Check the boots before fitting, since a torn boot lets grit reach the rod seal. Front shocks are usually replaced in pairs so both sides control the suspension in the same way.

  • Inspect the steering box and linkage for play
  • Check front tire wear patterns
  • Replace bushings that show cracking

Specifications

Brand Bilstein
Part number BIL24-184601
Shock series 4600 Series
Position Front
Shock type Monotube, gas charged
Body diameter 2 inch
Reservoir None
Boots Included
Finish Yellow
Fitment Direct fit

Vehicle fitment

It fits 1984–1985 Toyota 4Runner models in DLX and SR5 trim, and 1979–1985 Toyota Pickup models in Base, DLX, DLX Turbo and SR5 trim.

The list does not include the Toyota 4Runner or Pickup from other years, the Tacoma, or the T100. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Front shocks are generally fitted in pairs. Check the length and mounts against the front springs and the steering components before installing.

What’s included

The product is one front monotube shock with boots, under part number BIL24-184601.

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1985DLX, SR5
Toyota Pickup1979–1985Base, DLX, DLX Turbo, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the BIL24-184601 fit a 1982 Toyota Pickup?

Yes. The list covers 1979 to 1985 Toyota Pickup models in Base, DLX, DLX Turbo and SR5 trim, so a 1982 model in one of those trims is listed. Confirm the trim before ordering.

Does this shock have a reservoir?

No. The shock is a monotube design with no external reservoir, and the oil and gas stay inside one tube body.

Are boots included?

Yes. The product is listed with boots included, which protect the rod seal from dirt once the shock is in place.

How often should front shocks be checked?

Check them at every tire rotation or oil change, and any time the front end feels loose. Look for oil on the body, a clunk over bumps, or cupping on the front tires. Replacing shocks in pairs keeps steering response even.
