Overview

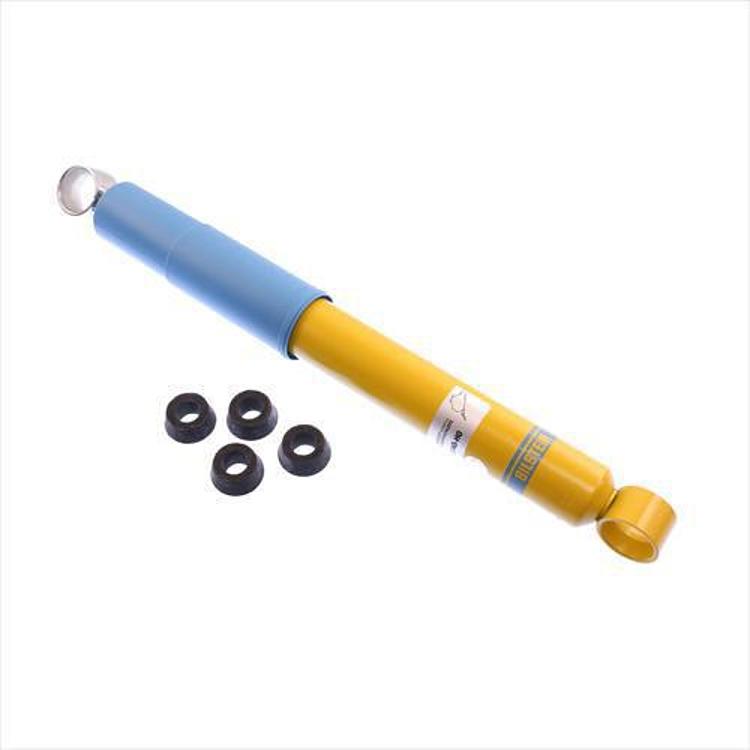

The Bilstein 46mm Monotube rear shock absorber, part number 24-011402, is a heavy duty gas charged damper that fits 1984–1989 Toyota 4Runner (DLX, SR5) and 1984–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo) models. It is a direct-fit rear unit with a 0 in lift/drop, so it replaces the stock rear shock rather than adding lift.
The monotube body holds gas pressure and damping oil in a single tube. Bilstein explains that a dividing piston allows the oil to expand as heat builds, reducing aeration and keeping damping more consistent on hot pavement and long grades. The seamless tube is extruded to hold tight peak-to-valley tolerance and even wall thickness, and the piston valving can be tuned for compression and rebound. It suits owners who need a rear damper for the Toyota models named here.
Key features
- Heavy duty gas charged monotube construction
- Dividing piston to manage oil expansion as temperatures rise
- Seamless extruded tube for consistent wall thickness
- Independently tunable compression and rebound damping in the piston head
- Fewer internal parts than conventional twin tube designs.
- Yellow finish
Choosing a replacement shock
A rear shock controls how the axle and body settle after a bump. When one wears out, the rear end often bounces longer after dips, feels floaty at highway speed, or gets noisy over washboard roads. Before buying a replacement, look at the body for an oil film, which usually means the seal has failed, and check the mounting eyes for cracks or worn bushings.
Rear shocks are usually replaced in pairs on the same axle so both sides damp evenly. On older trucks and 4Runners, springs, bump stops and bushings wear at a similar pace, so inspect them while the shock is off. Use stands rated for the vehicle’s weight during removal.
- Oil residue running down the shock body
- Worn or cracked mounting bushings
- Rear end bouncing after a single bump
- Uneven rear tire wear
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-011402 |
| UPC | 651860647647 |
| Shock series | 4600 Series |
| Size | 46mm monotube |
| Position | Rear |
| Charge | Gas charged |
| Finish | Yellow |
| Old part number | BILF4-B46-1140-H2 |
| Lift/drop | 0 in |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–1989 Toyota 4Runner in DLX and SR5 trims and the 1984–1995 Toyota Pickup in Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims.
Toyota 4Runner years from 1990 onward and Pickup years after 1995 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the lift/drop is 0 in, this shock is a like-for-like rear replacement and does not add lift. Use stands rated for the vehicle’s weight before working under it, and never rely on a jack alone.
What’s included
Boots and mounting hardware may differ from your existing parts, so compare them before ordering.
