Overview
The Bilstein 5165 Series 25-177473 is a remote reservoir shock absorber built for custom lifted trucks and SUVs. It is a universal fit, so match its length and mounting to your truck before installing it.
The remote reservoir adds oil volume, which helps cooling and damping sensitivity. The piston and shaft can travel farther, giving more wheel travel. The monotube body uses digressive valving that provides full damping from the start.
The Triple-C zinc finish is Bilstein’s zinc process. A reservoir mounting kit and detailed instructions come with the unit.
Key features
- Remote reservoir with added oil capacity
- Monotube design with digressive valving
- Floating dividing piston located in the reservoir
- Triple-C zinc finish
- Mounting kit and instructions included
Reservoir space and hose routing
The reservoir is the part of this design that needs the most planning. Because it is separate from the shock body, it has to be mounted in a stable spot that does not rub or shift. The hose should follow a smooth path with gentle curves, since a sharp bend or tight clamp can crack it over time.
Inspect the setup after the first few drives. Look for loosened brackets, hose contact on the frame and any oil film on the fittings. A reservoir shock that works well on a lifted truck stays put and keeps the hose free of abrasion through full suspension travel.
- Avoid sharp hose bends and tight clamp spots
- Check for contact with the frame and axle
- Keep the reservoir away from direct road spray
- Recheck the bracket after the first drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-177473 |
| Shock series | 5165 Series |
| Shock type | Reservoir, monotube |
| Gas charge | Gas charged |
| Finish | Triple-C zinc |
| Mounting kit | Included |
| Fitment type | Universal fit |
Vehicle fitment
This is a universal-fit shock, so do not assume it matches your truck by category alone. Match the installed length, mounting and reservoir clearance to your vehicle before ordering.
Measure your truck’s current mounting points and the space for the reservoir before buying. Confirm your vehicle’s year, model and trim before ordering.
What’s included

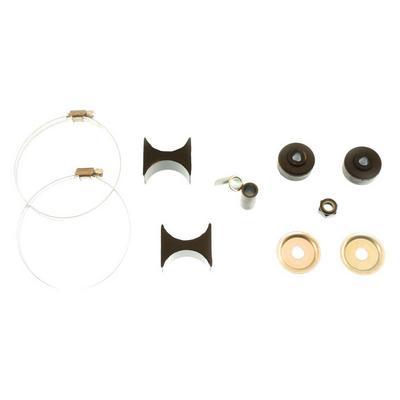

One reservoir shock with a reservoir mounting kit and detailed instructions.
