Overview

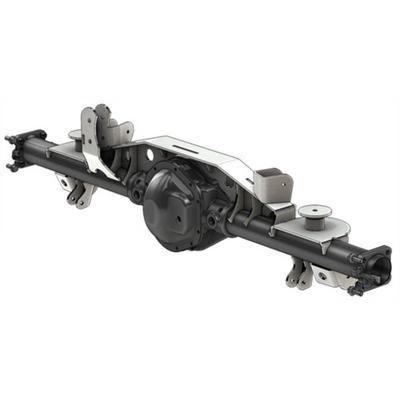

The Artec Industries TJ4418 is a rear axle swap kit for a Dana 44 rear axle, with a heavy duty truss and bracket system that reinforces the whole axle. It is for 1997 to 2006 Jeep Wrangler TJ models and 2004 to 2006 Wrangler LJ Unlimited models, and it is the JK2TJ rear axle swap kit.

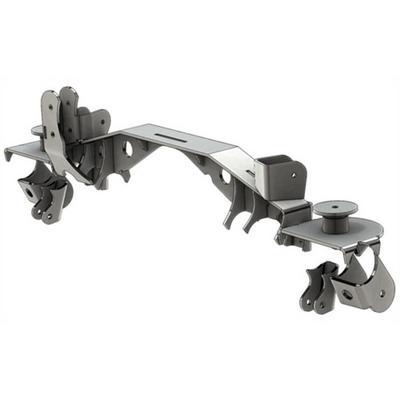

The 1/4 inch thick truss top has the link brackets built in, so the factory link, anti-sway bar and shock locations are provided with the truss. Artec says to tack weld the truss together and place it on the axle, and the other brackets then fit into place exactly where they need to be.
Key features
- 1/4 inch thick truss top that strengthens the axle housing
- Link brackets built into the truss shorten install time
- Brackets for the factory link, anti-sway bar and shock locations
- Designed for a Dana 44 rear axle; steering ram mount not included
- Heavy duty truss and bracket system that Artec says is designed to take serious abuse
Rear axle fitment checks
Rear axle work starts with confirming the housing. Check that the axle is a Dana 44 before welding, and measure the tube diameter against the listed 3-1/8 inch dimension. A housing that does not match can change where the brackets sit and how the truss loads the tubes.
The truss stiffens the housing but does not replace good driveline work. Check pinion angle and driveshaft length once the new rear components are in place, and confirm that the brake lines and wiring have room. Vibration after the swap often points to a driveline angle issue rather than a bad part.
Final welds should be done by a qualified welder, with the truss tacked and checked before full welding. After installation, inspect the welds and brackets for cracks, and recheck the bolts after the first few trail runs and periodically afterward.
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | A/ITJ4418 |
| Axle type | Dana 44 |
| Axle location | Rear |
| Steering ram mount | Without steering ram mount |
| Truss top thickness | 1/4 inch |
| Dana 44 tube diameter | 3-1/8 inch (D35 is 2.625 inch) |
Vehicle fitment
It fits 1997 to 2006 Jeep Wrangler TJ models, including 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, along with 2004 to 2006 Wrangler LJ Unlimited and Unlimited Rubicon models.
Wrangler JK, JL and JT models are not on this list, and the kit is for the rear axle position only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Attach the truss with tack welds first, then check the bracket positions on the Dana 44 before final welding. Check that the axle housing is a Dana 44 before welding, since the brackets are designed for that housing.
Final welding should be done by a qualified welder, because the truss and brackets are welded to the axle housing.
What’s included
A rear axle truss and bracket system with brackets for the factory link, anti-sway bar and shock locations.
Not included: a steering ram mount, since this kit is listed without one.
