Overview

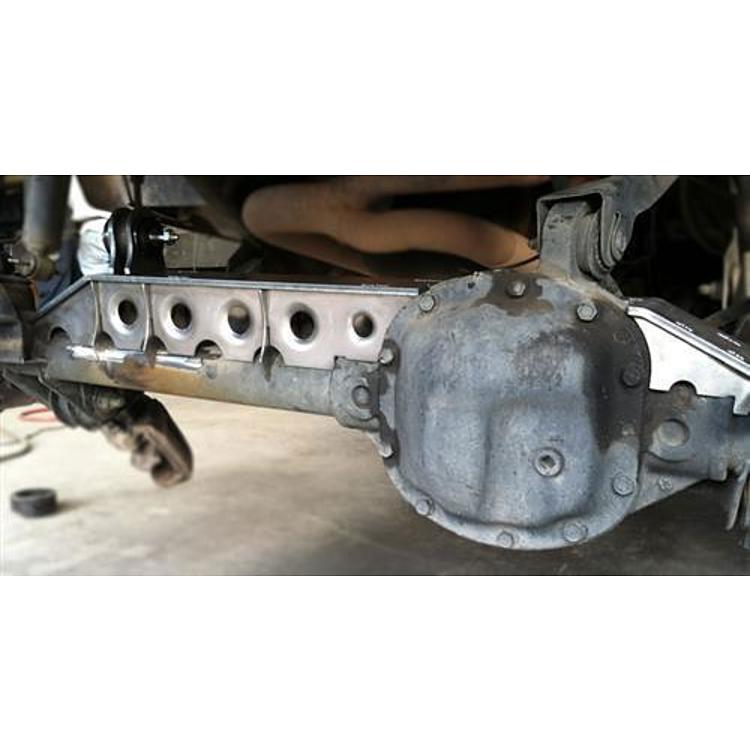

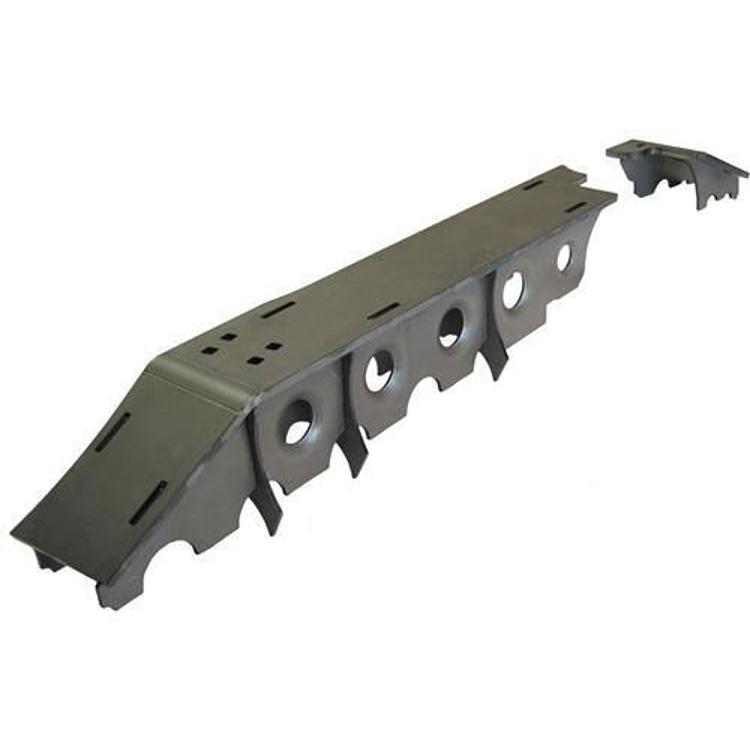

The Artec Industries TJ3001 is a 1/4 inch truss for the front Dana 30 axle of a 1997-2006 Jeep Wrangler TJ or 2004-2006 Jeep Wrangler LJ. It reinforces both axle tubes, not only the long tube, and it is a light weight, heavy duty truss system.
The truss top is 1/4 inch thick with 10 gauge gusseting, and its precision cut and formed components are intended for a hassle-free installation. It is the truss only, so link joints and keyed tabs are separate items.
Key features
- 1/4 inch thick truss top
- 10 gauge gussets strengthen both axle tubes
- Precision cut and formed components intended for a hassle-free installation
- Heavy duty construction with a light weight design
- Designed for the front Dana 30 axle on TJ and LJ Wranglers
- Key hole slots on top of the truss must be filled with weld
Link joints and the truss
A front truss is only part of the link system. The joints, bushings and keyed tabs connect the truss to the axle and the frame, and they take the forces that move the axle through its travel. Before ordering, confirm that the link joints you plan to use match the truss mounting points, since mismatched joints can bind or wear quickly.
Truss work also changes how the axle is positioned. Once the truss is welded, the pinion angle and link lengths should be checked before the vehicle goes back on the ground. Plan to inspect the joints and welds after the first trail outings, and replace any worn bushings before they allow the axle to shift.
- Match joints to the truss mounting points
- Check pinion angle after welding
- Inspect joints after early trail use
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | TJ3001 |
| UPC | 816791024213 |
| Axle type | Dana 30 |
| Axle location | Front |
| Truss top thickness | 1/4 inch mild steel |
| Gussets | 10 gauge |
| Steering ram mount | Without steering ram mount |
| Fitment | Direct fit |
Vehicle fitment
The manufacturer fitment list covers the 2004–2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.
Later Wrangler generations such as the JK or JL are outside this use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation needs general welding and fabrication skills. Fill the key hole slots on top of the truss with weld, and use this truss only if the passenger side upper control arm is not being connected or the factory bracket is being reused.
What’s included
The truss only.
Not included: bushings, joints and keyed tabs, which are needed for the link connections.
