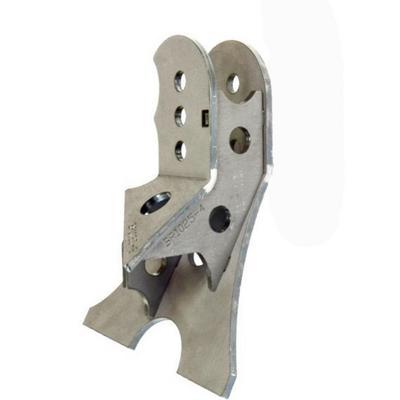

Artec Industries Adjustable Panhard Mount for D60 Truss – BR1025

Artec Industries

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries A/IBR1025 adjustable panhard mount for Dana 60 axles with Artec truss
  • 3 inch tube diameter, single mount
  • Holes at 7, 8 and 9 inches from axle centerline
  • Designed for joints with a 1.75 inch mounting width
  • Welding required for installation

Description

Overview

The Artec Industries A/IBR1025 is an adjustable panhard mount for Artec truss systems on Dana 60 axles. A panhard mount, also called a track bar mount, controls side-to-side axle movement under the vehicle. This single mount has a 3 inch tube diameter and is built to match the style and strength of the Artec truss it welds to.

The mount is intended for 3-link and 4-link suspension layouts. Its geometry and clearances are planned for other aftermarket parts such as hydraulic rams and coilovers. It is designed for joints with a 1.75 inch mounting width, including 3/4 inch and 7/8 x 3/4 inch rod ends with high misalignment spacers, and for 1985 to 1991.5 Ford 60 axles with an Artec truss.

Key features

  • Three holes at 7, 8 and 9 inches from axle centerline for suspension tuning
  • Geometry and clearances planned for hydraulic rams and coilovers
  • Style and strength matched to the Artec truss
  • Designed for joints with a 1.75 inch mounting width
  • Single mount with 3 inch tube diameter

Setting hole position and clearance

A panhard bar controls side-to-side axle movement, so the mount location changes how the axle centers under load. Moving the bar to a different hole shifts that geometry. Use the holes as a tuning tool, and mark your choice before welding so the layout stays consistent when the truss is positioned.

Clearance around the rams and coilovers should be confirmed with the parts installed, not on paper. Check the bar’s arc through full travel, and make sure it does not contact the coil buckets, brake lines or frame. Small changes in joint spacing can make a noticeable difference in the way the axle tracks.

After the install, check the rod ends for play and the welds for cracks. Retighten the joint hardware after the first few drives, and inspect the mount after rough trail use. A panhard mount that loosens or cracks can let the axle shift sideways, so treat any movement as a reason to inspect right away.

Specifications

Brand Artec Industries
Part number A/IBR1025
Type Panhard mount, adjustable
Quantity Single
Tube diameter 3 inches
Mounting width 1.75 inches
Hole positions 7, 8 and 9 inches from axle centerline
Axle compatibility Dana 60 with Artec truss

Vehicle fitment

This mount is designed for Dana 60 axles running an Artec truss, including 1985 to 1991.5 Ford 60 axles. Its fit depends on matching the truss and axle geometry, so confirm both before welding.

Welding is required, so this is not a bolt-on bracket. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Welding is required, and the mount is meant to be welded to the Artec truss. Pick the 7, 8 or 9 inch hole position to tune the suspension, and have a qualified welder complete the joint. Before welding, test the fit of the rod ends on the 1.75 inch mounting width and confirm clearance around the hydraulic rams and coilovers.

What’s included

One adjustable panhard mount, sold as a single unit.

Not included: Rod ends, high misalignment spacers and the Artec truss need to be sourced separately.

Questions & Answers

Will the A/IBR1025 fit a Dana 60 axle?

It is designed for Dana 60 axles with an Artec truss, including 1985 to 1991.5 Ford 60 axles. Confirm that your axle and truss match before welding.

What hole positions does this panhard mount offer?

It has three holes at 7, 8 and 9 inches from axle centerline, which lets you fine tune the suspension. Choose the position that suits your geometry and your joint spacing.

What tube diameter and mounting width does it use?

The tube diameter is 3 inches. It is designed for joints with a 1.75 inch mounting width, such as 3/4 inch and 7/8 x 3/4 inch rod ends with high misalignment spacers.

How do I choose between the 7, 8 and 9 inch holes?

Pick the hole that gives the side-to-side control you want at your ride height and joint spacing. Measure rod end and spacer positions first, then test the fit before welding.

Does a panhard mount need regular inspection?

Yes. Check the rod ends and spacers for play, look for cracks at the weld, and tighten the joint hardware after the first few trail runs.
