Artec Industries JK2TJ Front Axle Swap Kit with Truss – TJ3022

Artec Industries

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front swap kit for Dana 30 axles with 1/4 inch thick truss and built-in link brackets
  • Part number A/ITJ3022; fits 1997 to 2006 Jeep Wrangler TJ and 2004 to 2006 Wrangler LJ Unlimited
  • Brackets for factory link, anti-sway bar, tracbar and shock locations
  • Steering ram mount not included

Description

Overview

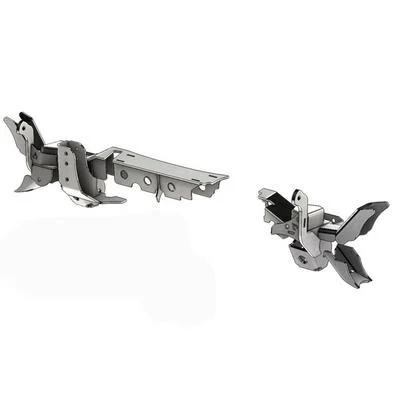

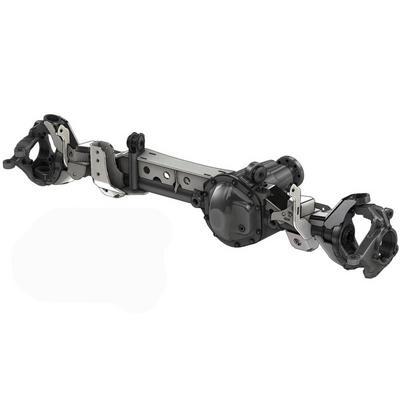

The Artec Industries TJ3022 is the JK2TJ front axle swap kit, a heavy duty truss and bracket system for a Dana 30 front axle. It is for 1997 to 2006 Jeep Wrangler TJ models and 2004 to 2006 Wrangler LJ Unlimited models, and it reinforces the entire axle.

The 1/4 inch thick truss top has link brackets built in, so the factory link, anti-sway bar, tracbar and shock locations come with the truss. Place the truss on the axle, and the other brackets fit into position exactly where they need to be.

Key features

  • 1/4 inch thick truss top that reinforces the axle and carries the link brackets
  • Factory link, anti-sway bar, tracbar and shock locations built into the bracket system
  • Link mounts built into the truss, which Artec says avoids hours of trial and error compared with other bracket systems
  • Built for Dana 30 front axles

Fitment and welding checks

A front swap is a fit-first job. Place the truss on the Dana 30 axle, then confirm each bracket lines up with the factory link, anti-sway bar, tracbar and shock locations. Make small adjustments before any final welding, since the brackets are only as accurate as their placement.

Steering setup needs attention with a front axle swap. A steering ram mount is not part of this kit, so plan that component separately if your build calls for one. Check the tie rod and drag link geometry once the axle is installed and confirm the wheel travel is not limited by the new parts.

Routine inspection matters after the swap. Check the link brackets, shock mounts and tracbar attachments for cracks or loose hardware after rough trail use. Retighten fasteners on the first few drives, and recheck alignment before the vehicle sees regular road use.

Specifications

Brand Artec Industries
Part number A/ITJ3022
Axle type Dana 30
Axle location Front
Steering ram mount Without steering ram mount
Truss top thickness 1/4 inch

Vehicle fitment

Fits 1997 to 2006 Jeep Wrangler TJ models, including 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. It also fits 2004 to 2006 Wrangler LJ Unlimited and Unlimited Rubicon models.

Wrangler YJ, JK, JL and JT models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Place the truss on the Dana 30 axle and confirm the brackets sit at the factory link, anti-sway bar, tracbar and shock locations before final welding or fastening. Have a qualified welder complete any welding on the axle.

What’s included

One JK2TJ front axle swap kit, consisting of a truss and bracket system with link brackets for the factory link, anti-sway bar, tracbar and shock locations.

Not included: a steering ram mount, since this kit is listed without one.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the TJ3022 fit a 1997 to 2006 Jeep Wrangler TJ?

Yes. It fits 1997 to 2006 Jeep Wrangler TJ models, including 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. Make sure your year, model and trim fit before ordering.

Does this kit include a steering ram mount?

No. A steering ram mount is not part of this kit, which is built without one. The truss provides the factory link, anti-sway bar, tracbar and shock locations.

What axle does the TJ3022 use?

It is built for a Dana 30 front axle. The kit uses a heavy duty truss and bracket system designed to reinforce the entire axle, with link brackets for the factory locations.

Does a TJ front axle swap need new track bar or steering parts?

Often yes. Track bar geometry and steering components should be checked against the new axle location, and a steering ram mount would need to be sourced separately since this kit is built without one. Measure before final welds.

How do I confirm the truss sits correctly before welding?

Place the truss on the axle, then check each bracket against the factory link, anti-sway bar, tracbar and shock locations. Make small adjustments, and re-check all positions before final welding.
