Overview

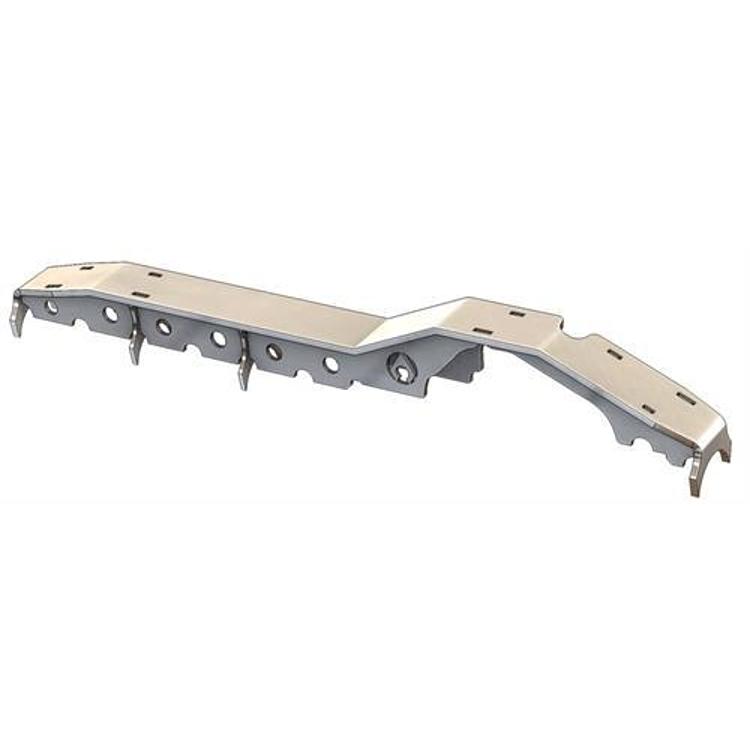

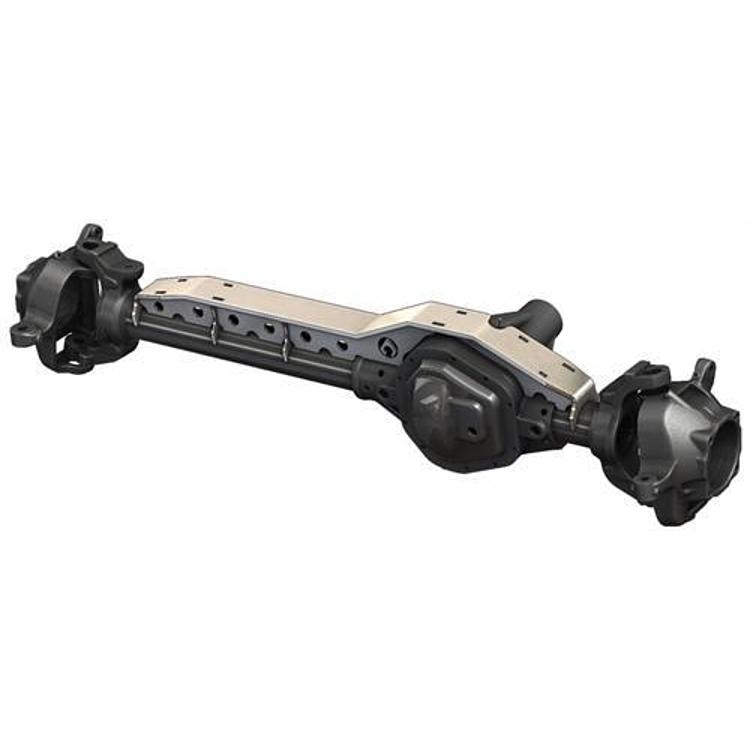

The Artec Industries TR6055 is a low profile front truss for the 05-Current Ford Super Duty axle, a coil sprung front axle with a Ford kingpin. It is built from 3/8 inch mild steel for the truss top and 1/4 inch mild steel for the gussets.

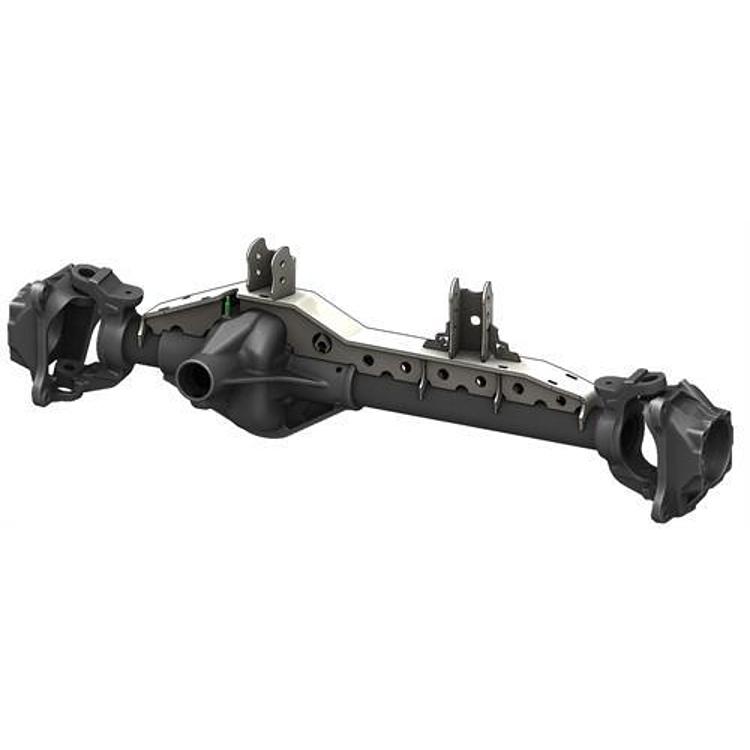

The truss top bends around the differential, which gives more clearance in that area. The shape suits vehicles that need more uptravel or a lower center of gravity, and the truss is clearanced for the differential breather tube.
Key features
- Super low profile design for oil pan clearance
- Truss top bends around the differential
- Allows more uptravel
- 3/8 inch mild steel truss top
- 1/4 inch mild steel gussets with interlocking design for strength and easy assembly
- Clearanced for the differential breather tube
Before you install a front truss
A front truss ties the two axle tubes and the differential housing together, so loads from hard articulation and braking are spread across a wider area. On a coil sprung front axle, the truss is the main piece that keeps the housing from twisting under power.
Because the truss sits close to the oil pan and differential, measure clearance with the axle at full droop and full compression before welding anything. Check that the steering components, brake lines and any breather hose route cleanly over the new top plate.
- Dry-fit the truss with the axle installed before tacking anything
- Check weld seams and gussets after the first few trail runs
- Keep the breather tube routed away from the truss edge
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | TR6055 |
| UPC | 816791026613 |
| Axle type | Ford kingpin |
| Axle location | Front |
| Suspension | Coil sprung |
| Truss top thickness | 3/8 inch mild steel |
| Gusset thickness | 1/4 inch mild steel |
| Steering ram mount | Without steering ram mount |
| Differential clearance | Breather tube clearance |
Vehicle fitment
The truss is made for a 05-Current Ford Super Duty front axle that is coil sprung. Confirm fit for your vehicle’s year, model and trim before ordering, and check that the axle has a Ford kingpin and coil springs.
Confirm your vehicle’s year, model and trim before ordering, and check that the axle has a Ford kingpin and coil springs.
What’s included
The kit covers the truss with its 1/4 inch gussets and clearances. Check the package contents against your installation before starting.
