Artec 14 Bolt Rear Axle Truss – TR1401

Artec Industries

Shop Artec Industries Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 14 bolt rear axle truss with 3/8 inch thick top
  • 1/4 inch thick gussets
  • Link joints about 8 inches from axle centerline
  • SRW truss just under 51 1/4 inches
  • Fitment not listed by vehicle

Description

Overview

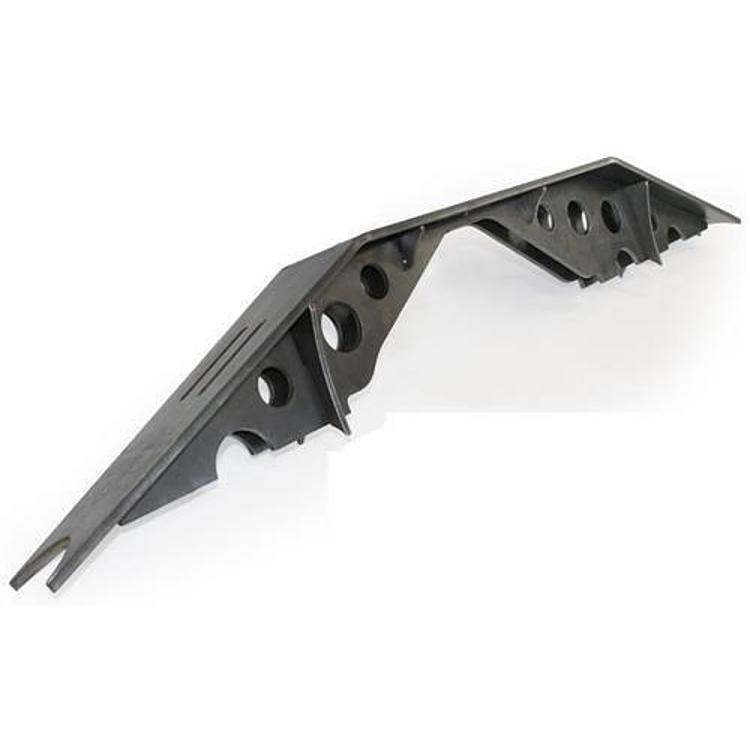

The Artec Industries TR1401 is a 14 bolt rear axle truss that reinforces the full length of the axle and gives the upper links a flat mounting surface. It is a heavy duty system with a 3/8 inch thick truss top and 1/4 inch thick gussets.

The truss is low profile so link joints can sit at a favorable geometry, about 8 inches from the axle centerline. Because it spans the whole axle, it reinforces both tubes, not only the link mounting area.

Key features

  • 3/8 inch thick truss top
  • 1/4 inch thick gussets for the link mounting surface
  • Low profile design for link joint geometry
  • Link joints about 8 inches from axle centerline
  • Spans the full length of the axle to reinforce both axle tubes
  • SRW truss length just under 51 1/4 inches

Link geometry and axle length

A rear truss does its work through the link mounts, so the geometry of the links matters as much as the truss itself. Placing the joints at the right distance from the axle centerline controls how the axle rotates under braking and under articulation. Measure the planned mount positions on the axle before welding, and recheck them after the truss is tacked in place.

Because the truss is a universal fit for 14 bolt rear axles, the main job is matching the truss length to the housing. Check the length carefully, since an overlong or short truss can throw off the link layout. Plan the upper links, joints and mounts before fabrication starts, so that the finished axle is set up for the geometry you want.

  • Measure mount positions before welding
  • Match truss length to the housing
  • Plan upper links before fabrication

Specifications

Brand Artec Industries
Part number TR1401
UPC 816791024466
Axle type 14 bolt
Axle location Rear
Truss top thickness 3/8 inch
Gusset thickness 1/4 inch
Link joint distance About 8 inches from axle centerline
SRW truss length Just under 51 1/4 inches
Steering ram mount Without steering ram mount

Vehicle fitment

It is a universal fit for 14 bolt rear axles and is not tied to one Jeep. Confirm your axle is a 14 bolt and check the truss length against your housing before fabrication.

Confirm your axle is a 14 bolt and check the truss length against your housing before fabrication. Confirm your vehicle’s year, model and trim before ordering.
