Artec Dana 60 Modular Rear Truss – TR6061

Artec Industries

Shop Jeep Wrangler TJ Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 60 modular rear truss for one-ton swaps in TJ or YJ Wranglers
  • Part number TR6061 from Artec Industries
  • 3/8 in thick truss top and 1/4 in thick gussets
  • Flat surface for mounting upper links
  • Without steering ram mount

Description

Overview

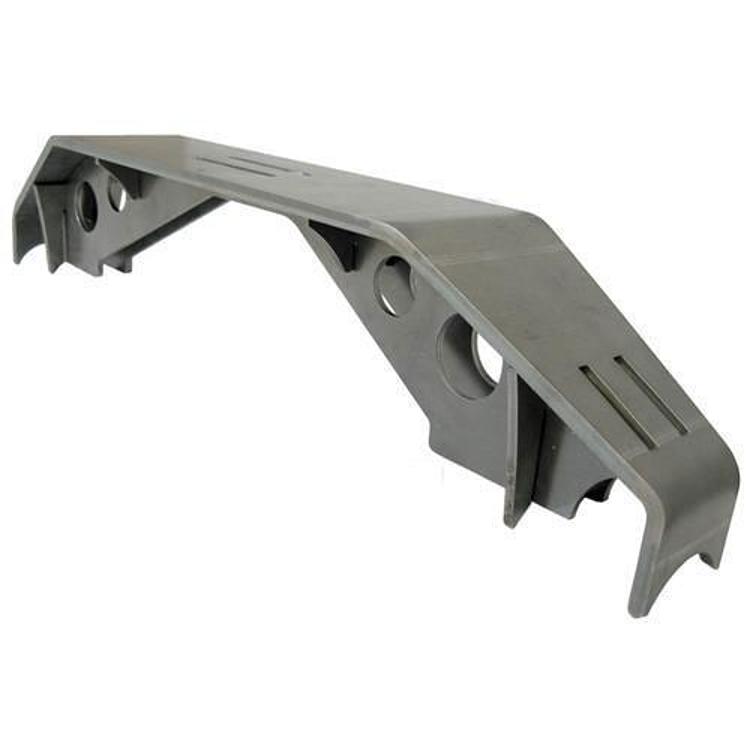

The Artec Industries TR6061 is a Dana 60 modular rear truss for TJ and YJ Wrangler one-ton axle swaps. It reinforces a Dana 60 rear axle and adds a flat surface for mounting upper links.

The design is a heavy duty truss system for rear axles. A 3/8 in thick truss top and 1/4 in thick gussets work together to strengthen both the axle and the link mounting surface.

Key features

  • Modular truss for Dana 60 rear axles
  • Flat top surface for mounting upper links
  • 3/8 in thick truss top
  • 1/4 in thick gussets that strengthen the axle and link mount
  • Heavy duty design that Artec describes for axle reinforcement

Planning a one-ton rear swap

Moving a Dana 60 into the rear of a lighter Wrangler changes the load path, so the truss, axle housing and frame mounts all need to work together. Gearing, driveshaft angles and brake sizing usually need attention as well, since the heavier axle changes how the drivetrain and stopping system behave. Planning these items before cutting or welding avoids rework later in the build.

Once the swap is running, check the truss welds, upper link ends and axle housing for signs of stress after the first few trips. Look for cracks, loose fasteners and clunking over bumps. Driveshaft vibration at highway speed often points to an angle that needs correction. Keeping a record of these checks makes it easier to spot changes early, especially on a rig that sees rough use.

Specifications

Brand Artec Industries
Part number TR6061
UPC 816791024633
Axle type Dana 60
Axle location Rear
Steering ram mount Without steering ram mount
Truss top thickness 3/8 in
Gusset thickness 1/4 in

Vehicle fitment

It is made for one-ton swaps at the rear of TJ and YJ Wranglers. The TJ falls within 1997 to 2006 and the YJ within 1987 to 1995.

It does not cover the LJ, JK, JL or JT, or other axle applications. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mounting the truss is fabrication-level work, since it attaches to the axle housing and supports the upper links. Check upper link angles and clearance once the truss is in place. Support the vehicle on stands before working under the axle.

What’s included

The truss itself.

Not included: The axle, the upper links and their mounting hardware are separate items.

SKU: A/ITR6061 Category:

Specification

Shipping weight 28.10 lbs
Package dimensions 36.00 × 10.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All
Jeep Wrangler (YJ) likely fits1987–1995All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Artec TR6061?

The Artec Industries TR6061 is a Dana 60 modular rear truss. It reinforces a Dana 60 rear axle, gives upper links a flat mounting surface, and is made for one-ton swaps in TJ and YJ Wranglers.

Does the TR6061 fit a TJ Wrangler?

Yes, the TJ is covered for a one-ton swap at the rear, along with the YJ. Confirm the axle and year before fitting, since fit depends on your axle housing.

Does the truss include mounting hardware?

No hardware is included. Plan for the bolts, brackets and upper links separately, and check the fit of the truss to your axle housing before starting the swap.

Do upper links need to be upgraded with a truss like this?

Often they should be inspected at least, since upper links carry the forces the truss is designed to support. Worn ends or bent links can shift loads and cause early wear. Check the links, bushings and mounting points while the truss is being installed.
