Artec Industries APEX Front Axel Truss – JL4501

Artec Industries

Shop Jeep Gladiator Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits JL Rubicon Dana 44 M210 front axles and all JT front axles
  • APEX peaked top adds rigidity and removes long weld seams
  • 1/8 inch mild steel, listed at 6 lbs
  • Built for tires up to 40 inch on stock JL axles
  • Minimum 1.5 inch lift recommended; welding required

Description

Overview

The Artec Industries APEX front axle truss, part number JL4501, is a welded truss for the Jeep Wrangler JL Rubicon with the Dana 44 M210 front axle, and for all JT front axles on the Jeep Gladiator. It reinforces the axle tube and the differential area so the factory axle can take more punishment than it was built for.

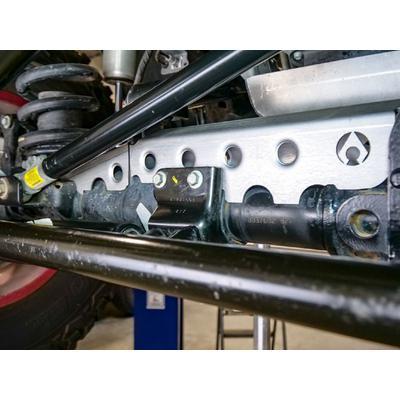

The key feature is the peaked top. The peak adds rigidity over a flat top truss, saves weight compared with a thicker flat top, and reduces long weld seams because those seams are bent rather than welded. The peaked shape carries under the coil perches, forming a complete truss from end to end of the axle.

Key features

  • APEX peaked top gives more rigidity than a flat top truss design

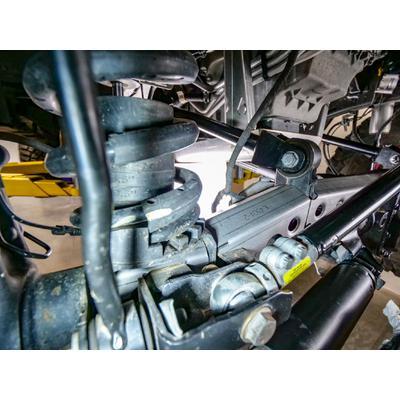

  • Peaked structure continues under the OEM coil buckets for end-to-end axle reinforcement

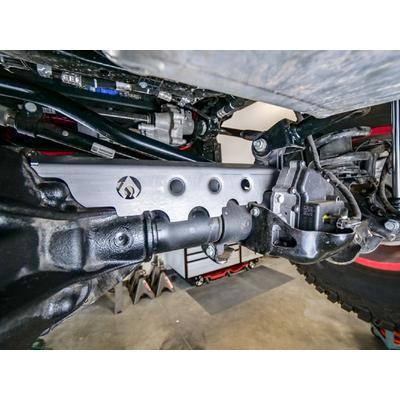

  • Bridges the front axle disconnect (FAD/CAD), described by Artec as one of the weakest sections of the front axle

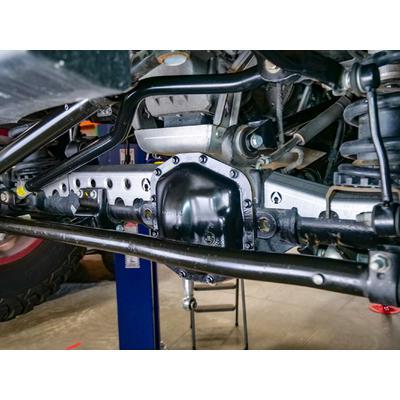

  • Low profile design that does not go over the differential, for use with slight lifts
  • Bent long seams and CNC laser cut dimpled holes reduce welding and weight
  • Contours the cast steel differential and FAD, and can be welded with a normal MIG welder

Lift and tire planning

A truss is only one part of a front axle upgrade, and tire size changes how much stress the axle sees. Larger tires increase leverage on the axle and the steering, so plan the lift, bump stops and steering clearance together. Check clearance at full steering lock with the tires installed.

The peaked top helps the truss resist bending, but the axle still needs correct alignment and sound joints. Inspect the axle tubes, differential area and welds after rough use, and watch for signs of cracking near the truss ends. Keep the bump stops in good condition so the axle does not bottom out hard.

Front axle parts such as ball joints, tie rods and driveshaft U-joints often wear faster with bigger tires. Check their condition during routine service and replace worn pieces before they fail on the trail. Confirm the steering components have room to move once the truss is in place.

Specifications

Brand Artec Industries
Part number A/IJL4501
Material 1/8 inch mild steel
Weight 6 lbs
Tire clearance Up to 40 inch tires on stock JL axles
Minimum lift 1.5 inch recommended
Bump stop extension At least 1/2 inch required

Vehicle fitment

Fits the 2018 to 2026 Jeep Wrangler JL, including Rubicon (2-door), Unlimited Rubicon (4-door), Unlimited Rubicon 392 and Unlimited Rubicon 392 (4-door). It also fits the 2020 to 2026 Jeep Gladiator JT in trims including Sport, Sport S, Willys, Willys Sport, Mojave, Overland and Rubicon.

Vehicles outside the JL and JT generations, such as the JK Wrangler, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The truss is welded to the axle, and it can be welded with a normal MIG welder using moderate pre-heating and post-heating. Some grinding and fitment may be needed because every axle varies slightly. Artec recommends at least a 1.5 inch lift and a bump stop extension of at least 1/2 inch, and says to check clearance before installing.

It has not been tested on non-US models or right-hand-drive axles. Welding to the cast center section requires general welding and fabrication skill, and it should be done only by a competent welder.

What’s included

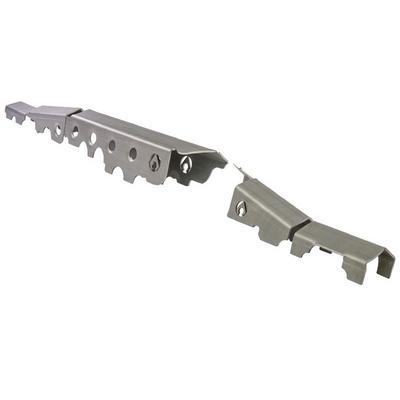

One APEX front axle truss, part number A/IJL4501, with long seams already bent. It is ready to weld once dropped onto the axle.

Not included: the lift and the bump stop extension are separate purchases.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, Altitude, High Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport
Jeep Wrangler (JL)2018–2026Rubicon (2-Door), Unlimited Rubicon (4-Door), Unlimited Rubicon 392, Unlimited Rubicon 392 (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the APEX truss JL4501 fit a Jeep JL Rubicon?

Yes. It fits the 2018 to 2026 Jeep Wrangler JL, including Rubicon 2-door and Unlimited Rubicon models, and is made for the JL Dana 44 M210 front axle used on Rubicon.

What lift does it need?

The truss is intended for vehicles with at least minor lifts. A 1.5 inch minimum lift is needed, and a bump stop extension of at least 1/2 inch is required.

Can it be installed without welding?

No. The truss is welded to the axle, using a normal MIG welder with moderate pre-heating and post-heating, and welding should be done by a competent welder.

Will it clear 40 inch tires?

It is designed for tires up to 40 inch on stock JL axles. Some grinding and fitment may still be required, so check clearance before installing.

Does an APEX truss replace skid plates?

No. The truss protects the axle, while skid plates guard the differential and steering components from rock strikes. Check whether your build has a skid plate before heavy trail use.

How do I check the welds after installation?

Look over the seams after each trail session for hairline cracks, especially near the coil buckets and the differential area. Re-weld any cracks promptly, and check that bolts and bump stops remain secure.
