Advance Adapters GM V8 Bellhousing for GM NV4550 – 712576

Advance Adapters

Shop Advance Adapters Engine Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Advance Adapters GM V8 bellhousing for GM NV4550 transmissions, part 712576
  • Stock GM bolt pattern and 5.125 index diameter
  • Includes modified bearing retainer and clutch release arm
  • Ball pivot installed and clutch arm boot included
  • No vehicle fitment listed beyond 1996-up GM with NV4550

Description

Overview

The Advance Adapters GM V8 bellhousing, part 712576, has the stock GM bolt pattern and is made for the GM NV4550 transmission. It has a 5.125 index diameter and is built for 1996-up GM vehicles with that transmission.

The kit comes with its own dust cover plate, modified bearing retainer, special pilot bearing and clutch release hardware. All parts are supplied as a complete set with instructions.

Key features

  • Stock GM bolt pattern
  • 5.125 index diameter
  • Modified bearing retainer included
  • Ball pivot installed and clutch arm boot included
  • Additional mounting hardware and instructions included

Clutch release basics

The clutch release system is what lets you disengage the drivetrain, so its condition matters once the adapter is in place. Check that the release arm pivots smoothly on the ball pivot and that the boot seals fully against the bellhousing. A stiff arm or torn boot lets dirt in and makes the pedal feel heavy over time.

Many builders replace the clutch disc, pressure plate and release bearing at the same time as the adapter. Doing so avoids a second teardown and keeps the new alignment from being disturbed. Clean mating surfaces before bolting the bellhousing so the fit stays true, and inspect the flywheel for heat cracks or scoring.

  • Check pedal feel after bleeding the hydraulics
  • Keep the dust cover plate sealed against road grime
  • Replace a torn clutch arm boot promptly

Specifications

Brand Advance Adapters
Part number 712576
UPC 70000002180
Index diameter 5.125
Bellhousing depth 6 and 5/16
Bolt pattern Stock GM
Transmission GM NV4550

Vehicle fitment

It is built for 1996-up GM vehicles with an NV4550 transmission. Compare your transmission and bellhousing pattern against the kit before ordering.

Confirm that your vehicle has an NV4550 transmission and a 5.125 index diameter. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The ball pivot arrives installed. Use the included instructions when fitting the clutch release arm, clutch arm boot and dust cover plate, and check the release arm sits freely before final assembly.

What’s included

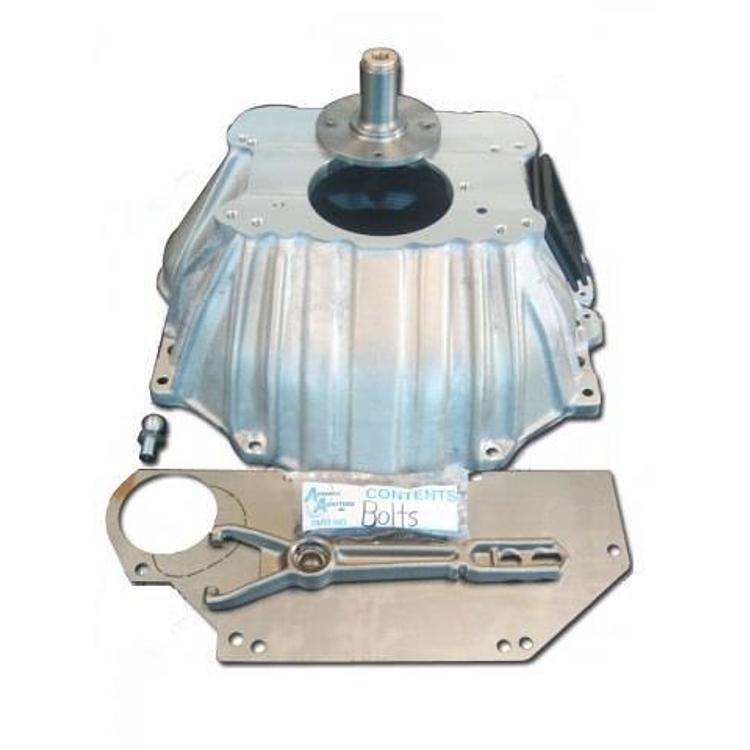

The kit includes one adapter bellhousing, one dust cover plate, one modified bearing retainer, one special pilot bearing, one clutch release arm, one ball pivot (installed), one clutch arm boot, additional mounting hardware and instructions.

Not included: the NV4550 transmission and the clutch and flywheel parts.

SKU: ADV712576 Category:

Specification

Shipping weight 30.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which transmission does part 712576 fit?

It is a GM V8 bellhousing for the GM NV4550 transmission. It is built for 1996-up GM vehicles with that transmission and has a 5.125 index diameter.

Is the bolt pattern stock GM?

Yes. The bellhousing has the stock GM bolt pattern and is 6 and 5/16 deep, so check that it matches your engine and transmission before ordering.

What comes in the box?

The kit includes one adapter bellhousing, one dust cover plate, one modified bearing retainer, one special pilot bearing, one clutch release arm, one installed ball pivot, one clutch arm boot, extra mounting hardware and instructions.

How often should the clutch release bearing be replaced?

There is no fixed interval, so replace it based on condition. Change it when the bearing is noisy, rough or runs hot under light pedal pressure. Replacing it alongside the disc and pressure plate is the usual approach during a clutch service.
